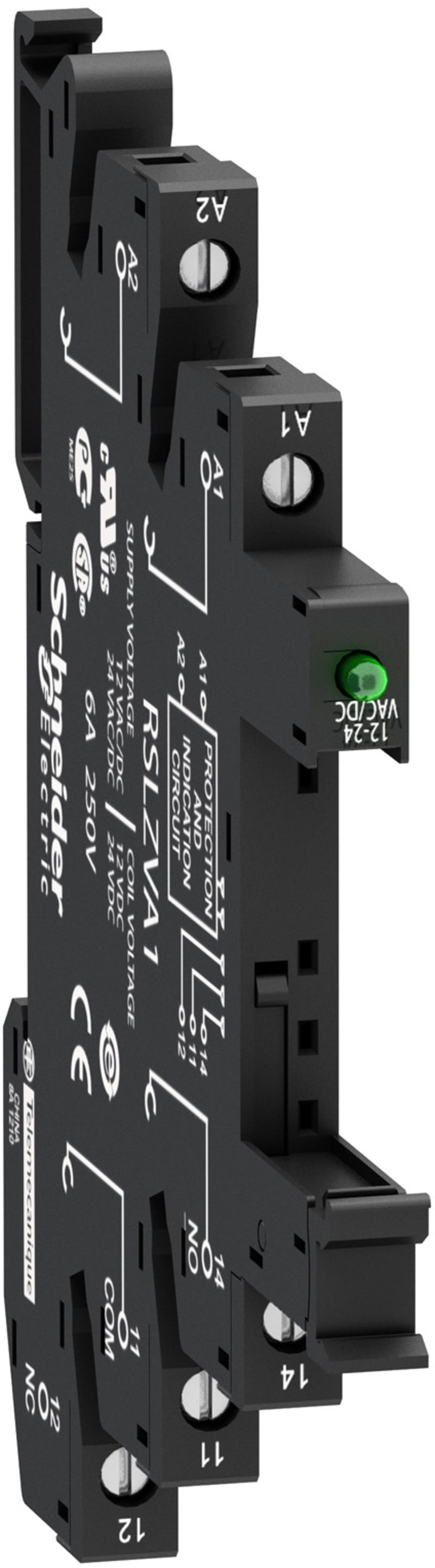

Schneider Electric Screw socket equipped with LED and protection circuit, 12...24 V AC/DC RSLZVA1

Schneider Electric RSLZVA1 Zelio Slimrelé - Plinth 12-24VAC/DC.

Manufacturer part number (MPN)

RSLZVA1

EAN / GTIN

3606480078026

Sales unit

pcs

Package quantity

10 pcs

Voltage

12-24 V AC

Range of product

Harmony Electromechanical Relays

Device short name

RSLZ

Product or component type

Socket

Device presentation

Basic element

Product compatibility

Plug-in relay RSL with 1 C/O contact at 12 V DC; Plug-in relay RSL with 1 C/O contact at 24 V DC

Contacts type and composition

1 C/O

[Ith] conventional free air thermal current

6 A

Switching voltage

12 V AC/DC; 24 V AC/DC

Rated operational voltage limits

11.4...14.4 V; 21.6...28.8 V

[Ue] rated operational voltage

< 300 V AC

Group of product

RSL_CON_12-24

Shape of pin

Flat

Contact terminal arrangement

Separate

Connections - terminals

Connector, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Connector, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) solid without cable end

Compatibility code

RSLZ

Tightening torque

< 0.4 N.m for M2.5 screw(s)

Fixing mode

Plastic compression spring (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

3.6 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

CAD overall width

6.2 mm

CAD overall height

78.6 mm

CAD overall depth

95 mm

Product weight

0.023 kg

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984; UL 508

Product certifications

CSA; GOST

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…70 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

300

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Width

6.2 mm

Height

78.6 mm

Depth

95 mm

With detachable clamps

No

Function extension possible

No

Type of electric connection

Screw connection

Number of pins

5

HS Code

8536.90
