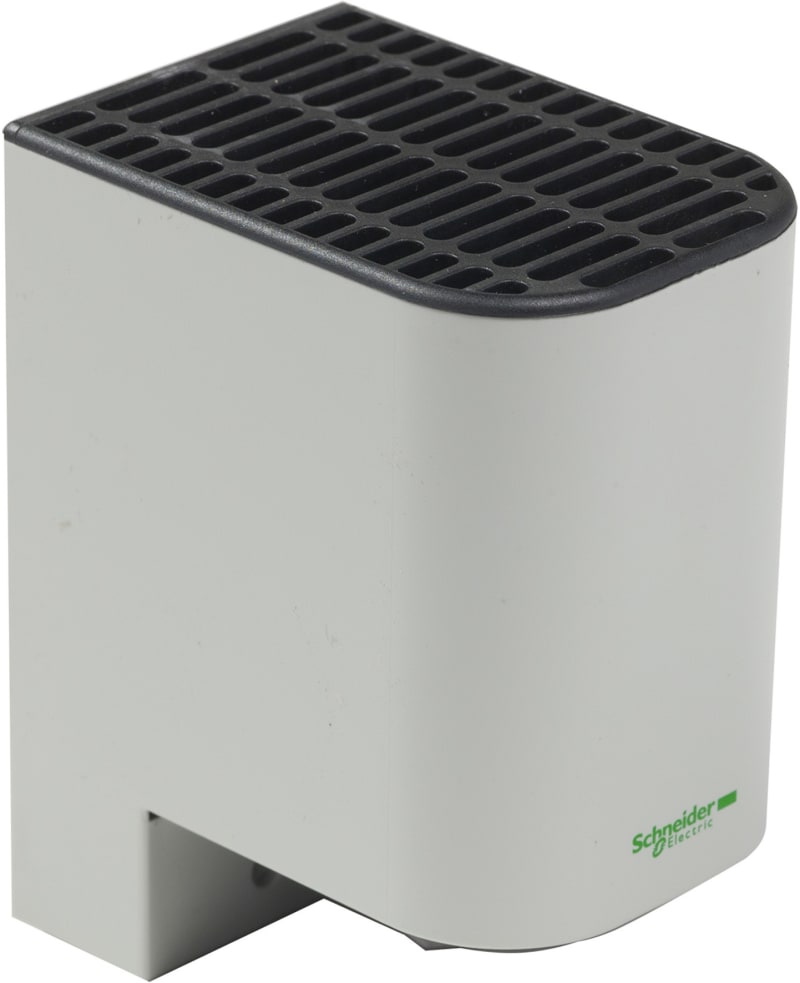

Schneider Electric ClimaSys PTC heating resistance 100W,110-250V insulate NSYCR100WU2C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR100WU2C Heating element 102W 110-250V AC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR100WU2C
- EAN / GTIN
- 3606480152320
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Voltage
- 110-250 V
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 100 W
- Input voltage
- 120...240 V AC 50/60 Hz
- Electrical connection
- 4 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Electrical insulation class
- Class II
- Product certifications
- UL; VDE
- Material
- Body: extruded aluminium; Cover: plastic
- Height
- External: 150 mm
- Width
- External: 60 mm
- Depth
- External : 90 mm
- Condition of use
- Electrical protection is needed; Heaters must be installed with a thermal controller; Air sealed enclosure
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Number of Units in Package 3
- 300
- Country of origin
- DE
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 100 W
- Operating voltage AC 50 Hz
- 110–250 V
- Operating voltage AC 60 Hz
- 110–250 V
- Continuous heating power at 10 °C
- 100 W
Standards & Compliance
- HS Code
- 8516.80
Cross References
- EAN 3606480152320
- SAP 1000089003
- Code 8581305
Product Documentation
