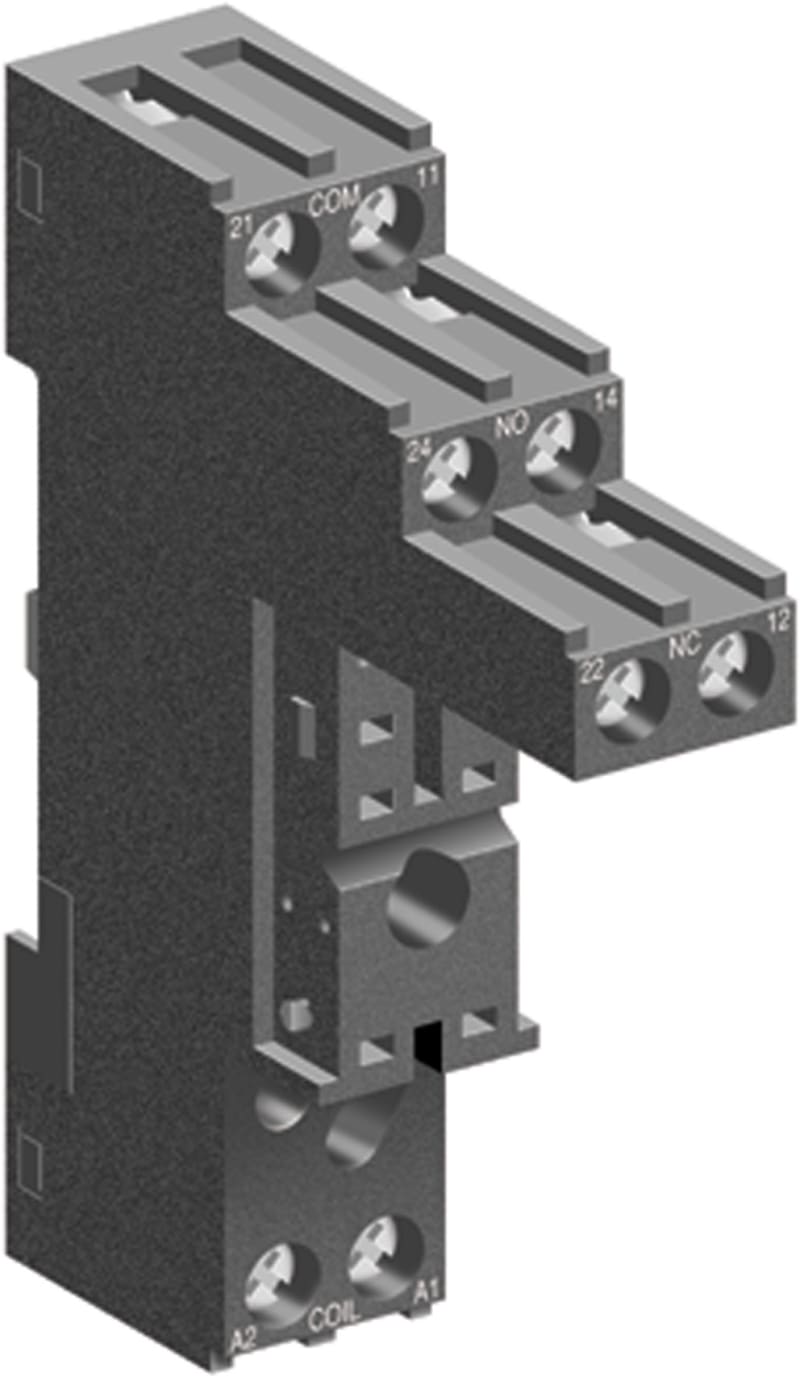

Schneider Electric RSZE1S48M Socket, separate contact, 10 A, relay type RSB, screw connector, 250 V AC

Schneider Electric RSZE1S48M Socket, separate contact, 10 A, relay type RSB, screw connector, 250 V AC is listed under Control & Automation / Relay Modules. Sales unit: pcs; Package quantity: 10 pcs; Range of product: Harmony Electromechanical Relays; Device short name: RSZ; Product or component type: Socket; Contacts type and composition: 2 C/O.

Manufacturer part number (MPN)

RSZE1S48M

EAN / GTIN

3389110260083

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Device short name

RSZ

Product or component type

Socket

Product compatibility

Plug-in relay RSB with 1 C/O contact at 16 A; Plug-in relay RSB with 2 C/O contact at 8 A

Contacts type and composition

2 C/O

[Ith] conventional free air thermal current

10 A

Shape of pin

Flat

[Ue] rated operational voltage

< 250 V AC

Contact terminal arrangement

Separate

Connections - terminals

Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Screw connectors, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw connectors, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw connectors, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Tightening torque

< 0.8 N.m for M3 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

3.6 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

15.5 mm

Product weight

0.05 kg

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984

Product certifications

CSA; UL

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-25…85 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.700 cm

Package 1 Width

6.200 cm

Package 1 Length

8.000 cm

Package 1 Weight

39.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

7.000 cm

Package 2 Width

9.000 cm

Package 2 Length

17.000 cm

Package 2 Weight

428.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

240

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

10.575 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Height

92.5 mm

Depth

65 mm

With detachable clamps

No

Function extension possible

No

Type of electric connection

Screw connection

Number of pins

8

HS Code

8536.90
