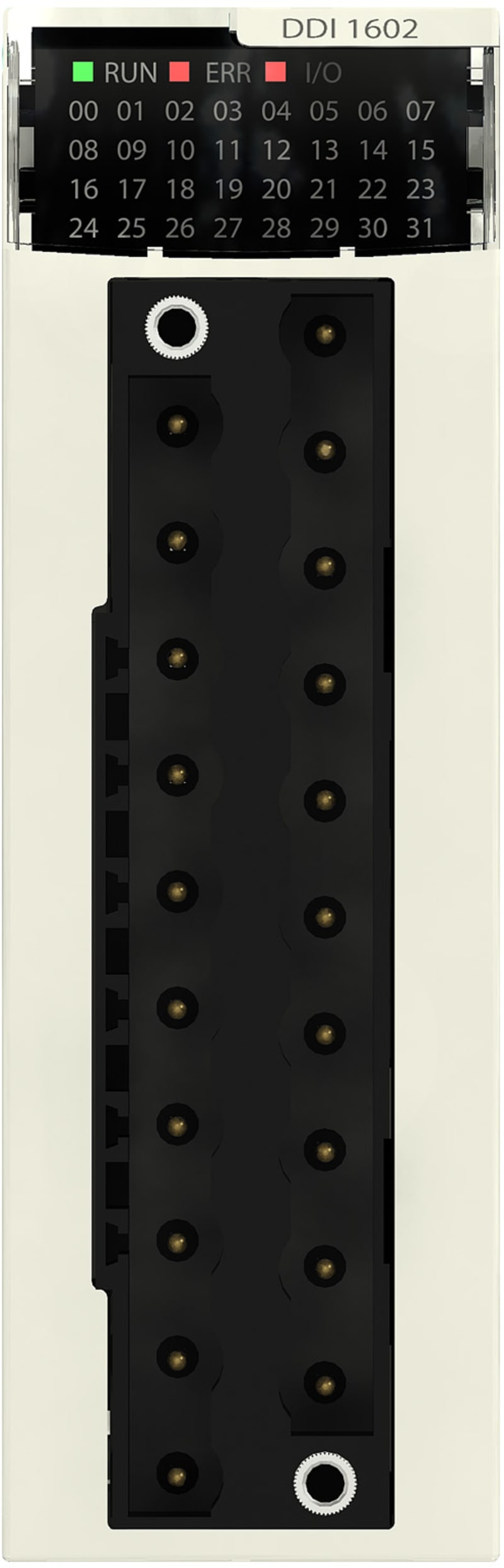

Schneider Electric discrete input module X80 - 16 inputs - 24 V DC positive BMXDDI1602

Schneider Electric BMXDDI1602 M340 16 in digital, 24VDC, FTB.

Manufacturer part number (MPN)

BMXDDI1602

EAN / GTIN

3595863910001

Sales unit

pcs

Package quantity

15 pcs

Voltage

24 V DC

Range of product

Modicon X80

Product or component type

Discrete input module

Device application

Industrial application

Discrete input number

16

Discrete input voltage

24 V DC for isolated

Discrete input logic

Positive logic (sink)

Input wiring mode

2 or 3 wires

Discrete input current

3.5 mA at 24 V DC

Voltage state 1 guaranteed

>= 11 V

Voltage state 0 guaranteed

< 5 V

Current state 1 guaranteed

>= 2 mA

Current state 0 guaranteed

<= 1.5 mA

Input impedance

6800 Ohm

Paralleling of inputs

Yes

Input protection type

Reverse polarity protection

Insulation resistance

> 10 MOhm 500 V DC

DC typical response time

4 ms

DC maximum response time

7 ms

Sensor power supply

: 19…30 V

Typical current consumption

76 mA DC

Current consumption

<= 107 mA at 3.3 V DC

Power dissipation in W

2.5 W

Isolation between channels and bus

1500 V for 1 minute

Hot swapping fallback

Yes

MTBF reliability

775000 H

Voltage detection threshold

18 V DC sensor OK

Local signalling

1 LED (green) for module operating (RUN); 1 LED per channel (green) for channel diagnostic; 1 LED (red) for module error (ERR); 1 LED (red) for module I/O

Height

103.7 mm

Width

32 mm

Depth

86 mm

Product weight

0.115 kg

IP degree of protection

IP20

Protective treatment

Standard version

Marking

CE; UKCA; CULus; EAC; RCM

Standards

IEC 61131-2

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Dielectric strength

1500 V AC at 50/60 Hz 1 minute, primary/secondary

Ambient air temperature for operation

0…60 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

5…95 % at 55 °C without condensation

Operating altitude

0...2000 m; 2000...5000 m with derating

Pollution degree

2

Environmental characteristic

Fungal spore resistant class 3B2

Vibration resistance

3 gn

Shock resistance

30 gn

Number of Units in Package 1

1

Number of Units in Package 2

15

Number of Units in Package 3

240

Country of origin

ID

Warranty (in months)

18

Power consumption

2.5 W

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital inputs

16

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

3.5 mA

Permitted voltage at input

19–30 V

Type of voltage (input voltage)

DC

Type of digital output

None

Permitted voltage at output

19–30 V

Type of output voltage

DC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Time delay at signal change

4–7 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
