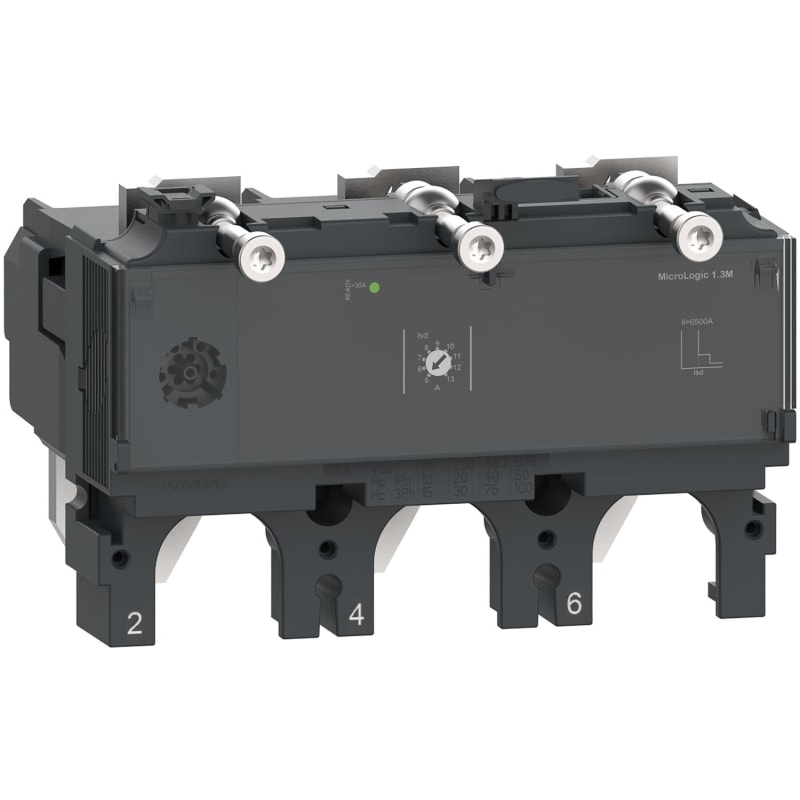

Schneider Electric Trip unit MicroLogic 1.3M, ComPacT NSX630, 3 poles, electronic magnetic protection, motor protection, 500A C6331M500
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C6331M500 Electronic short-circuit protection for ComPacT NSX630-Micrologic 1.3 M 3P 500A.
Technical Specifications
- Manufacturer part number (MPN)
- C6331M500
- EAN / GTIN
- 3606482003095
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Rated current
- 500 A
- Number of poles
- 3P
- Range
- ComPacT
- Range of product
- ComPacT NSX400...630
- Product or component type
- Trip unit
- Trip unit name
- MicroLogic 1.3 M
- Trip unit technology
- Electronic
- Range compatibility
- ComPacT NSX630
- Device application
- Motor
- Poles description
- 3P
- Protected poles description
- 3D
- Trip unit protection functions
- SI
- Protection type
- S : for short time short-circuit protection with fixed delay; I : for instantaneous short-circuit protection
- Trip unit rating
- 500 A at 65 °C
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Network type
- AC
- Network frequency
- 50/60 Hz
- Circuit breaker mounting mode
- Fixed
- Short-time protection pick-up adjustment type Isd
- Adjustable 9 settings
- [Isd] Short-time protection pick-up adjustment range
- 2500 A; 3000 A; 3500 A; 4000 A; 4500 A; 5000 A; 5500 A; 6000 A; 6500 A
- Short-time protection delay adjustment type tsd
- Fixed
- Instantaneous protection pick-up adjustment type Ii
- Fixed
- [Ii] instantaneous protection pick-up adjustment range
- 6500 A
- Earth-leakage protection
- Without
- Zone selective interlocking ZSI
- Without
- Local signalling
- Flashing LED (green) for ready to operate
- Standards
- EN/IEC 60947-2
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60947-1
- IP degree of protection
- IP40 conforming to IEC 60529
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
- Width
- 139.7 mm
- Height
- 94.6 mm
- Depth
- 112.6 mm
- Rated permanent current Iu
- 500 A
- Short-circuit release function
- Delayed
- External power supply required
- No
- Voltage type (operating voltage)
- AC
- With ground fault protection function
- No
- Rated switch current
- 500 A
- End value adjustment range undelayed short-circuit release
- 6500 A
- Type of motor protection
- Electronic release
- Voltage type for actuating
- AC
- Country of origin
- France
