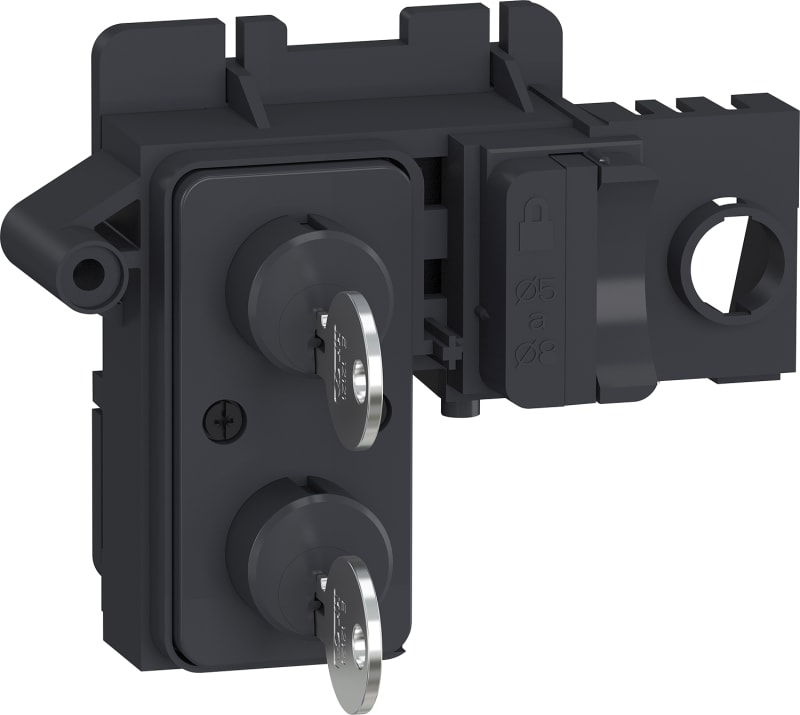

Schneider Electric 1 Ronis keylock with 2 keys - identified EL24315 combination - spare part LV833192SP
Pricing
Request a quote
We reply within 24 hours
Product Description
Locking of the pocket in the disconnected position: Ronis 1 lock, EL24315 combination, without mounting kit, for MTZ1.
Technical Specifications
- Manufacturer part number (MPN)
- LV833192SP
- EAN / GTIN
- 3606481173164
- Sales unit
- pcs
- Range
- MasterPact
- Product or component type
- Keylock
- Accessory / separate part category
- Locking accessory
- Range compatibility
- Masterpact MasterPact MTZ1; Masterpact MasterPact MTZ2; Masterpact MasterPact MTZ3
- Device short name
- keylock
- Type of keylock
- Ronis
- Key number
- EL24315
- Number of key
- 2
- Key locking position
- Off
- Locking options description
- Same keys
- Provided equipment
- 1 instruction sheet
- Offer type
- Spare part
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.4 cm
- Package 1 Width
- 9.0 cm
- Package 1 Length
- 13.8 cm
- Package 1 Weight
- 118.0 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 4
- Package 2 Height
- 15.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 472.0 g
- Warranty (in months)
- 18
- Sealable
- Yes
- Switching-off blocking
- Yes
- Switching-on blocking
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8301.40
Cross References
- EAN 3606481173164
- SAP 1200050721
- Code 81878826
