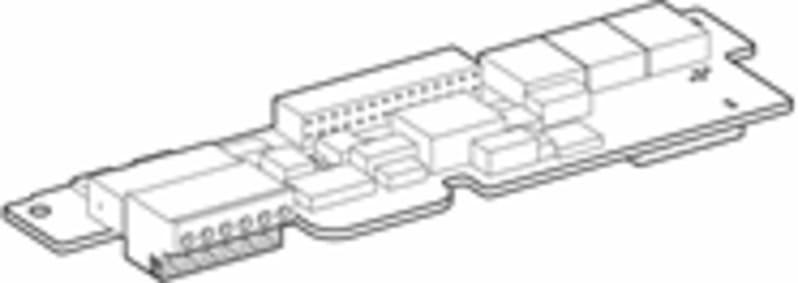

Schneider Electric encoder interface card with push-pull outputs - 24 V DC VW3A3407

Schneider Electric VW3A3407 Encoder 24V Push pull ENCODER.

Manufacturer part number (MPN)

VW3A3407

EAN / GTIN

3389118067264

Sales unit

pcs

Package quantity

7 pcs

Voltage

24 V

Range of product

Altivar

Product or component type

Encoder interface card

Range compatibility

Altivar 61Q; Altivar 71Q; Altivar 71; Altivar 61; Altivar Lift

Discrete output type

Push-pull

[Us] rated supply voltage

24 V DC (voltage limits: 20…30 V)

Number of pulses per revolution

10000 for ATV71H......383; 5000 for all ATV61 drives; 5000 for ATV71H...M3; 5000 for ATV71H...M3X; 5000 for ATV71H...N4

Maximum supply current

0.175 A

Protection type

Overload protection; Short-circuit protection

Maximum cable distance between devices

500 m

Maximum operating frequency

300 kHz

Input signal

A; B; Compliment of A; Compliment of B/AB/A

Input impedance

1000 Ohm

Voltage state 0 guaranteed

<= 1.5 V

Voltage state 1 guaranteed

> 11.5...< 25 V

Electrical connection

Terminal, connection capacity: 0.2 mm² (24 AWG) <500 m cable length, encoder, 100 mA at 14 V

Number of Units in Package 1

1

Number of Units in Package 2

7

Country of origin

ID

Warranty (in months)

18

Type of accessory/spare part

Encoder input module

Accessory

Yes

Spare part

No

HS Code

8537.10
