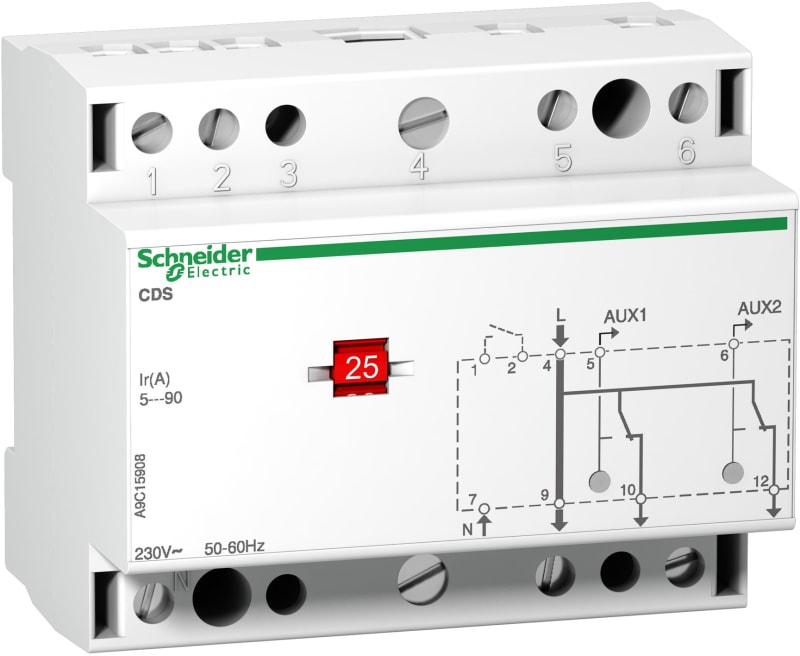

Schneider Electric CDS - single phase load-shedding contactor - 2 channels A9C15908

Schneider Electric A9C15908 CDS 1-PHASE 2 CHANNEL MAX.,VOKTER.

Manufacturer part number (MPN)

A9C15908

EAN / GTIN

3606480376863

Sales unit

pcs

Package quantity

27 pcs

range of product

Acti9

Product name

Acti9 CDS

Product or component type

Load-shedding contactor

Device short name

CDS

Number of channels

2

Control and monitoring type

Cascade

Poles description

1P

Setting

75; 45; 20; 90; 5; 10; 30; 60; 50; 40; 15; 25

Power consumption in VA

12 VA

[Ue] rated operational voltage

230 V AC - 15...10 % at 50/60 Hz

Rated current

15 A for non-priority circuit; Adjustable from 5 to 90 A for priority circuit

Local signalling

Load-shedding indication: 2 LEDs (yellow)

Mounting support

35 mm symmetrical DIN rail; Wall mounted; Panel mounting

9 mm pitches

10

Connections - terminals

Non-priority circuit: screw terminal2.5…10 mm² flexible; Non-priority circuit: screw terminal2.5…10 mm² rigid; Priority circuit: screw terminal10…35 mm² flexible; Priority circuit: screw terminal10…50 mm² rigid

IP degree of protection

IP20 conforming to IEC 60529

Height

77 mm

Width

90 mm

Depth

60 mm

Product weight

0.3 kg

Colour

White (RAL 9003)

Tightening torque

Non-priority circuit: 2 N.m; Priority circuit: 3.5 N.m

Wire stripping length

12 mm; 13 mm

Standards

EN 50081-1; NF C 61-750; EN 50081-2

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-40…70 °C

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Number of Units in Package 1

1

Number of Units in Package 2

27

Warranty (in months)

18

Rated voltage

230 V

Rated current Iu

5–90 A

Just-operate current

5–90 A

Max. continuous current

90 A

Number of contacts as normally closed contact

2

Max. switching voltage (control contacts)

250 V

Voltage type

AC

Mounting method

DIN rail

Width in number of modular spacings

5

Built-in depth

67 mm

Degree of protection (IP)

IP20

Country of origin

France

HS Code

8536.49
