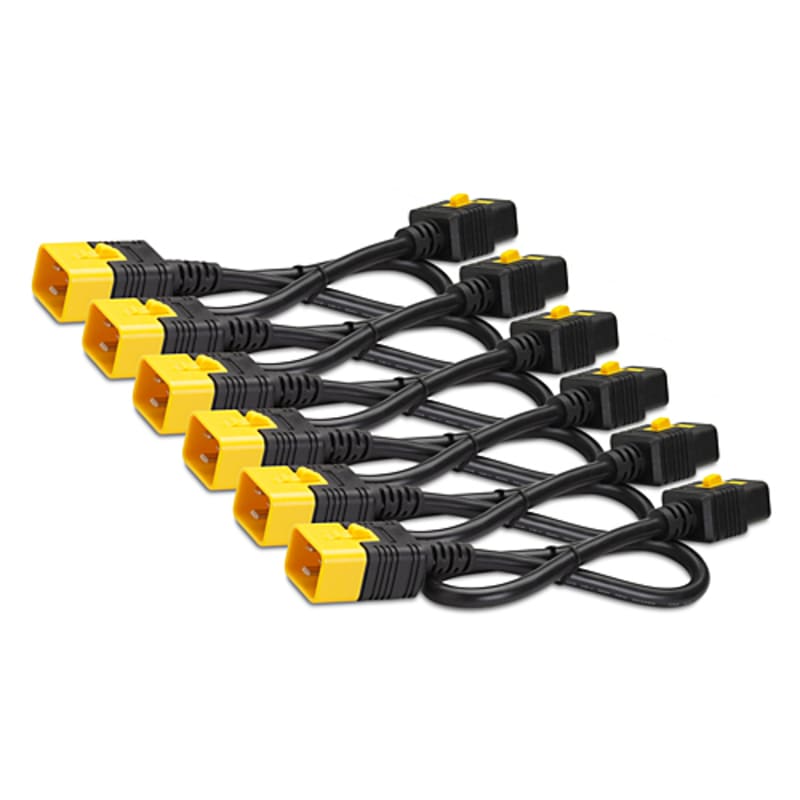

Schneider Electric Power Cord Kit (6 ea), Locking, C19 to C20, 1.2M AP8714S

Schneider Electric AP8714S APC by Schneider Electric.

Manufacturer part number (MPN)

AP8714S

EAN / GTIN

0731304279709

HS code

8544.42

Sales unit

pcs

Package quantity

6 pcs

Presentation

Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Product or component type

Power cord

Input Connection Type

IEC 60320 C20

Cable length

1.21 m

Number of cables

6

Colour

Black

Height

300 mm

Width

70 mm

Depth

70 mm

Product weight

1.64 kg

Mounting preference

No preference

mounting mode

Not rack-mountable

Max line current

16 A

Input current limits

16 A

Max current draw

16 A

Number of power socket outlets

1 IEC 60320 C19

Power cable length

1.2 m

Product certifications

CCC; CSA; PSE; UL listed; VDE

Ambient air temperature for operation

0…75 °C

Relative humidity

20…80 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…75 °C

Storage Relative Humidity

20…80 %

Storage altitude

0…15240 m

Number of Units in Package 1

1

SCC14

10731304279706

Country of origin

CN

Warranty (in months)

24

HS Code

8544.42

• EAN 0731304279709
• SAP 1200013547
• Code 81383917
