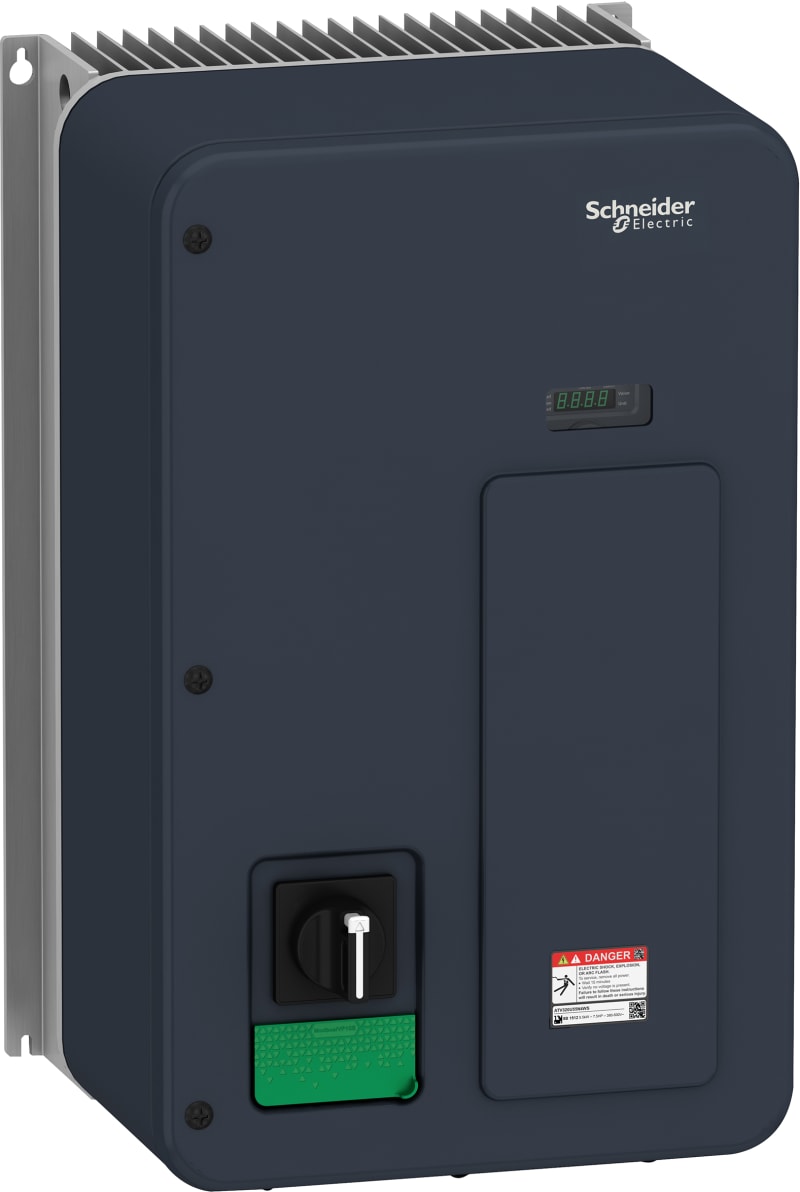

Schneider Electric Variable speed drive, Altivar Machine ATV320, 0.75 kW, 380...500 V, 3 phases, enclosed ATV320U07N4WS

Schneider Electric ATV320U07N4WS — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Variable-frequency drive ATV320 - 0,75kW - 380-480V - 3 phased with switch - IP65.

Manufacturer part number (MPN)

ATV320U07N4WS EAN / GTIN: 3606489548650 HS code: 8536.90 Sales unit: pcs Voltage: 400 V IP rating: IP65 Power: 0.75 kW Range of product: Altivar Machine ATV320 Product or component type: Variable speed drive Product specific application: Complex machines Variant: With disconnect switch Format of the drive: Enclosed mounting mode: Wall mount Communication port protocol: Modbus serial; CANopen Option card: Communication module, CANopen; Communication module, EtherCAT; Communication module, Profibus DP V1; Communication module, PROFINET; Communication module, Ethernet Powerlink; Communication module, EtherNet/IP; Communication module, DeviceNet [Us] rated supply voltage: 380...500 V - 15...10 % nominal output current: 2.3 A Motor power kW: 0.75 kW for heavy duty Motor power hp: 1 hp EMC filter: Class C2 EMC filter integrated IP degree of protection: IP65 Discrete input number: 7 Discrete input type: STO safe torque off, 24 V DC, impedance: 1.5 kOhm; DI1...DI6 logic inputs, 24 V DC (30 V); DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) Discrete input logic: Positive logic (source); Negative logic (sink) Discrete output number: 3 Discrete output type: Open collector DQ+ 0…1 kHz 30 V DC 100 mA; Open collector DQ- 0…1 kHz 30 V DC 100 mA Analogue input number: 3 Analogue input type: AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits; AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits; AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits Analogue output number: 1 Analogue output type: Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits; Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Relay output type: Configurable relay logic R1A 1 NO electrical durability 100000 cycles; Configurable relay logic R1B 1 NC electrical durability 100000 cycles; Configurable relay logic R1C; Configurable relay logic R2A 1 NO electrical durability 100000 cycles; Configurable relay logic R2C Maximum switching current: Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC; Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC; Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC; Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC; Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC; Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC minimum switching current: Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC Method of access: Slave CANopen 4 quadrant operation possible: True Asynchronous motor control profile: Voltage/frequency ratio, 5 points; Flux vector control without sensor, standard; Voltage/frequency ratio - Energy Saving, quadratic U/f; Flux vector control without sensor - Energy Saving; Voltage/frequency ratio, 2 points Synchronous motor control profile: Vector control without sensor Maximum output frequency: 0.599 kHz Acceleration and deceleration ramps: Linear; U; S; CUS; Ramp switching; Acceleration/deceleration ramp adaptation; Acceleration/deceleration automatic stop with DC injection Motor slip compensation: Automatic whatever the load; Adjustable 0...300 %; Not available in voltage/frequency ratio (2 or 5 points) Switching frequency: 2...16 kHz adjustable; 4...16 kHz with derating factor Nominal switching frequency: 4 kHz Braking to standstill: By DC injection Brake chopper integrated: True Line current: 3.6 A at 380 V (heavy duty); 2.8 A at 500 V (heavy duty) Maximum input current: 3.6 A Maximum output voltage: 500 V Apparent power: 2.4 kVA at 500 V (heavy duty) Network frequency: 50...60 Hz Relative symmetric network frequency tolerance: 5 % Prospective line Isc: 5 kA Base load current at high overload: 14.3 A Power dissipation in W: Self-cooled: 32.0 W at 380 V, switching frequency 4 kHz With safety function Safely Limited Speed (SLS): True With safety function Safe brake management (SBC/SBT): False With safety function Safe Operating Stop (SOS): False With safety function Safe Position (SP): False With safety function Safe programmable logic: False With safety function Safe Speed Monitor (SSM): False With safety function Safe Stop 1 (SS1): True With sft fct Safe Stop 2 (SS2): False With safety function Safe torque off (STO): True With safety function Safely Limited Position (SLP): False With safety function Safe Direction (SDI): False Protection type: Input phase breaks: drive; Overcurrent between output phases and earth: drive; Overheating protection: drive; Short-circuit between motor phases: drive; Thermal protection: drive Width: 250 mm Height: 340 mm Depth: 200 mm Product weight: 6.3 kg Transient overtorque: 170…200 % of nominal motor torque Operating position: Vertical +/- 10 degree Product certifications: CE; ATEX; NOM; GOST; EAC; RCM; KC Marking: CE; ATEX; UL; CSA; EAC; RCM Standards: IEC 61800-5-1 Electromagnetic compatibility: Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5; Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6; Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Environmental class (during operation): Class 3C3 according to IEC 60721-3-3; Class 3S2 according to IEC 60721-3-3 Maximum acceleration under shock impact (during operation): 150 m/s² at 11 ms Maximum deflection under vibratory load (during operation): 1.5 mm at 2...13 Hz Permitted relative humidity (during operation): Class 3K5 according to EN 60721-3 Overvoltage category: III Regulation loop: Adjustable PID controller Speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn Pollution degree: 3 Ambient air transport temperature: -25…70 °C Ambient air temperature for operation: -10…40 °C without derating; 40…60 °C with derating factor Ambient air temperature for storage: -25…70 °C Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606489548650
• SAP 1200147038
• Code 82036779
