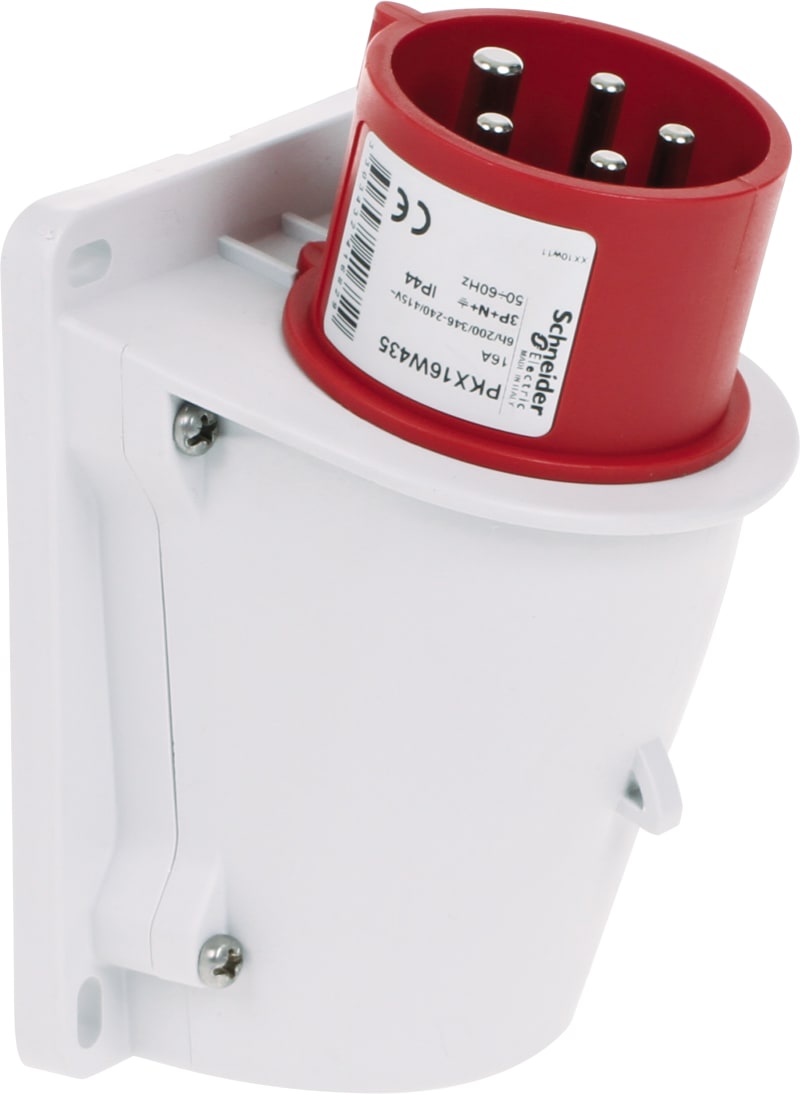

Schneider Electric PratiKa plug - angled - 16A - 3P + N + E - 380...415 V AC - IP44 - wall-mounted PKX16W435
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKX16W435 PratiKa wall socket - angled - 16 A - 3P + N + E - 380-415 V AC - IP44.
Technical Specifications
- Manufacturer part number (MPN)
- PKX16W435
- EAN / GTIN
- 3303432416829
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 400 V
- IP rating
- IP44
- Rated current
- 16 A
- Range
- Mureva
- Product or component type
- Plug
- Device short name
- Mureva plug
- Plug, socket category
- Low voltage
- Poles description
- 3P + N + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Wall-mounted
- Plug, socket, control station shape
- Angled
- [In] rated current
- 16 A
- [Ue] rated operational voltage
- 380...415 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Pins: nickel plated brass; Screws: stainless steel
- Connections - terminals
- Fast connection
- Cable cross section
- 1…4 mm²
- Cable outer diameter
- 21.5 mm
- Thread type
- M25
- Product weight
- 0.26 kg
- Base dimension
- 120 x 90 mm
- Height
- 142 mm
- Width
- 90 mm
- Depth
- 86 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 750 °C conforming to IEC 60695-2-11
- Pollution degree
- 3
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s ) ; -25…40 °C
- Warranty (in months)
- 18
- RAL-number
- 7035
- Construction type
- Surface mounted device plug
- Number of poles
- 5
- Rated frequency
- 50–60 Hz
- Material
- Plastic
- IEC-amperage
- 16 A
- Connection system
- Screwless terminal
- Insert direction
- Angled
- Phase inverter
- No
- Rated voltage
- 380–415 V
- Degree of protection (IP)
- IP44
- Military model
- No
- Clock hour position
- 6 h
- Identification colour
- Red
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Country of origin
- Italy
