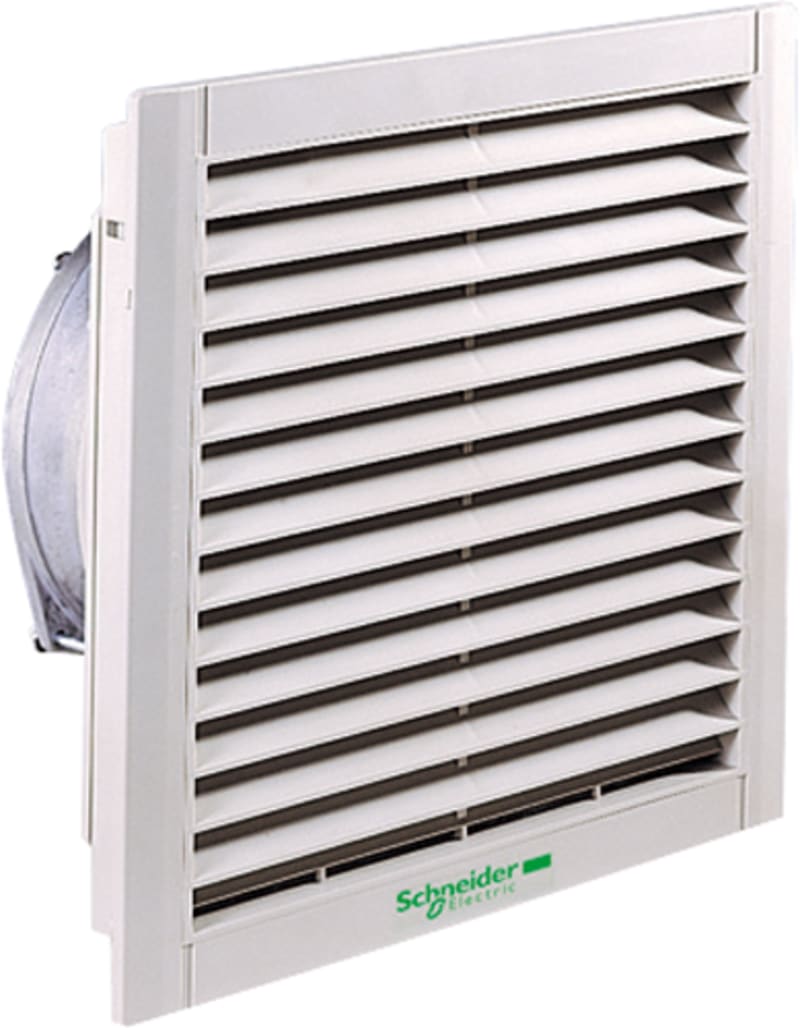

Schneider Electric Fan CEM 61 M3/h NSY17990
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSY17990 FAN EMC 56CM/h, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSY17990
- EAN / GTIN
- 3606480169380
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- EMC fan
- Type of filter
- Standard
- Flow rate
- Free flow rate: 61 m3/h at 50 Hz
- Input voltage
- 230 V 50/60 Hz
- Height
- External: 145 mm
- Width
- External: 145 mm
- Depth
- External : 70 mm
- Cut-out dimensions
- 126 x 126 mm
- Material
- Outlet grille: ABS (acrylonitrile butadiene-styrene); Frame of axial motor: steel; Gasket: berylium
- Colour
- Outlet grille: grey (RAL 7035)
- IP degree of protection
- IP54
- Device composition
- 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 EMC outlet grille: front; 1 gasket: between fan and enclosure
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Number of Units in Package 3
- 315
- Country of origin
- DE
- Warranty (in months)
- 18
- Mounting method
- Snap mounting
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- Yes
- Degree of protection (IP)
- IP54
- With protective cover
- Yes
- With filter
- Yes
- Rated power
- 18 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 56 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 50 dB(A)
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480169380
- SAP 1000090402
- Code 8582996
Product Documentation
