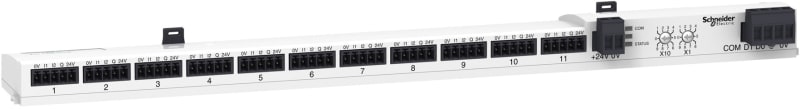

Schneider Electric Communication Module. EcoStruxure I/O Smart Link, Modbus, RS485 A9XMSB11

Schneider Electric A9XMSB11 Acti9 Smartlink RS485 Modbus.

Manufacturer part number (MPN)

A9XMSB11

EAN / GTIN

3606480430602

Sales unit

pcs

Package quantity

32 pcs

Range of product

Acti9

Product or component type

Smart communication module

Product name

EcoStruxure I/O Smart Link

Device short name

I/O Smart Link

Application type

Load control; Breaker status monitoring; Basic energy metering E

Number max of connected devices

Up to 11 wired devices

Group of channels

1 group of 11 digital channels

Maximum supply current

1.5 A

[Us] rated supply voltage

24 V DC +/- 20 %

Connectivity to devices

Digital input and output; Pulse output meter

Communication service

Modbus server for RS485

Web server

BMS controller compatible

Application specific I/O

Pulse totalising counter; Pulse converter

Protection type

Against reverse polarity for auxiliary supply; Against reverse polarity for input; Overvoltage at 33 V DC for digital output

Immunity to microbreaks

10 ms

Reset

Factory reset on front face; By booted push-button; By address encoder; By plug in, plug out the power supply

Input/output type

2 inputs + 1 output per digital channel

Input type

Current sink for digital input, 24 V DC +/- 20 % at 2.5 mA

Maximum permanent current

5 mA for digital input

Electronic filtering time

2 ms for digital input from state 0 to state 1

Output type

Logic current source: 24 V - DC - 100 mA

Maximum voltage drop

<1 V at state 1 digital output

Inrush current

0.5 A for digital output; 7 A for power supply

Local signalling

Communication: 1 LED (yellow); Status: 1 LED (green, orange and red)

Type of setting

Modbus address 01...99 for address encoders; Reset for address encoders; Reset for plug in, plug out the auxiliary supply

Mounting position

Horizontal and vertical on DIN rail

Colour

White (RAL 9003)

Location of connection

Front

Connections - terminals

Spring-loaded terminal Ti24 qty: 11 for digital input/output, ordered separately; Plug-in connector qty: 1 for supply circuit; Plug-in connector qty: 1 for communication bus

Clamping connection capacity

2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, flexible with cable end for communication bus; 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, flexible without cable end for communication bus; 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, rigid with cable end for communication bus; 2 x 0.2...2 x 1.5 mm² for twisted shielded pairs cable, rigid without cable end for communication bus; 1 x 0.2...1 x 1.5 mm², flexible with cable end for control; 1 x 0.2...1 x 1.5 mm², flexible without cable end for control; 1 x 0.2...1 x 1.5 mm², rigid with cable end for control; 1 x 0.2...1 x 1.5 mm², rigid without cable end for control; 2 x 0.2...2 x 1.5 mm², flexible with cable end for supply circuit; 2 x 0.2...2 x 1.5 mm², flexible without cable end for supply circuit; 2 x 0.2...2 x 1.5 mm², rigid with cable end for supply circuit; 2 x 0.2...2 x 1.5 mm², rigid without cable end for supply circuit

Wire stripping length

Control: 10 mm; Supply circuit: 7 mm; Communication bus: 7 mm

Communication network type

RS485 Modbus RTU client/server SUB-D 9 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

9 mm pitches

0 useful

Height

22.5 mm

Width

359 mm

Depth

42 mm

Product weight

188 g

Provided equipment

Set of 1 bus connector; Set of 1 power supply connector; Set of 2 locking clips

Range compatibility

Acti 9 iTL auxiliary; Linergy Linergy FM; Acti 9 iOF+SD 24; Acti 9 iACT24; Acti 9 iATL24; PowerLogic pulse output meter; Acti 9 RCA iC60; Acti 9 Acti9 iCT auxiliary; Acti 9 Acti9 iC60; Acti 9 Acti9 iID; Acti 9 Acti9 iSW-NA; Acti 9 Acti9 iDPN Vigi; Acti 9 Acti9 C40; Multi9 Multi9 C60; Acti 9 Acti9 DT40; Acti 9 Acti9 DT60; Acti 9 Acti9 I-NA; Acti 9 Acti9 ITG40; Acti 9 Acti9 iDPN; Acti 9 Acti9 Reflex iC60 Ti24 connector

Commissioning interface

EcoStruxure Power Commission

Market segment

Buildings; Small commercial

Compatibility code

Acti 9 Smartlink

IP degree of protection

IP20

IK degree of protection

IK06 conforming to IEC 62262

Pollution degree

3

Electromagnetic compatibility

Resistance to electrostatic discharge (air discharge), class B, 8 kV, conforming to IEC 61000-4-2; Resistance to electrostatic discharge (contact discharge), class B, 4 kV, conforming to IEC 61000-4-2; Resistance to radiated electromagnetic fields (80 MHz...3 GHz), class A, 10 V/m, conforming to IEC 61000-4-3; Power supply: resistance to radiated electromagnetic fields (1.4…6 GHz), class A, 3 V/m, conforming to IEC 61000-4-3; Power supply: resistance to fast transient (5...100 kHz), class B, 2 kV, conforming to IEC 61000-4-4; Input/output: resistance to fast transient, class B, 1 kV, conforming to IEC 61000-4-4; Communication bus: resistance to fast transient (0.15...80 MHz), class B, 1 kV, conforming to IEC 61000-4-4; Conducted EMC (0.15...80 MHz), class A, 3 V, conforming to IEC 61000-4-6; Conducted emission (0.15...30 MHz), class B, conforming to IEC 61326-1; Conducted emission (0.15...30 MHz), class B, conforming to CISPR 11; Radiated emission (30...6000 MHz), class B, conforming to IEC 61326-1; Radiated emission (30...6000 MHz), class B, conforming to CISPR 11; Power supply: surges (DM coupling 42 Ohm), class B, 1 kV, conforming to IEC 61000-4-5; Power supply: surges (CM coupling 42 Ohm), class B, 2 kV, conforming to IEC 61000-4-5; Communication bus: surges (CM coupling 2 Ohm), class B, 1 kV, conforming to IEC 61000-4-5

Environmental characteristic

Corrosive 3C2 conforming to IEC 60721-3-3; Salt mist 2 conforming to IEC 60068-2-52

Vibration resistance

1 gn, amplitude = 3.5 mm (f = 5…300 Hz)10 cycles conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Fire resistance

Other parts: 650 °C ( 30 s ) conforming to IEC 60695-2-10; On connection terminals: 960 °C ( 30 s ) conforming to IEC 60695-2-10

Tropicalisation

2

Relative humidity

0…93 % at 40 °C

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Standards

IEC 61010-2-201; IEC 61010-1

Number of Units in Package 1

1

Number of Units in Package 2

32

Country of origin

FR

Warranty (in months)

18

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Number of digital inputs

22

Number of digital outputs

11

Digital inputs configurable

Yes

Digital outputs configurable

Yes

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Input current at signal 1

2.5 mA

Permitted voltage at input

19.2–28.8 V

Type of voltage (input voltage)

DC

Output current at digital output

0.1 A

Output voltage at digital output

24 V

Type of output voltage

DC

Short-circuit protection, digital outputs available

Yes

Analogue input, current

No

Analogue input, voltage

No

Analogue input, resistor

No

Analogue input, resistor temperature

No

Analogue input, thermocouple

No

Analogue input signal configurable

No

Number of HW-interfaces RS-485

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Plug-in connection

Fieldbus connection over separate bus coupler possible

No

Suitable for rail mounting

No

HS Code

8538.90

• EAN 3606480430602
• SAP 1000326490
• Code 8843641
