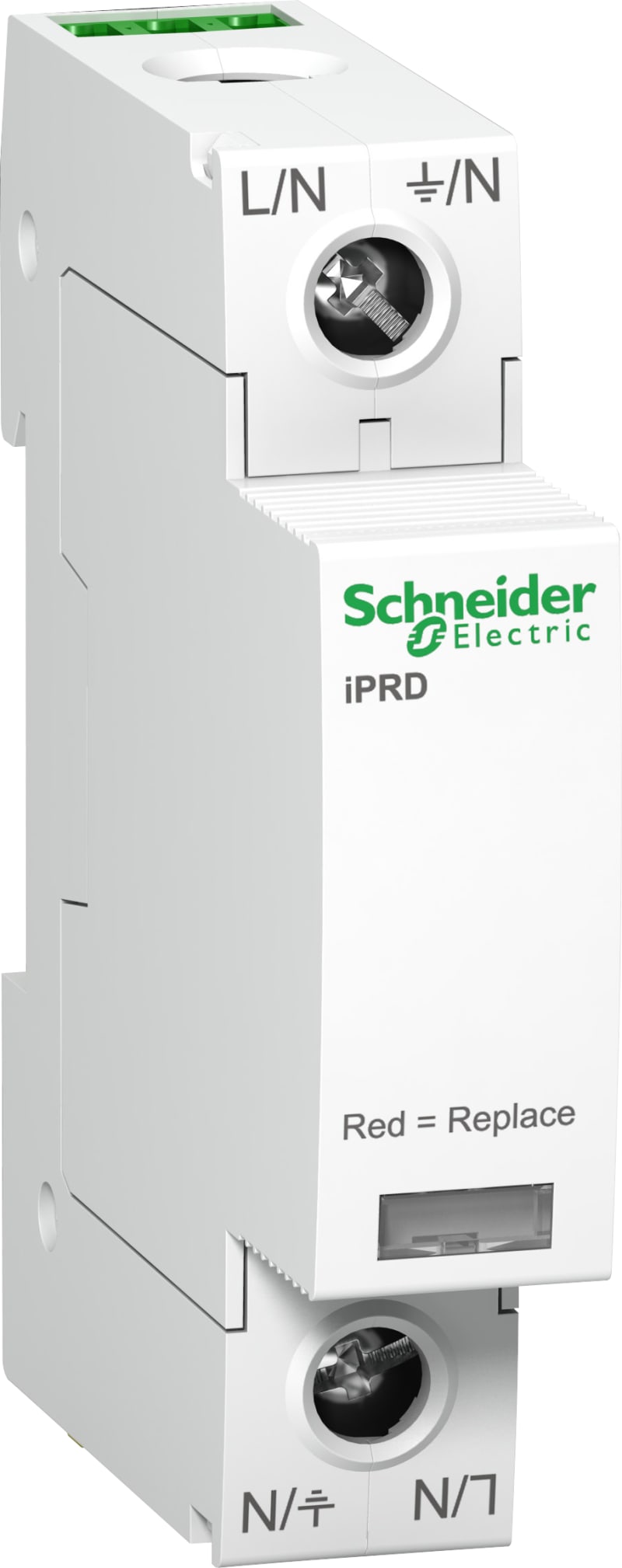

Schneider Electric IPRD65R modular surge arrester - 1P - IT - 460V - with remote transfert A9L65121

Schneider Electric A9L65121 iPRD65r Surge protection device IT 460V 1P.

Manufacturer part number (MPN)

A9L65121

EAN / GTIN

3606480801631

Sales unit

pcs

Package quantity

12 pcs

Voltage

460 V

Number of poles

1P

Range of product

IPRD

Product name

Acti9 iPRD

Product or component type

Surge arrester with pluggable cartridge

Device short name

iPRD65r

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Product certifications

CE

Poles description

1P

Remote signalling

With

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Earthing system

IT

Surge arrester class type

Type 2

Surge arrester technology

MOV

[Ue] rated operational voltage

230 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

Common mode: 20 kA (L/PE)

Maximum discharge current

Common mode: 65 kA L/PE

[Uc] maximum continuous operating voltage

Common mode: 460 V L/PE

Maximum [Up] voltage protection level

Common mode 2.3 kV type 2 L/PE

[Out] temporary overvoltage

337 V L/N 5 s withstand; 1455 V L/PE 200 ms safe failure mode; 1455 V N/PE 200 ms safe failure mode

Short-circuit withstand

5 kA 415 V Ph/Ph

Disconnector device type

Associated circuit breaker iC60L 25 A curve C - Icu 25 kA; Associated circuit breaker NG125H 50 A curve C - Icu 36 kA; Associated circuit breaker NG125L 50 A curve C - Icu 50 kA; Associated fuse gG 80 A - Icu 50 kA

Signalling circuit voltage

0.25 A/250 V AC 50/60 Hz

Mounting mode

Clip-on (DIN rail)

9 mm pitches

2

Height

85 mm

Width

18 mm

Depth

69 mm

Product weight

119 g

Colour

White (RAL 9003)

[Ipe] Ground residual current

0.6 mA

Connections - terminals

Tunnel type terminal (top or bottom) 2.5…25 mm² rigid; Tunnel type terminal (top or bottom) 4…16 mm² flexible; Tunnel type terminal (top or bottom) 4…16 mm² flexible with ferrule

Wire stripping length

14 mm

Tightening torque

3.5 N.m

Targeted country

All

Compatibility code

IPRD65r

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

System configuration

IT

System configuration DC

No

System configuration IT

Yes

System configuration TN

No

System configuration TN-C

No

System configuration TT

No

System configuration other

No

Number of conductors (without earthing)

1

Nominal discharge surge current (8/20)

20 kA

Max. discharge surge current (8/20)

65 kA

Short-circuit-proof

No

Nominal voltage AC

230 V

Max. continuous voltage AC

460 V

Voltage protection level

2.3 kV

Voltage protection level L-N

2 kV

Max. overcurrent protection device, series connection (fuse)

80 A

Short-circuit breaking capacity (Isccr)

50 kA

Integrated short-circuit protection

No

Integrated backup fuse

No

Leakage-current free

No

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

1 modular spacing

Max. conductor cross section solid (solid, stranded)

25 mm²

Max. conductor cross section flexible (fine-strand)

16 mm²

With remote signalling contact

Yes

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

Country of origin

China

HS Code

8536.30
