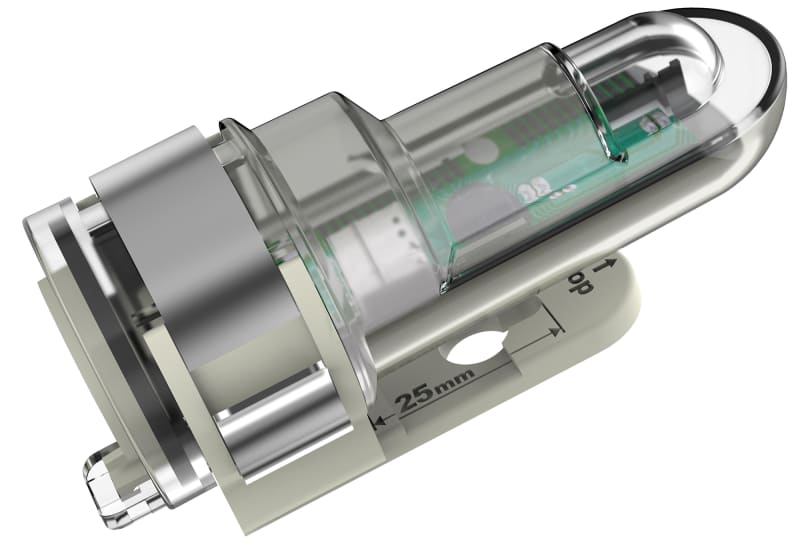

Schneider Electric ACTI9 analogue outdoor light sensor cell CCT15263
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric CCT15263 Acti 9 analog light sensor, outdoor.
Technical Specifications
- Manufacturer part number (MPN)
- CCT15263
- EAN / GTIN
- 3606489524654
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- range of product
- Acti9
- Product or component type
- Wall mounted cell
- Function available
- Horizontally orientable
- Range compatibility
- Acti9 IC100 twilight switch; Acti9 IC2000 twilight switch; Acti9 IC2000P+ programmable twilight switch with time switch function
- Cable length
- 50 m
- Light intensity adjustment
- 2…2000 lux
- Mounting location
- Outdoor
- Height
- 95 mm
- Width
- 48 mm
- Depth
- 45 mm
- Product weight
- 40.5 g
- Market segment
- Residential; Small commercial
- Compatibility code
- Wall mounted cell
- Ambient air temperature for operation
- -40…70 °C
- ambient air temp for storage/transportation
- -40…70 °C
- Relative humidity
- 100 %
- IP degree of protection
- IP55
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489524654
- SAP 1200314489
- Code 82302437
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Modbus SL diagnostic expansion module with screw term XPSMCMCO0000MB
Schneider Electric

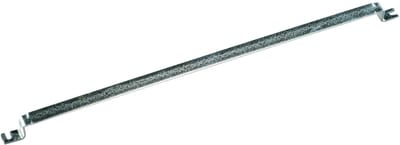

Schneider Electric holder for coupling piece, 18 modules angled
13598
Schneider Electric

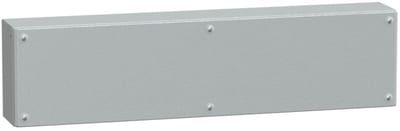

Schneider Electric Metal industrial box plain door H200XW800XD120 IP66 IK10 RAL 7035 NSYSBM208012
Schneider Electric

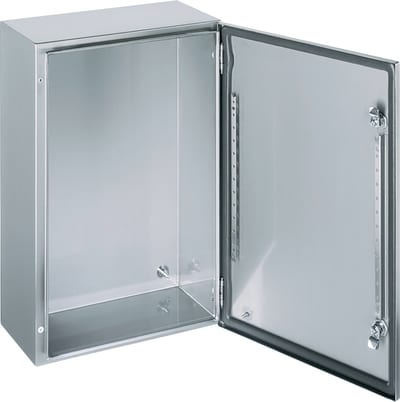

Schneider Electric PanelSet S3X stainless 316L, Scotch Brite® finish, H300XW200XD150 mm. NSYS3X3215H
Schneider Electric

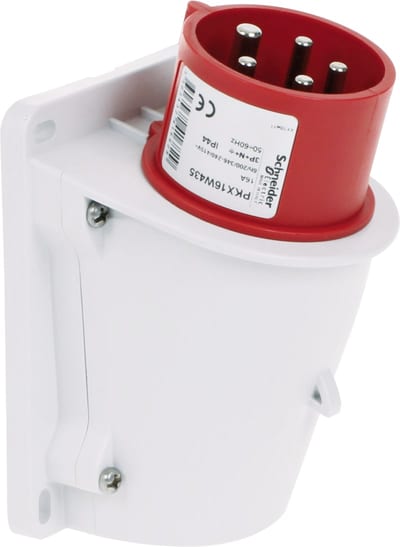

Schneider Electric PratiKa plug - angled - 16A - 3P + N + E - 380...415 V AC - IP44 - wall-mounted PKX16W435
Schneider Electric

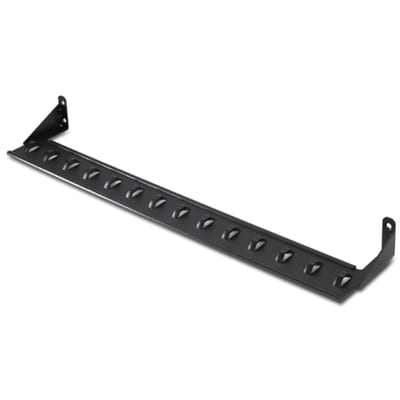

Cord Retention Bracket for Rack ATS
AP7769
Schneider Electric
Schneider Electric Communication Module. EcoStruxure I/O Smart Link, Modbus, RS485 A9XMSB11
Schneider Electric

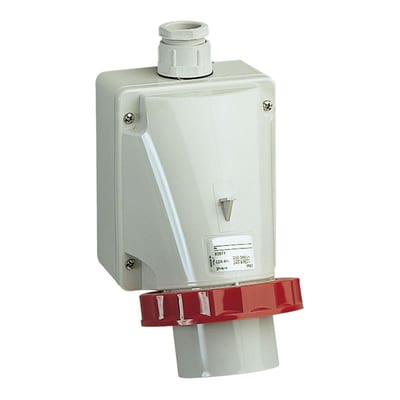

Wall-mounted. App.innt. 32A 4P+J 400V (83571)
