Schneider Electric

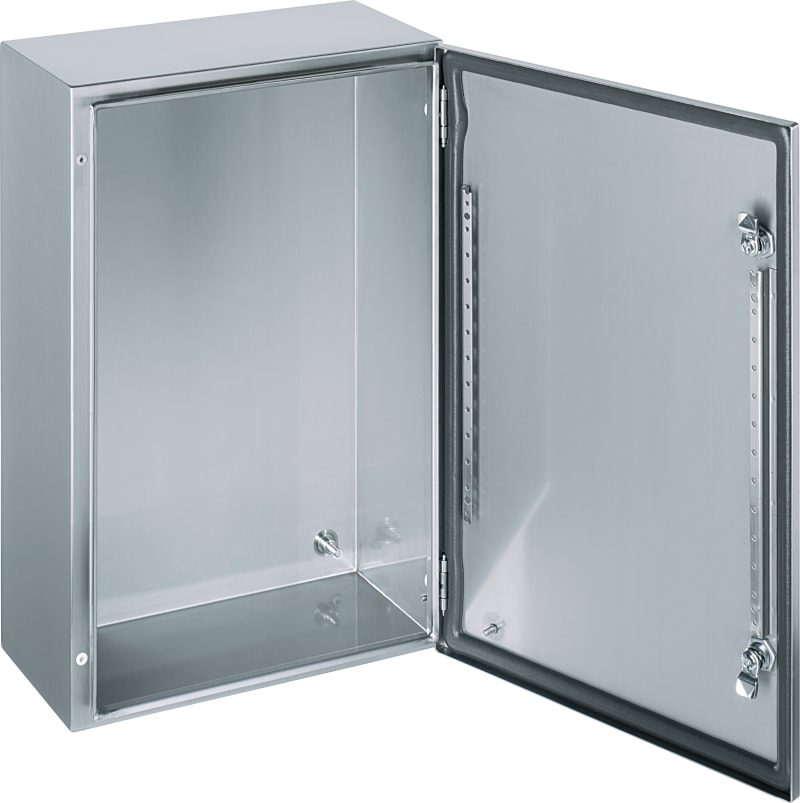

Schneider Electric PanelSet S3X stainless 316L, Scotch Brite® finish, H300XW200XD150 mm. NSYS3X3215H
Part numberNSYS3X3215HEAN / GTIN3606480155062HS code9403.20
Enclosures
Industrial Enclosures
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3X3215H Cabinet Stainless 316L 300X200X150.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3X3215H
- EAN / GTIN
- 3606480155062
- Sales unit
- pcs
- Dimensions
- 300×200×150
- Range
- Spacial
- Product name
- Spacial S3X
- enclosure type
- Multi-purpose
- category
- Compact enclosure
- nominal height
- 300 mm
- nominal width
- 200 mm
- nominal depth
- 150 mm
- product installation
- Wall-mounting
- Device composition
- 1 body; 1 lock: door; 1 door
- Body type
- Single piece body, cross-shaped structure; Gutter shaped front rail
- Door type
- Plain
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Lock: zamak; Hinge: stainless steel; Body and door: stainless steel 316L
- Surface finish
- Body and door: Scotch-Brite® brushed; Lock: chromium plated
- Product weight
- 3.12 kg
- Standards
- IEC 62208; UL; CUL
- Product certifications
- UL 508 type A; CAN/CSA 22
- IP degree of protection
- IP66 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Environmental characteristic
- Corrosive; Specific hygiene
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 24
- Country of origin
- BG
- Warranty (in months)
- 18
- Colour
- Stainless steel
- Width
- 200 mm
- Height
- 300 mm
- Depth
- 150 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 316 (V4A)
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480155062
- SAP 1000089685
- Code 8582039
Product Documentation
Document preview: Schneider Electric NSYS3X3215H — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric PratiKa plug - angled - 16A - 3P + N + E - 380...415 V AC - IP44 - wall-mounted PKX16W435
Schneider Electric
Cord Retention Bracket for Rack ATS
AP7769
Schneider Electric
Schneider Electric Communication Module. EcoStruxure I/O Smart Link, Modbus, RS485 A9XMSB11
Schneider Electric
Wall-mounted. App.innt. 32A 4P+J 400V (83571)
Schneider Electric

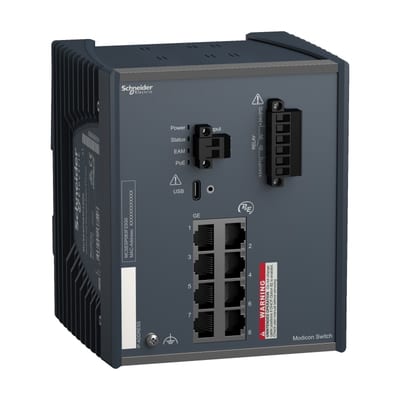

Eth PoE Managed Switch 8TX
MCSESP083F23G0
Schneider Electric

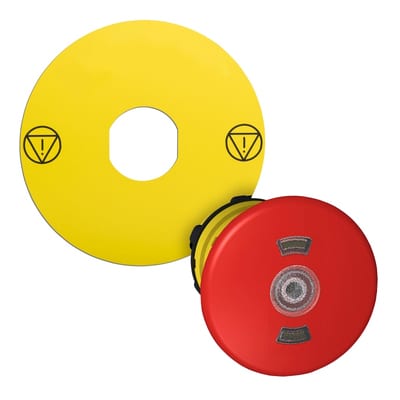

Emergency stop head for LED with sign
ZB5AT8643M140
Schneider Electric

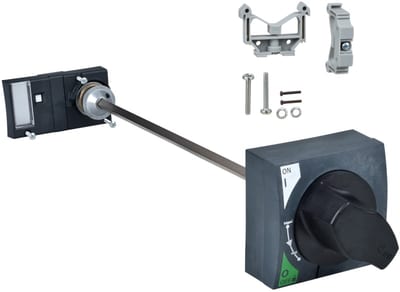

Rotary handle NG125 (19088)
Schneider Electric

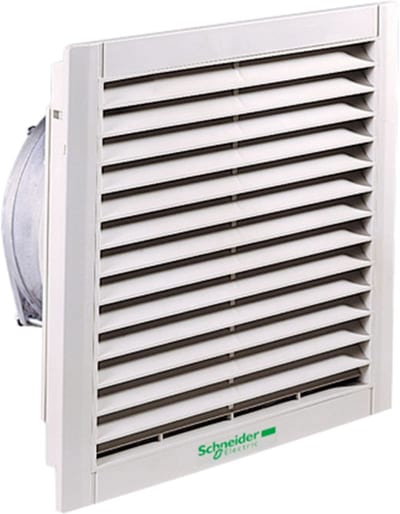

Schneider Electric Fan CEM 61 M3/h NSY17990
