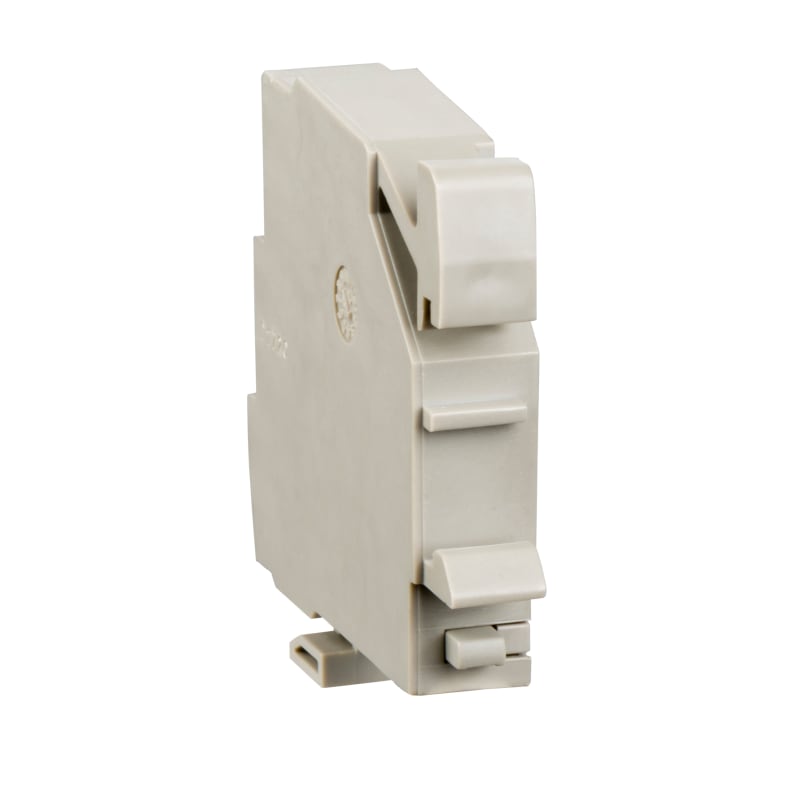

CE/CD/CT low-level MTZ withdrawable, spare
Pricing
Request a quote
We reply within 24 hours
Product Description
Position contact CE/CD/CT, low level, for MTZ/NT/NW withdrawable circuit breakers; spare part.
Technical Specifications
- Manufacturer part number (MPN)
- LV833171SP EAN / GTIN: 3606481186270 Sales unit: pcs Package quantity: 20 pcs Range: MasterPact Device short name: CE/CD/CT Product or component type: Auxiliary contact Device application: Control Range compatibility: Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker Signal contacts composition: 1 NO/NC mounting mode: Drawout Auxiliary contacts type: Low level Auxiliary contacts operation: Test position; Disconnected position; Connected position [Ie] rated operational current: DC-12: 0.3 A at 250 V DC; DC-12: 0.8 A at 125 V DC; DC-12: 2.5 A at 24/48 V DC; AC-12: 5 A at 24/48 V AC 50/60 Hz; AC-12: 5 A at 240 V AC 50/60 Hz; AC-12: 5 A at 380 V AC 50/60 Hz minimum load: 2 mA at 15 V Provided equipment: 1 instruction sheet Offer type: Spare part Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 1.0 cm Package 1 Width: 5.0 cm Package 1 Length: 5.0 cm Package 1 Weight: 63.0 g Unit Type of Package 2: S02 Number of Units in Package 2: 20 Package 2 Height: 15.0 cm Package 2 Width: 30.0 cm Package 2 Length: 40.0 cm Package 2 Weight: 1.594 kg Country of origin: FR Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481186270
- SAP 1200287071
- Code 82255132
Product Documentation
