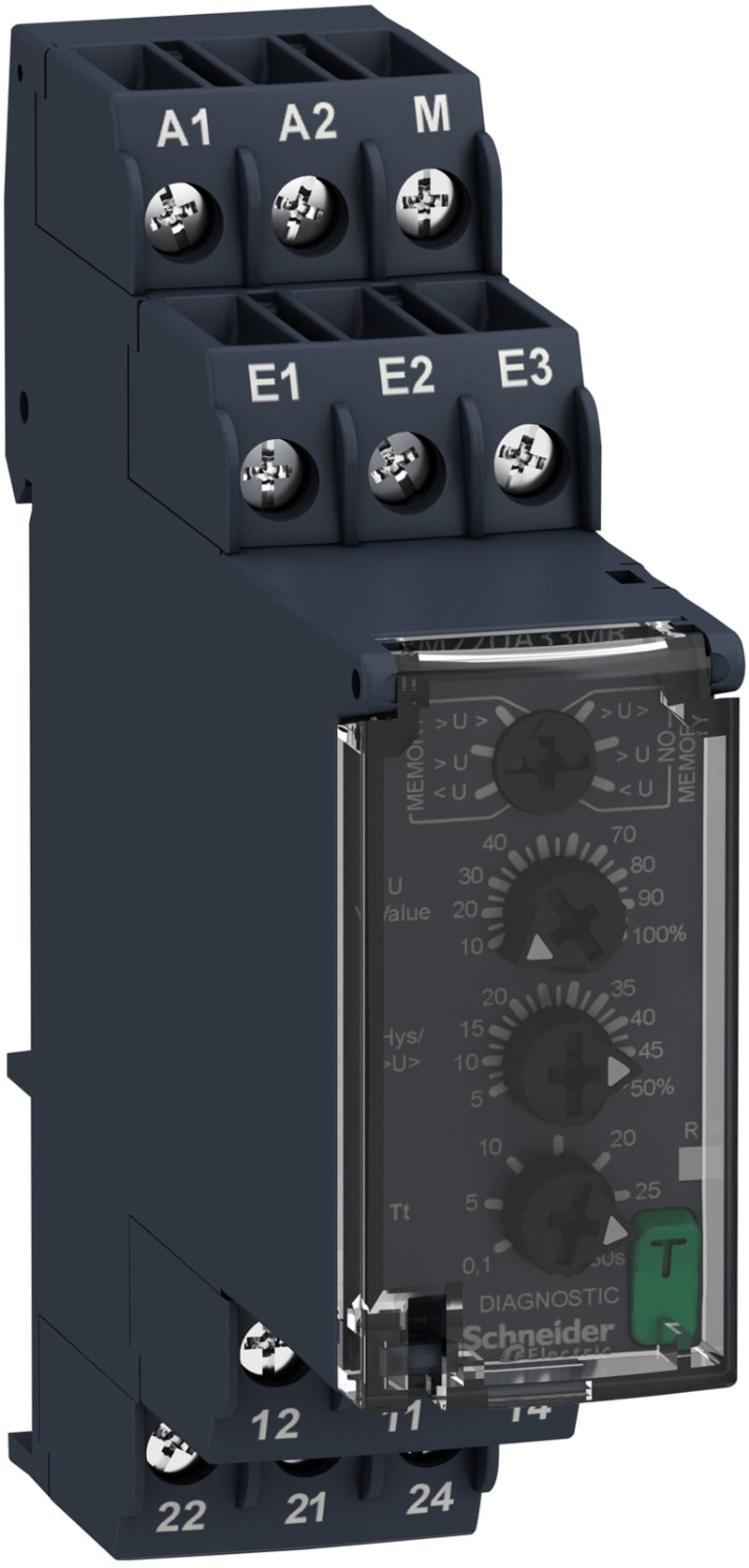

Schneider Electric Modular 1-Phase voltage control relay, 8 A, 2 CO, 15…500 V AC/DC, 24…240 V AC/DC RM22UA33MR

Schneider Electric RM22UA33MR Zelio Control Relay, overvoltage.

Manufacturer part number (MPN)

RM22UA33MR EAN / GTIN: 3606480792250 Sales unit: pcs Package quantity: 40 pcs Range of product: Harmony Control Relays Relay type: Voltage control relay Product or component type: Voltage control relay Relay name: RM22UA Network number of phases: 1 phase Relay monitored parameters: Undervoltage and overvoltage in window mode; Overvoltage or undervoltage detection Supply circuit type: DC Control type: With test button Contacts type and composition: 2 C/O [Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz, non self-powered Supply voltage limits: 20.4…264 V AC/DC Measurement range: 15...500 V AC/DC Hysteresis: 3 % fixed of full scale for window mode; 5…50 % adjustable of threshold setting Repeat accuracy: +/- 0.5 % for input and measurement circuit; +/- 2 % for time delay Measurement error: < 1 % over the whole range with voltage variation; 0.05 %/°C with temperature variation Time delay type: Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- ti

HS Code

8536.49

• EAN 3606480792250
• SAP 1000713433
• Code 8237125
