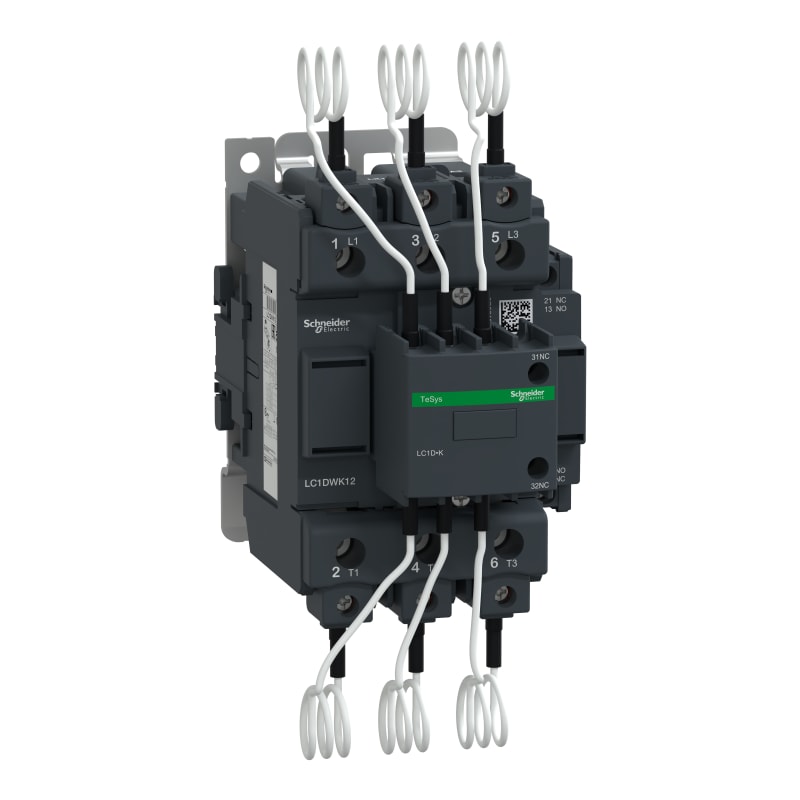

Schneider Electric Capacitor contactor, TeSys D, 63 kVAR at 400 V/50 Hz, coil 220 V AC 50/60 Hz LC1DWK12M7

Schneider Electric LC1DWK12M7 — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options.

Manufacturer part number (MPN)

LC1DWK12M7

EAN / GTIN

3389110060539

HS code

8536.90

Sales unit

pcs

Range

TeSys

Product name

TeSys LC1D.K; TeSys Deca

Product or component type

Capacitor duty contactor

Device short name

LC1DWK

Device application

Control

Contactor application

Power factor correction

Utilisation category

AC-6b

Poles description

3P

power pole contact composition

3 NO

[Ue] rated operational voltage

Power circuit: 690 V AC 50/60 Hz

Reactive power rating

35 kvar at 230 V AC 50 Hz 60 °C; 63 kvar at 400 V AC 50 Hz 60 °C; 67 kvar at 440 V AC 50 Hz 60 °C; 104 kvar at 690 V AC 50 Hz 60 °C; 30 kvar at 230 V AC 60 Hz 60 °C; 60 kvar at 460 V AC 60 Hz 60 °C; 80 kvar at 575 V AC 60 Hz 60 °C

Control circuit type

AC at 50/60 Hz

[Uc] control circuit voltage

220 V AC 50/60 Hz

Auxiliary contact composition

1 NO + 2 NC instantaneous

Electrical durability

300000 cycles at Ue 400 V; 200000 cycles at Ue 690 V

Mounting support

DIN rail; Plate

Standards

EN/IEC 60947-1; EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1

Product certifications

IECEE CB Scheme; UL; CSA; UKCA

Connections - terminals

Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Power circuit: connector 1 4…50 mm² - cable stiffness: solid; Power circuit: connector 2 4…25 mm² - cable stiffness: solid; Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end; Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end; Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end; Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end

Tightening torque

Power circuit: 9 N.m - on connector; Control circuit: 1.7 N.m - on screw clamp terminals

Maximum operating rate

100 cyc/h

Auxiliary contacts type

type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1

IP degree of protection

IP20 front face conforming to IEC 60529

Ambient air temperature for operation

-5…60 °C

Ambient air temperature for storage

-60…80 °C

Operating altitude

0...3000 m

Height

180 mm

Width

85 mm

Depth

154 mm

Product weight

1.65 kg

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

19.000 cm

Package 1 Width

13.200 cm

Package 1 Length

17.000 cm

Package 1 Weight

1.786 kg

Unit Type of Package 2

S06

Number of Units in Package 2

48

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

95.368 kg

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90

• EAN 3389110060539
• SAP 1200500434
• Code 82622701
