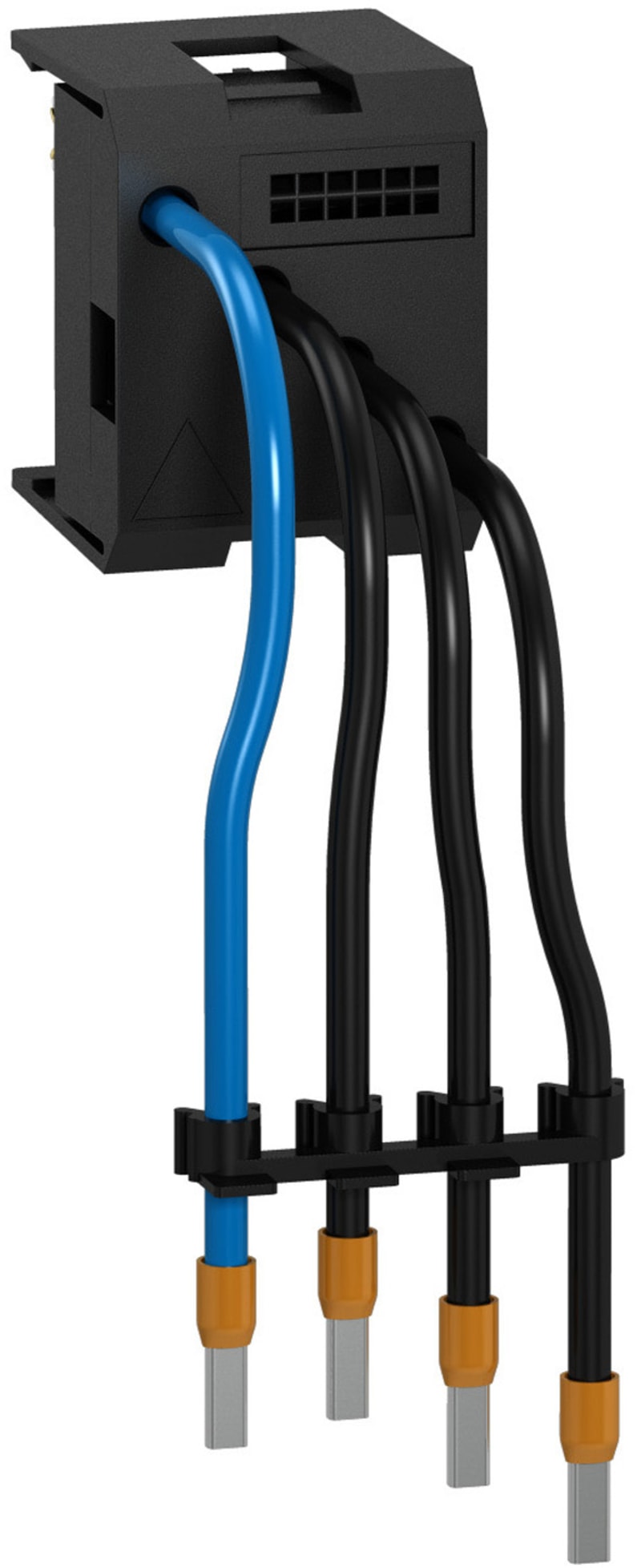

Plug 3L 110 MM (AK5PC13)

Schneider Electric AK5PC13 Busbar Plug 3L 11 mm.

Manufacturer part number (MPN)

AK5PC13

EAN / GTIN

3389110576818

Sales unit

pcs

Package quantity

6 pcs

Range

Linergy

Product name

HK

Product or component type

Plug outlet

Poles description

3P

[Ith] conventional free air thermal current

16 A

I²t on activation

100000 A².s

Number of points

2

Number of cables

3 cable(s) 2.5 mm²

Cable length

0.2 m

Quantity per set

Set of 6

Width

36 mm

Height

46 mm

Depth

38 mm

Product weight

0.04 kg

[Ui] rated insulation voltage

600 V conforming to CSA; 600 V conforming to UL; 690 V conforming to IEC 60439-1

Peak current

25 kA

Standards

IEC 60439

Product certifications

DNV; LROS (Lloyds register of shipping); UL; CSA

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.500 cm

Package 1 Width

9.000 cm

Package 1 Length

12.000 cm

Package 1 Weight

44.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

6

Package 2 Height

12.700 cm

Package 2 Width

13.000 cm

Package 2 Length

15.000 cm

Package 2 Weight

323.000 g

Unit Type of Package 3

S04

Number of Units in Package 3

96

Package 3 Height

30.000 cm

Package 3 Width

40.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

5.937 kg

Country of origin

FR

Warranty (in months)

18

Colour

Grey

RAL-number

7021

With locking

Yes

Protection

None

Number of conductors (without earthing)

3

Phase selection

No

Number of poles

3

Length

36 mm

Degree of protection (IP)

IP20

Branch off type

Cable

Rated voltage AC 50 Hz

400–690 V

Rated current AC 50 Hz

16 A

HS Code

8544.42

• EAN 3389110576818
• SAP 1000010081
• Code 8478557
