Product Description

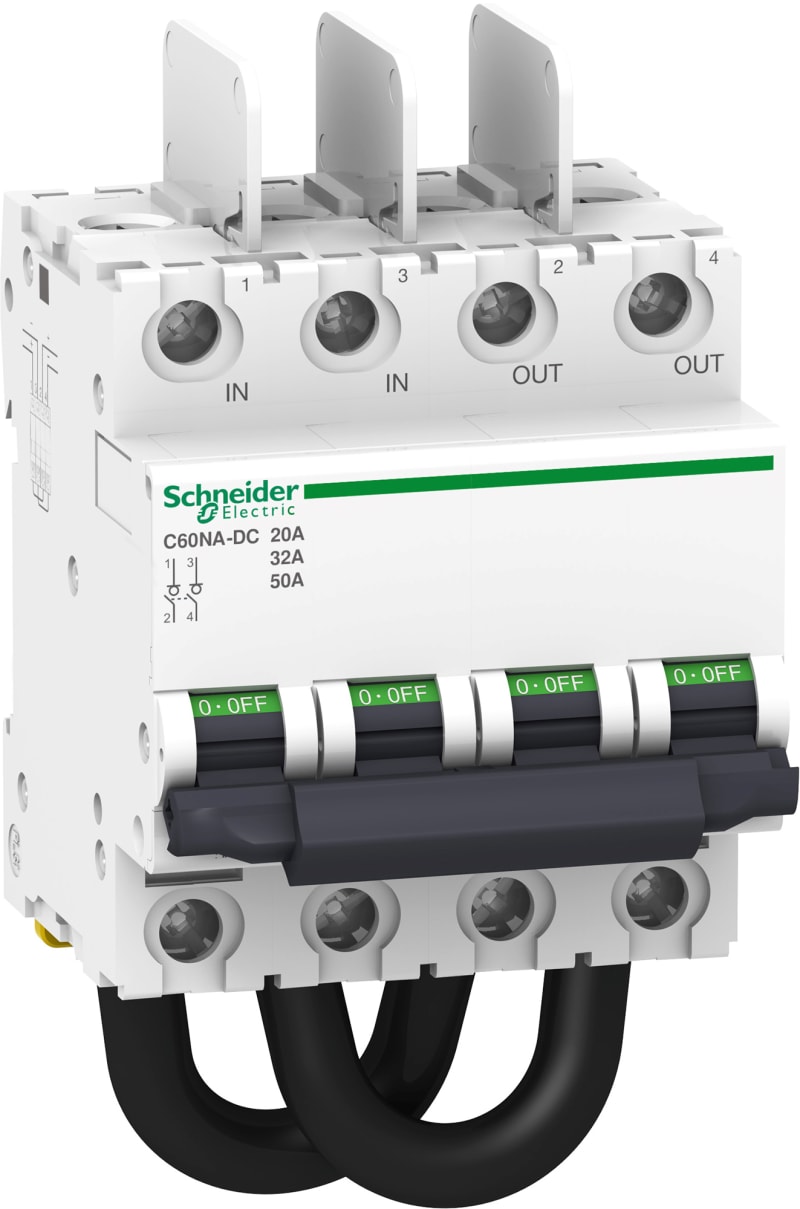

Schneider Electric A9N61690 Acti9 C60 NA-DC 2P 25A 1000VDC Photo Voltaic.
Technical Specifications
- Manufacturer part number (MPN)
- A9N61690
- EAN / GTIN
- 3606480504136
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Voltage
- 1000 V DC
- Rated current
- 20 A
- Number of poles
- 2P
- Range
- Acti9
- Range of product
- C60
- Product or component type
- Switch disconnector
- Product name
- C60
- Device short name
- C60NA-DC
- Switch application
- Photovoltaic PV array; Photovoltaic inverter protection
- Poles description
- 2P
- Utilisation category
- DC-21B
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- [Ie] rated operational current
- 20 A DC-21B 1000 V DC; 32 A DC-21B 800 V DC; 50 A DC-21B 700 V DC
- Voltage Drop
- 100 mV 5.02 mOhm 2 W 20 A; 151 mV 5.02 mOhm 4.53 W 30 A; 201 mV 5.02 mOhm 8.04 W 40 A; 251 mV 5.02 mOhm 12.55 W 60 A
- [Ui] rated insulation voltage
- 1000 V DC
- [Uimp] rated impulse withstand voltage
- 6 kV
- Polarity sensitivity
- No (can protect against bi-directional current)
- Control type
- Toggle
- Local signalling
- ON/OFF indication
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 8
- Height
- 132.7 mm
- Width
- 72 mm
- Depth
- 77.4 mm
- Product weight
- 0.545 kg
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 300 cycles
- Connections - terminals
- Tunnel terminal (upside) 1…35 mm² rigid; Tunnel terminal (upside) 1…25 mm² flexible; Pre-wired cable (downside)
- Wire stripping length
- 14 mm
- Tightening torque
- 3.5 N.m
- Compatibility code
- C60NA-DC
- Standards
- EN/IEC 60947-3
- Pollution degree
- 2
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
- Switching function
- Off switch
- Number of contacts as normally open contact
- 2
- Rated voltage
- 800 V
- Min. rated voltage
- 300 V
- Rated switching capacity
- 1 kA
- Short-circuit breaking capacity (Icw)
- 0.6 kA
- Voltage type
- DC
- With signal lamp
- No
- Colour calotte
- Black
- Width in number of modular spacings
- 4
- Built-in depth
- 77.4 mm
- Degree of protection (IP)
- IP40
- Imprint/indication
- None
- Country of origin
- China
