Emergency stop sign with LED 24V EN
Pricing
Request a quote
We reply within 24 hours
Product Description

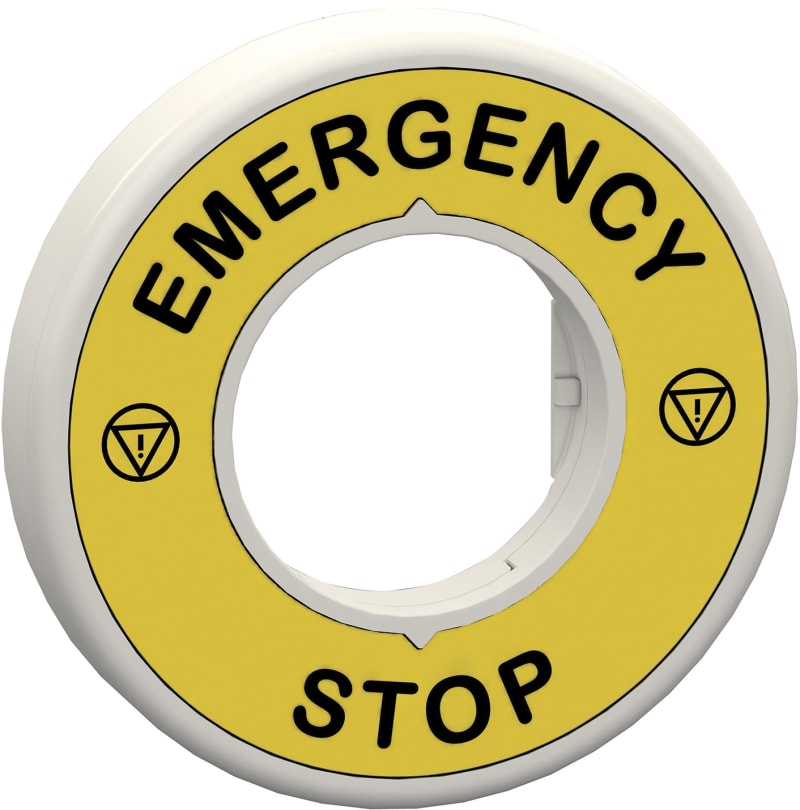

Schneider Electric ZBY9W2B330 Emergency stop sign with red LED 24V AC/DC and marked "EMERGENCY STOP".
Technical Specifications
- Manufacturer part number (MPN)
- ZBY9W2B330
- EAN / GTIN
- 3606489745141
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Voltage
- 24 V
- Range of product
- Harmony
- Product or component type
- Illuminated marked legend ring
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Red
- Operator additional information
- With illuminated ring
- Light source
- Protected LED
- Bulb base
- Integral LED
- Light source colour
- Red
- [Us] rated supply voltage
- 24 V AC/DC at 50/60 Hz
- Device presentation
- Intermediate ring
- Accessory / separate part destination
- Emergency stop mushroom head push-button
- Material
- Plastic
- Marking
- Black EMERGENCY STOP on yellow background
- Label dimensions
- Ø 60 mm
- User language
- English
- Height
- 60 mm
- Width
- 9.3 mm
- Product weight
- 0.016 kg
- Electrical insulation class
- Class II conforming to IEC 61140
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- [Ui] rated insulation voltage
- 24 V (pollution degree 3) conforming to IEC 60947-1
- Signalling type
- Steady
- Supply voltage limits
- 19.2…30 V DC; 21.6…26.4 V AC
- Current consumption
- 18 mA
- Service life
- 100000 h at rated voltage and 25 °C
- Surge withstand
- 1 kV conforming to IEC 61000-4-5
- Compatibility code
- XB4; XB5
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50E; Type 12 conforming to UL 50E; Type 4 conforming to UL 50E; Type 4X conforming to UL 50E
- IK degree of protection
- IK05 conforming to IEC 62262
- Standards
- CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C8201-5-1; JIS C8201-1
- Product certifications
- UL listed; CSA
- Vibration resistance
- 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27
- Resistance to fast transients
- 2 kV conforming to IEC 61000-4-4
- Resistance to electromagnetic fields
- 10 V/m conforming to IEC 61000-4-3
- Resistance to electrostatic discharge
- 4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
- Electromagnetic emission
- Class B conforming to IEC 55011
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Country of origin
- ID
- Warranty (in months)
- 18
- Colour
- Yellow
- Outer diameter
- 60 mm
- Shape
- Round
- Literal imprint
- Emergency Stop
- Language of the imprint
- English
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606489745141
- SAP 1200334127
- Code 82320427
