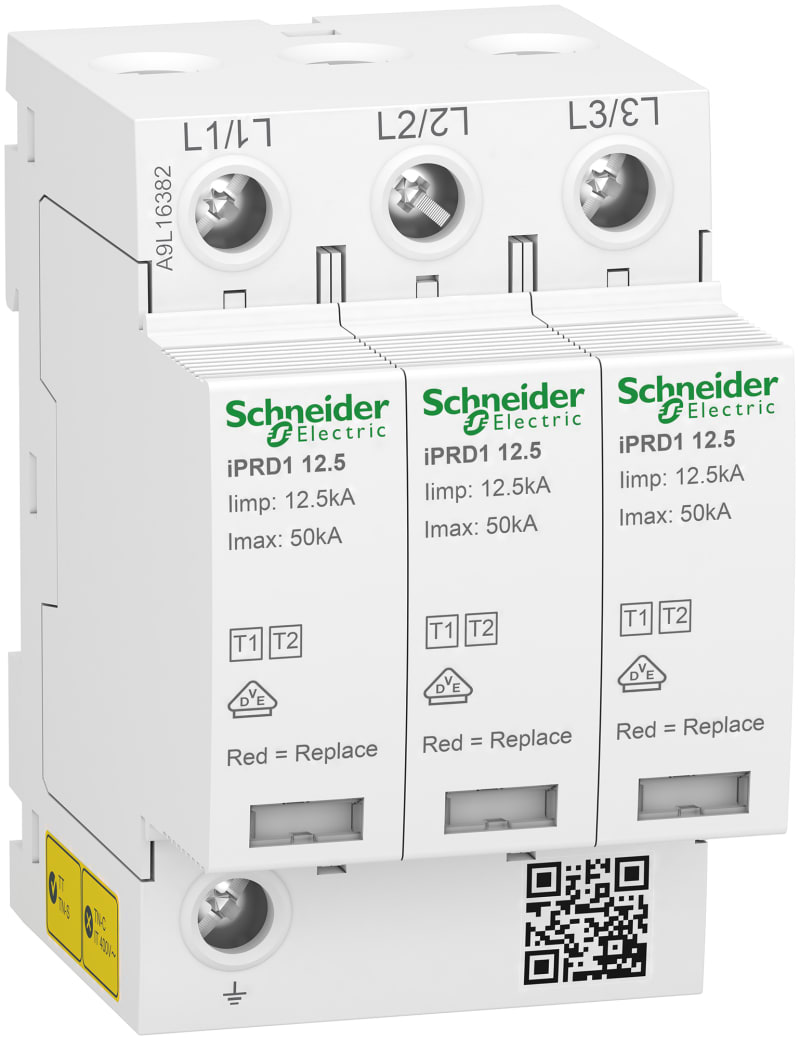

Schneider Electric Modular surge arrester with pluggable cartridge, ACTI9 IPRD1 12.5, 3 P, 350 V, with remote transfert A9L16382

Schneider Electric A9L16382 Modular surge protection device, Acti9 iPRD1 12.5, 3 P, 350 V, with signal contact.

Manufacturer part number (MPN)

A9L16382

EAN / GTIN

3606481490216

Sales unit

pcs

Package quantity

4 pcs

Number of poles

3P

Range of product

IPRD1

Product name

Acti9 iPRD1

Product or component type

Surge arrester with pluggable cartridge

Device short name

iPRD1 12.5

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Quality labels

CE; EAC; VDE

Poles description

3P

Remote signalling

With

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Earthing system

TN-C

Surge arrester class type

Type 1 + 2

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

400 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

20 kA

Maximum discharge current

50 kA

[Iimp] impulse current

Common mode: 12.5 kA L/PE

[Uc] maximum continuous operating voltage

Common mode: 350 V L/PE

Maximum [Up] voltage protection level

1.5 kV type 1 + 2

Residual current

0.9 mA L/PE

[Out] temporary overvoltage

442 V L/PE 120 min withstand; 1455 V L/PE 200 ms safe failure mode

Disconnector device type

Associated fuse gG 160 A 120 kA standard; Associated circuit breaker Compact NSX160E 80 A 25 kA standard

Local signalling

Operating: mechanical indicator (white); End of life: mechanical indicator (red)

Mounting mode

Clip-on (DIN rail)

9 mm pitches

6

Height

89 mm

Width

54 mm

Depth

69 mm

Product weight

486 g

Colour

White (RAL 9003)

Material

PA6

Connections - terminals

Tunnel type terminal (phase) 10…25 mm² flexible; Tunnel type terminal (phase) 10…35 mm² rigid; Tunnel type terminal (earth) 16…25 mm² flexible; Tunnel type terminal (earth) 16…35 mm² rigid

Wire stripping length

14 mm

Tightening torque

3.5 N.m

Impulse current

12.5 kA

Compatibility code

IPRD1

Market segment

Small commercial; Residential

IK degree of protection

IK05 conforming to IEC 62262

Pollution degree

3

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

4

Number of Units in Package 3

12

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

6 modular spacing

Voltage protection level

1.5 kV

Max. continuous voltage AC

350 V

Nominal voltage AC

400 V

Test class

Type 1 + 2

Voltage protection level L-N

1.5 kV

Signalling at the device

Optical

Degree of protection (IP)

IP20

Voltage protection level N-PE

1.5 kV

Integrated backup fuse

No

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. conductor cross section flexible (fine-strand)

25 mm²

System configuration DC

No

System configuration IT

No

System configuration TN

No

System configuration TN-C

Yes

System configuration TT

No

System configuration other

No

Voltage switching spark gap technology

No

Country of origin

China

HS Code

8536.30
