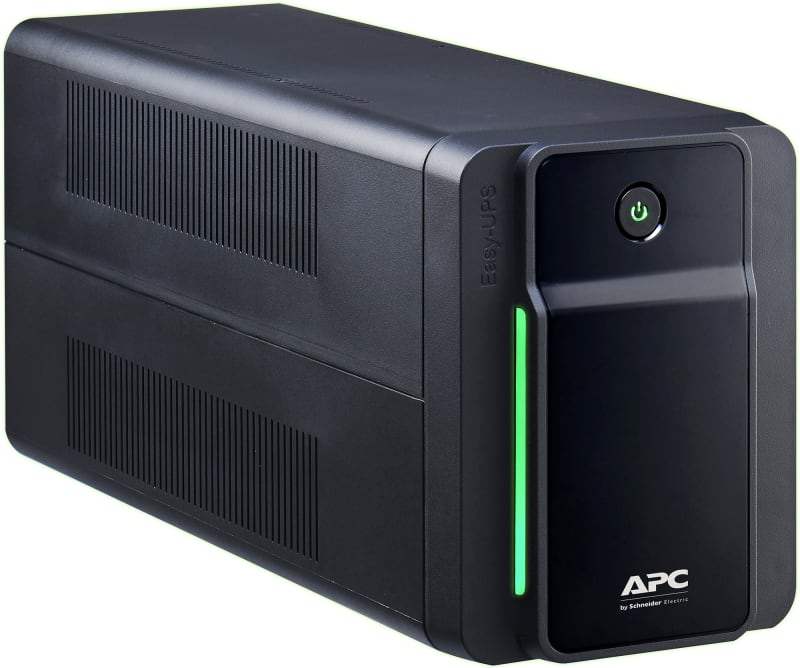

Schneider Electric APC Easy UPS BVX700LI 700 VA Tower 230 V 4× C13

Schneider Electric BVX700LI is an APC Easy UPS BVX tower rated 700 VA / 360 W at 230 V, with four IEC 60320 C13 outputs and automatic voltage regulation (AVR). Line-interactive topology with stepped-approximation waveform and 6 ms typical transfer time; half-load runtime 6 min at 180 W; internal 7.0 Ah lead-acid battery. LED status display; floor-mount tower, 4.2 kg, 138 × 98 × 310 mm.

Manufacturer part number (MPN)

BVX700LI

EAN / GTIN

0731304404484

Sales unit

pcs

Main input voltage

230 V AC 1 phase

Input connection

IEC 60320 C14

Cos phi

0.51

Efficiency at full load

140...300 V 230 V AC

Input frequency

50/60 Hz +/- 5 Hz auto sensing

Output voltage

230 V AC 1 phase

Rated power in W

360 W

Rated power in VA

700 VA

Output connection

4 IEC 60320 C13

Type of USB power supply

None

Maximum configurable power in VA

700 VA

Maximum configurable power in W

360 W

Transfer time

6 ms typical : 10 ms maximum

UPS topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Full load runtime

00:00:01 360 W

Half load runtime

00:06:00 180 W

Output frequency

50/60 Hz +/- 1 Hz sync to mains

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery capacity

7.0 Ah

Battery type

Lead-acid internal included

Control panel

LED Status display with on line : on battery

Surge energy rating

273 J

Cable length

1.2 m

Number of cables

1

Color

Black

Height

138 mm

Width

98 mm

Depth

310 mm

Product weight

4.2 kg

Mounting support

Floor

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Provided equipment

User manual

Max runtime

120 min

Number of power module filled slots

0

Number of power module free slots

0

Redundant

No

Range of product

Easy UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

CE; CB

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…40 °C

Storage altitude

0…3000 m

IP protection

IP20

Relative humidity

0…95 % non-condensing

Storage relative humidity

0…95 % non-condensing

Acoustic level

40 dBA

Operating altitude

0...3000 m

Battery voltage

12 V

Battery graph comment

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Extendable runtime

0

Included battery module

0

Empty battery slot

0

Typical recharge time

8 h

Battery life

2…3 year(s)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.8 cm

Package 1 Width

31 cm

Package 1 Length

13.8 cm

Package 1 Weight

4.2 kg

SCC14

10731304404481

Country of origin

CN

Warranty (in months)

24

HS Code

8504.40
