TILK.1000A-HOR.RAIL 5MM/Linergy LGYE
Pricing
Request a quote
We reply within 24 hours
Product Description

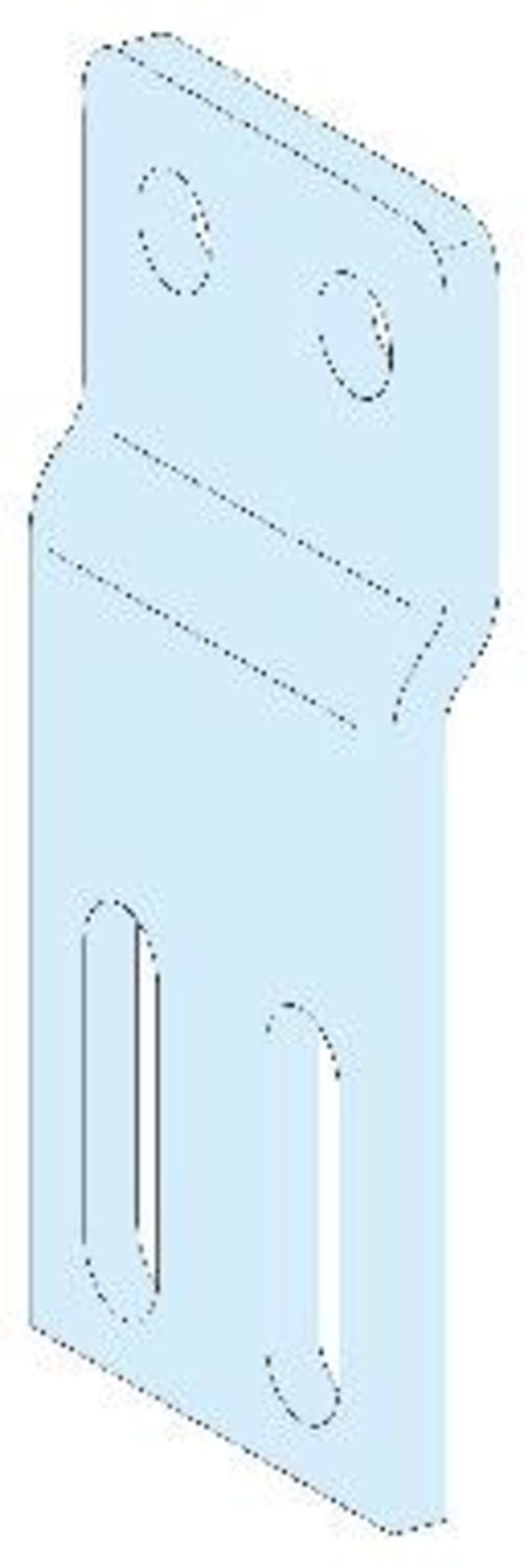

Schneider Electric LVS04634 Connection Plate between 5mm horizontal busbar and vertical Linergy LGYE-1000A-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04634
- EAN / GTIN
- 3606481868039
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Connection
- Product name
- Linergy LGY
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar; 5 mm horizontal busbar
- installation description
- Cubicle duct - width 300 mm
- [Ie] rated operational current
- 1000 A
- Product weight
- 0.32 kg
- Quantity per set
- Set of 1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.000 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 11.000 cm
- Package 1 Weight
- 340.000 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 10
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.740 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 80
- Package 3 Height
- 28.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 41.200 kg
- Warranty (in months)
- 18
- Type of connection
- Field/field
- Rated current
- 1000 A
- Number of poles
- 1
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868039
- SAP 1200546996
- Code 82880269
Product Documentation
