Emergency stop head for LED with sign EN

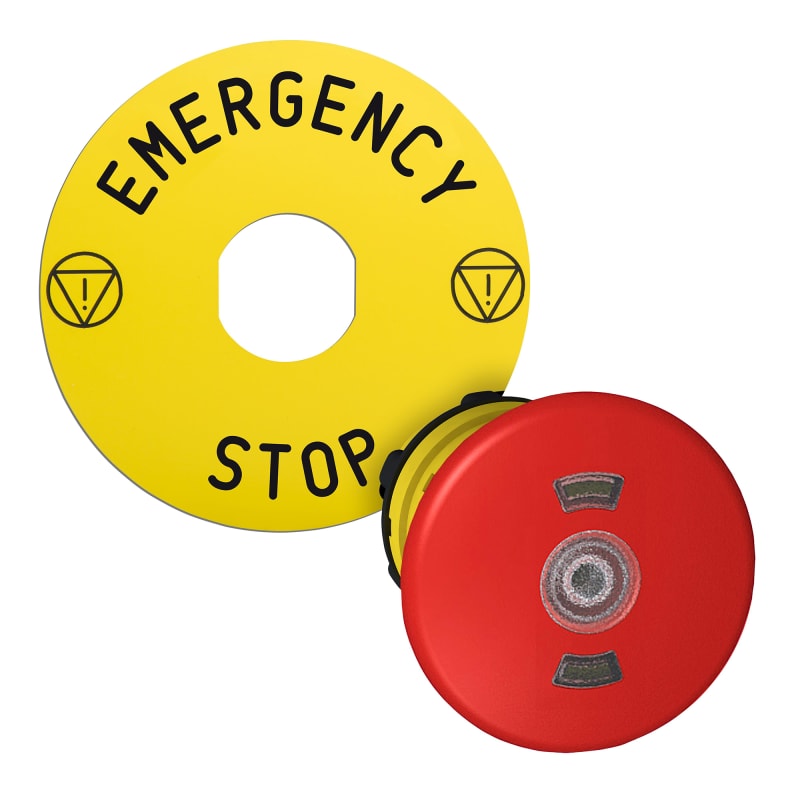

Schneider Electric ZB5AT8643M330 Emergency stop head Ø40 push/pull for LED with sign Ø60 marked "EMERGENCY STOP".

Manufacturer part number (MPN)

ZB5AT8643M330 EAN / GTIN: 3606481186201 Sales unit: pcs Range of product: Harmony XALF; Harmony XB5 Product or component type: Head for illuminated emergency stop push-button Device short name: ZB5 Bezel material: Plastic Mounting diameter: 22 mm Sale per indivisible quantity: 1 Shape of signaling unit head: Round Type of operator: trigger action and mechanical latching with mechanical state indicator Reset: Push-pull Operator profile: Red mushroom Ø 40 mm, unmarked CAD overall width: 40 mm CAD overall height: 40 mm CAD overall depth: 59 mm Product weight: 0.034 kg Mechanical durability: 500000 cycles Station name: XALD 1 cut-out; XALK 1 cut-out Electrical composition code: M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; MR1 for <2 contacts using single blocks in rear mounting with integral LED Product compatibility: Integral LED Compatibility code: ZB5 Protective treatment: TH Ambient air temperature for storage: -40…70 °C Ambient air temperature for operation: -40…70 °C Overvoltage category: Class II conforming to IEC 60536 IP degree of protection: IP54 conforming to IEC 60529 Enclosure Type: UL type 4X/13 Resistance to high pressure washer: 7000000 Pa at 55 °C, distance : 0.1 m IK degree of protection: IK05 conforming to IEC 50102 Standards: IEC 60947-1; GB 14048.5; UL 508; IEC 60947-5-4; ISO 13850; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-5-1; IEC 60204-1; JIS C8201-1 Product certifications: CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed Vibration resistance: 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 Shock resistance: 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 Number of Units in Package 1: 1 Warranty (in months): 18 Hole diameter: 22.5 mm Colour button: Red Suitable for lighting: Yes Spring-return: Yes Diameter cap: 22 mm Suitable for emergency stop: Yes Type of button: Flat With lighting: Yes material front ring: Plastic With front ring: Yes Construction type lens: Round Switching function latching: No Country of origin: Czechia

HS Code

3926.90

• EAN 3606481186201
• SAP 1200501160
• Code 82624737
