APC EasyUPS SRV 240V Bat pack
Pricing
Request a quote
We reply within 24 hours
Product Description

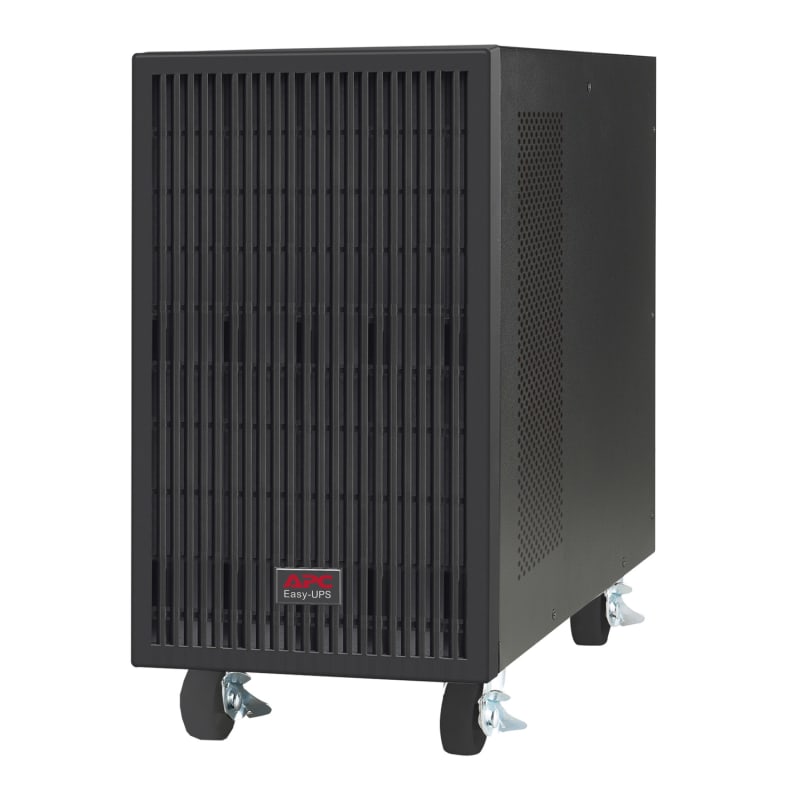

Schneider Electric SRV240BP-9A APC Easy UPS On-Line SRV battery pack for 6/10 kVA extended-runtime models, 240 V.
Technical Specifications
- Manufacturer part number (MPN)
- SRV240BP-9A
- EAN / GTIN
- 0731304343349
- Sales unit
- pcs
- Voltage
- 240 V
- Product or component type
- External battery pack
- battery type
- Lead-acid battery
- Provided equipment
- User manual; Battery cable
- Range of product
- Easy UPS On-Line
- Number of battery blocks per string
- 20
- Device mounting
- Floor mounted
- Number of battery filled slots
- 0
- Number of battery free slots
- 0
- Battery voltage
- 240 V
- Colour
- Black
- Height
- 368 mm
- Width
- 190 mm
- Depth
- 485 mm
- Product weight
- 60 kg
- mounting mode
- Not rack-mountable
- USB compatible
- No
- Product certifications
- CE; UKCA; EAC; EN/IEC 62040-1
- Ambient air temperature for operation
- 0…40 °C
- Relative humidity
- 0…95 % non-condensing
- Operating altitude
- 0...3000 m
- Ambient air temperature for storage
- -15…40 °C
- Storage Relative Humidity
- 0…95 % non-condensing
- Storage altitude
- 0…15000 m
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 60.000 cm
- Package 1 Width
- 80.000 cm
- Package 1 Length
- 60.000 cm
- Package 1 Weight
- 67.999 kg
- Country of origin
- CN
- Warranty (in months)
- 24
- Nominal voltage
- 240 V
- Weight
- 60000 g
- Size indication
- Block
- Capacity
- 9000 mAh
- Plastic housing
- No
- Length
- 485 mm
- Suitable for EX-applications
- No
- Ambient temperature
- 0–40 °C
- Suitable for rapid charger
- No
- Height including pole
- 368 mm
- Battery pack
- No
- Number of cells
- 2
Standards & Compliance
- HS Code
- 8507.20
Cross References
- EAN 0731304343349
- SAP 1200960903
- Code 84257156
Product Documentation
More from Schneider Electric
Schneider Electric
Changeover Switch, INS630 4P
31155
Schneider Electric
Schneider Electric Symmetric C-shaped rails 40X20X24. Length 2000MM. Supply: 20 rails 2M. NSYCN40
Schneider Electric
SOPP Push-Button Head RED Ø60mm
ZB4BR4
Schneider Electric
Schneider Electric PanelSet S3DEX (ATEX certified) H700XW500XD250 .IP66 IK10 RAL7035. NSYS3DEX7525
Schneider Electric
Schneider Electric LVS04924 Form 2 Lateral Barrier, Vertical 1600 A
Schneider Electric
Busbar Linergy BW 250A 3P L1400 G/P
LVS04117
Schneider Electric
Schneider Electric variable speed drive ATV630 - 3kW - 380...480V - IP21/UL type 1 ATV630U30N4
Schneider Electric

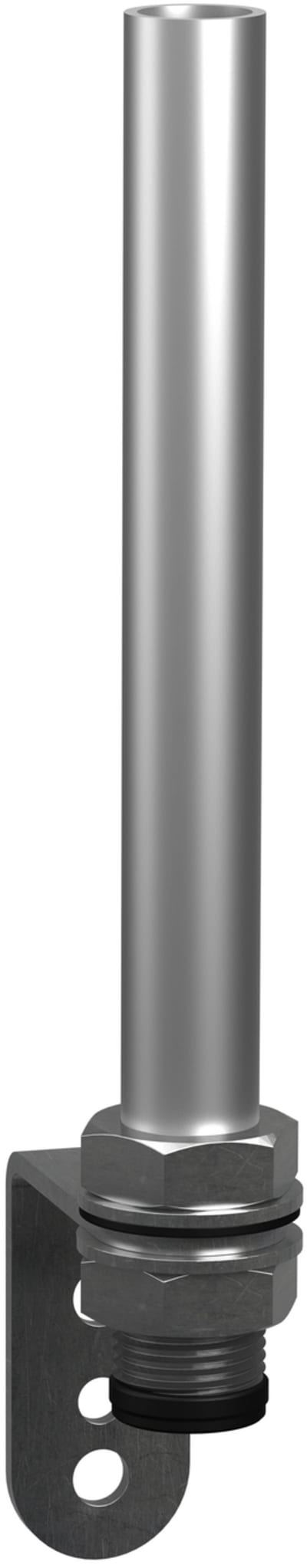

Schneider Electric Universal Mounting Accessory, Harmony XV4/XV6/XVB7 Modular Tower Light, Metal L Bracket & 250mm Alu Pole XVZ250T
