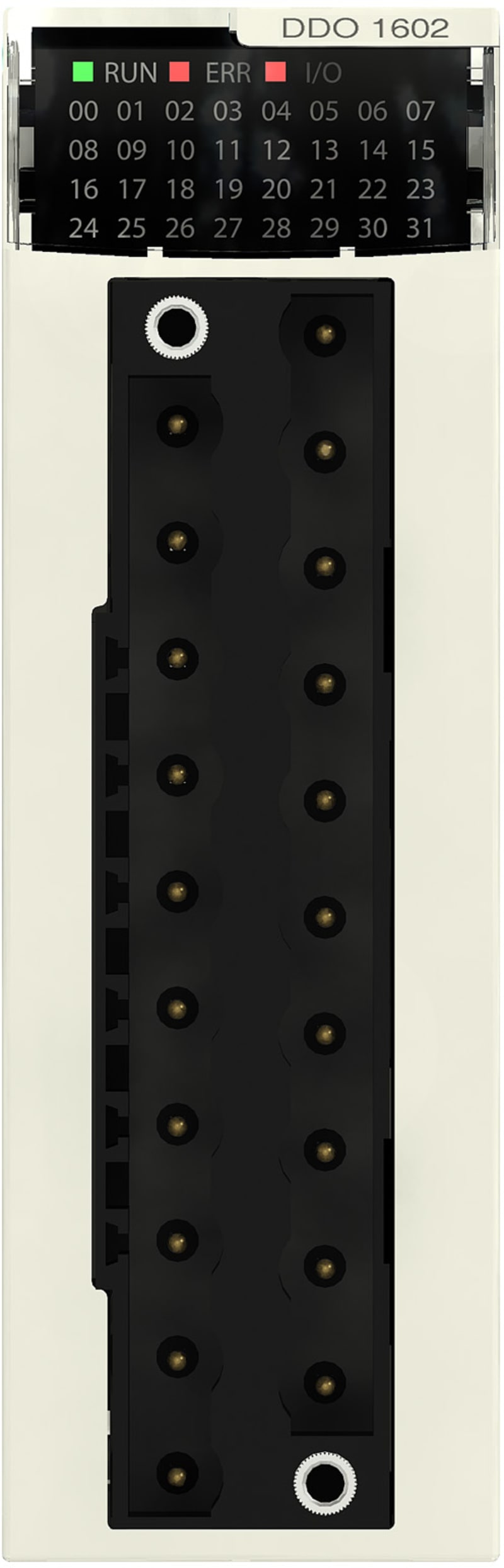

Schneider Electric discrete output module X80 - 16 outputs - 24 V DC positive BMXDDO1602

Schneider Electric BMXDDO1602 M340 16 out digital, transisitor, 0.5A, FTB.

Manufacturer part number (MPN)

BMXDDO1602

EAN / GTIN

3595863910469

Sales unit

pcs

Package quantity

15 pcs

Range of product

Modicon X80

Product or component type

Discrete output module

Discrete output logic

Positive

Response time on output

1.2 ms

Maximum voltage drop

<1.2 V at state 1

Insulation resistance

> 10 MOhm 500 V DC

Current per channel

0.625 A

Maximum current per module

10 A

Paralleling of outputs

Yes : 2 maximum

Switching frequency

0.5/LI² Hz

Load impedance ohmic

> 48 Ohm

Reverse polarity protection

Reverse mounted diode

MTBF reliability

410000 H

Protection type

External fuse reverse polarity protection; short-circuit protection; overload protection; overvoltage protection

Voltage detection threshold

18 V DC preactuator at state 0

Product weight

0.12 kg

IP degree of protection

IP20

Protective treatment

Standard version

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Dielectric strength

1500 V AC at 50/60 Hz 1 minute, output/ground; 1500 V AC at 50/60 Hz 1 minute, output/internal logic

Relative humidity

5…95 % at 55 °C without condensation

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.600 cm

Package 1 Width

11.000 cm

Package 1 Length

12.000 cm

Package 1 Weight

145.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

2.516 kg

Unit Type of Package 3

P06

Number of Units in Package 3

240

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

40.264 kg

Country of origin

ID

Warranty (in months)

18

Power consumption

6 W

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital outputs

16

Digital inputs configurable

No

Digital outputs configurable

Yes

Input current at signal 1

0.65 mA

Permitted voltage at input

24 V

Type of voltage (input voltage)

DC

Type of digital output

Transistor

Output current

0.5 A

Permitted voltage at output

24 V

Type of output voltage

DC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Time delay at signal change

1.2 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

33 mm

Height

100 mm

Depth

150 mm

HS Code

8538.90
