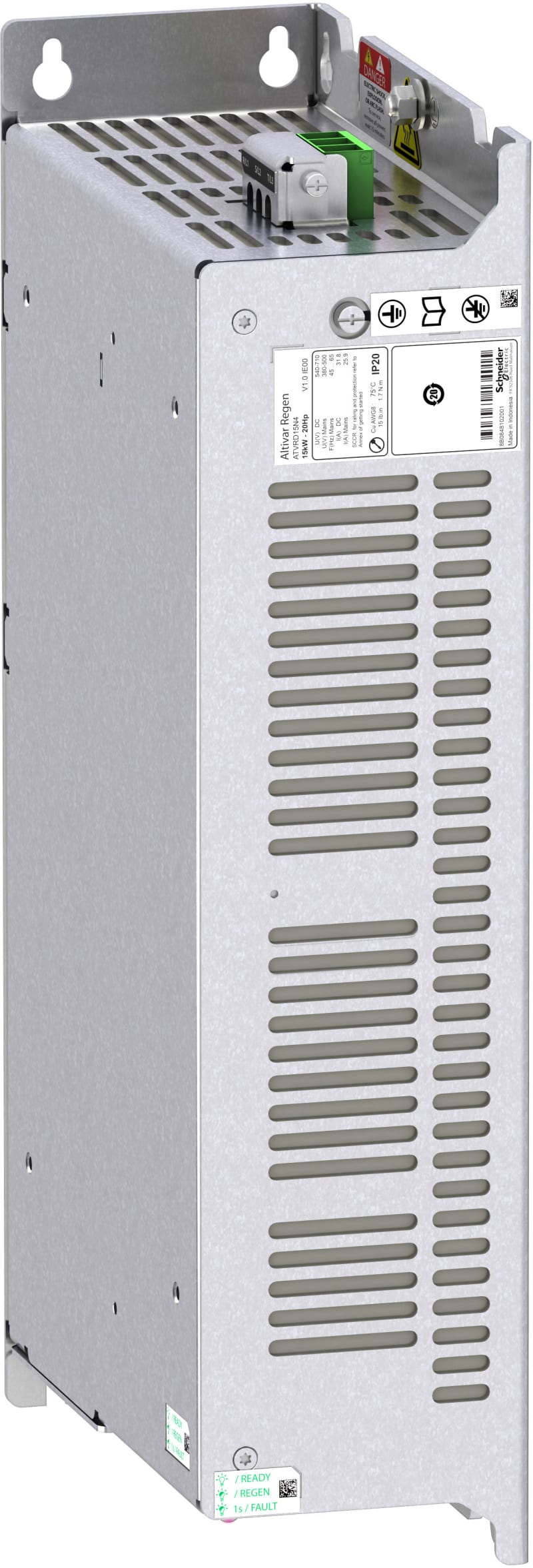

Regeneringsmodul 15kW ATV320,340,900

Schneider Electric ATVRD15N4 — Altivar variable-frequency drive. IGBT variable-frequency drive for AC motor speed control. Regenereringsmodul 15kW for ATV320 / 340/900 can sette energy tilbake on the mains 3 pcs can is connected parallelt.

Manufacturer part number (MPN)

ATVRD15N4

EAN / GTIN

3606481144225

Sales unit

pcs

Power

15 kW

Range of product

Altivar

Range compatibility

Altivar Machine ATV340; Altivar Machine ATV320; Altivar Process ATV900

Product or component type

Power module

Device application

Energy regeneration

[Us] rated supply voltage

380...500 V - 15...10 %

[Ue] rated operational voltage

456...778 V DC

Rated power in W

13.5 kW

Network frequency

45...65 Hz

Network number of phases

3 phases

fixing mode

By screws

Maximum voltage drop at rated load

3 %

Electrical connection

Control: removable screw terminal block: 0.5...1.5 mm², 20 AWG...16 AWG (bottom); Power supply: removable screw terminal block: 6 mm², 8 AWG (top); DC bus: removable screw terminal block: 6 mm², 8 AWG (bottom)

Input current

31.8 A at 380 V AC for voltage inputs (continuous); 27.9 A at 500 V AC for voltage inputs (continuous); 43.1 A at 380 V AC for voltage inputs (transient for 60 s); 36.3 A at 500 V AC for voltage inputs (transient for 60 s)

Input power

13.5 kW at 380...500 V AC for voltage inputs (continuous); 20.3 kW at 380...500 V AC for voltage inputs (transient for 60 s)

Maximum DC bus voltage

300...880 V DC

Output current

25.9 A at 380 V AC (continuous); 23.2 A at 500 V AC (continuous); 36.5 A at 380 V AC (transient for 60 s); 29.7 A at 500 V AC (transient for 60 s)

Width

105 mm

Height

399 mm

Depth

235 mm

Product weight

11.5 kg

Standards

IEC 61800-3; IEC 61800-5-1

Product certifications

cUL

Ambient air temperature for operation

-10…50 °C without derating; 50…60 °C with derating factor

Ambient air temperature for storage

-40…70 °C

Operating altitude

<= 1000 m without derating; 1000...3000 m with power derating 1 % per 100 m

Operating position

Vertical or horizontal position

Type of cooling

Fan

Environmental characteristic

Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3; Dust pollution resistance class 3S2 conforming to IEC 60721-3-3

Pollution degree

2 conforming to IEC 61800-5-1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

21.000 cm

Package 1 Width

32.000 cm

Package 1 Length

61.000 cm

Package 1 Weight

13.565 kg

Unit Type of Package 2

P06

Number of Units in Package 2

4

Package 2 Height

75.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

67.260 kg

Country of origin

ID

Warranty (in months)

18

Accessory

Yes

Spare part

No

HS Code

8504.40

• EAN 3606481144225
• SAP 1200062743
• Code 81905604
