Prefab.Connection NS630B-1000/LGY Horizontal 3P P
Pricing
Request a quote
We reply within 24 hours
Product Description

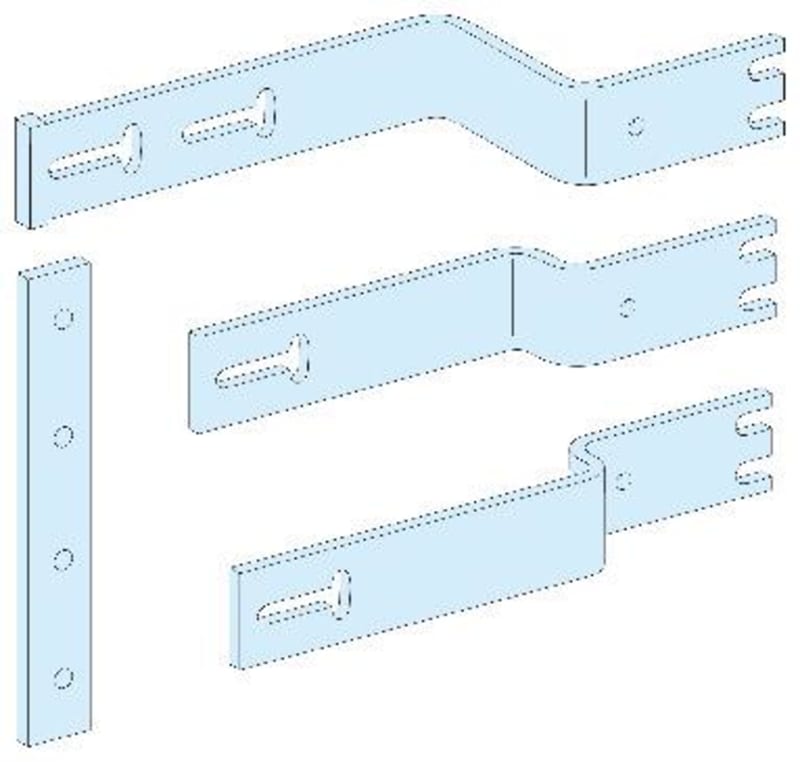

Schneider Electric LVS04473 Prefabricated connection for fast-horizontal mounted NSX630b-1000 for Linergy LGY 3P -PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04473
- EAN / GTIN
- 3606481867711
- Sales unit
- pcs
- Number of poles
- 3P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 3P
- installation description
- Cubicle - width 650 mm; Cubicle + duct - width 650 mm
- Installed device
- ComPact: fixed NS630b...1000 - control: toggle horizontal installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle horizontal installation
- [Ie] rated operational current
- 1000 A
- Busbar cross section
- 50 x 8 mm
- Product weight
- 4.66 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle horizontal 3P 1 rear connection 7; 650 mm 800 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 rear connection 7; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 3P 1 front connection 7; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed toggle horizontal 3P 1 connection transfer assembly 8; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 front connection 7; 650 mm 400 mm PrismaSeT P cubicle + duct ComPact NS630b...1000 fixed direct front rotary handle horizontal 3P 1 connection transfer assembly 8
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.500 cm
- Package 1 Width
- 14.000 cm
- Package 1 Length
- 39.000 cm
- Package 1 Weight
- 4.652 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 64
- Package 2 Height
- 36.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 311.728 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 1000 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867711
- SAP 1200547126
- Code 82880297
Product Documentation
