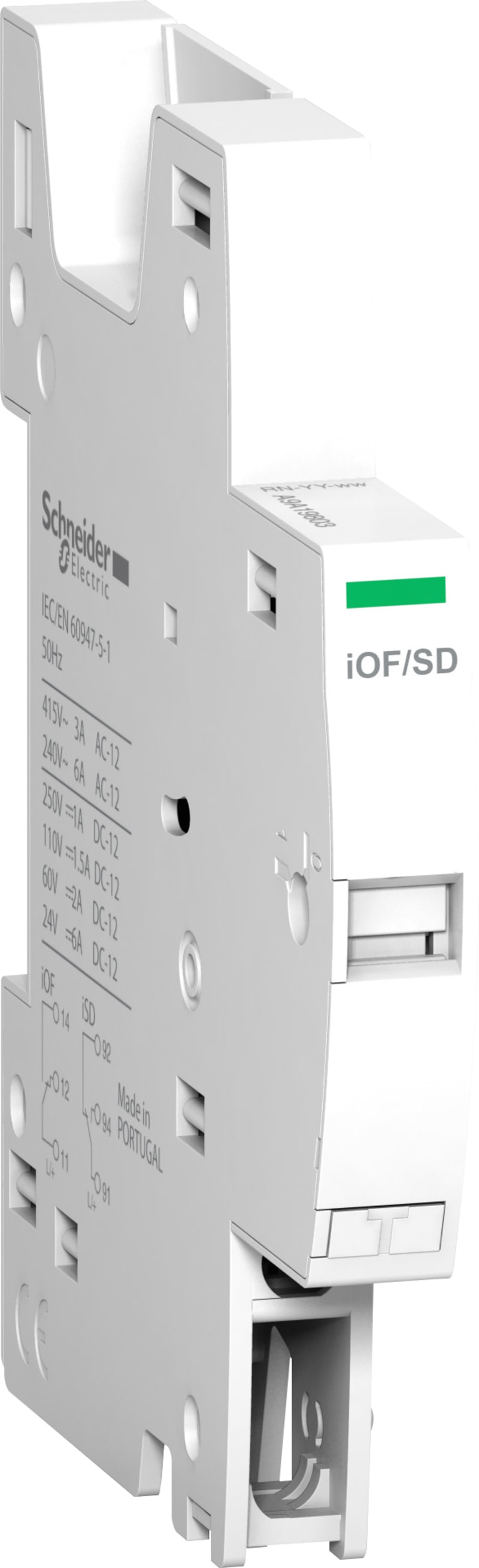

Schneider Electric ACTI9 IC60 RCBO - low level auxiliary contact - 1OF/SD Smartlink - 24V DC A9A19804
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9A19804 OF/SD selectable function hjelpe-/fault signal contact for iC60 RCBO residual current circuit breaker with overcurrent with Ti24 connection.
Technical Specifications
- Manufacturer part number (MPN)
- A9A19804
- EAN / GTIN
- 3606481158079
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- range of product
- Acti9
- Product or component type
- OC or fault contact
- Device short name
- iOF+SD 24
- Device application
- For Smartlink interface
- Signal contacts composition
- 1 C/O
- [In] rated current
- 2…100 mA at 24 V, DC
- 9 mm pitches
- 1
- Standards
- EN/IEC 60947-5-1; EN/IEC 60947-5-4
- Range compatibility
- Acti9 iC60 RCBO; Acti9 Smartlink
- Local signalling
- Mechanical indicator
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- Height
- 86 mm
- Width
- 9 mm
- Depth
- 71 mm
- Product weight
- 30 g
- Colour
- White
- Connections - terminals
- Spring-loaded terminal Ti24: 1 cable(s) 0.5…1.5 mm² - rigid; Spring-loaded terminal Ti24: 1 cable(s) 0.5…1.5 mm² - flexible
- Wire stripping length
- 10 mm
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 72
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481158079
- SAP 1200022329
- Code 81407061
