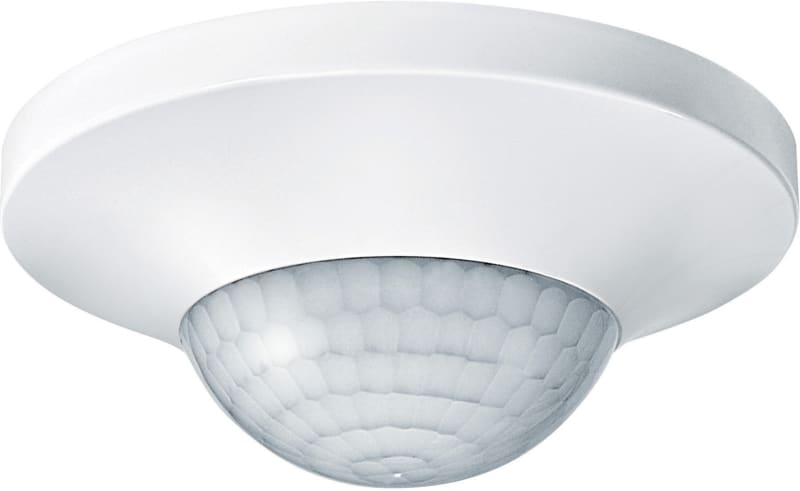

Schneider Electric MTN5510-1519 ARGUS Presence Detector Master IR DALI Polar White

ARGUS presence detector master unit with passive infrared sensing and a DALI communication port, in polar white (RAL 9010) glossy thermoplastic. Ceiling-mounted lighting control with 360° detection angle, adjustable light-intensity threshold from 10 to 1000 lux and a lateral reach of up to 7 m at 2.5 m mounting height. 230 V AC supply, IP20, integrated staircase-light controller and remote-control support.

Manufacturer part number (MPN)

MTN5510-1519

EAN / GTIN

3606480467448

Sales unit

pcs

Package quantity

8 pcs

Range

Merten

Product or component type

Presence detector

Device presentation

Complete product

Colour tint

Polar white (RAL 9010)

Device application

Lighting

Technology type

Electronic

Device mounting

Ceiling

fixing mode

By screws and claws

Communication port protocol

DALI

Material

Thermoplastic

Surface finish

Glossy

[Ue] rated operational voltage

220/230 V

Network type

AC

Network frequency

50/60 Hz

Rated current

30 mA

Detection angle

360°

Light intensity adjustment

10…1000 lux

Mounting height

2.5 m

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.000 cm

Package 1 Width

14.200 cm

Package 1 Length

18.000 cm

Package 1 Weight

319.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

8

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.060 kg

Warranty (in months)

18

Nominal voltage

230 V

Mounting method

Flush-mounted

Colour

White

Model

Presence detector

Halogen free

Yes

Connection type

Screwed terminal

Surface protection

Untreated

Creep-under protection

Yes

Voltage type

AC

Frequency

50–60 Hz

With remote control

Yes

Staircase light controller

Yes

Bridging switch

No

Suitable for wireless transmission

No

Material quality

Thermoplastic

Max. reach frontally

7 m

Max. reach sideways

7 m

Temperature

0–25 °C

Max. starting current

10 A

Response value sensitivity adjustable

No

Dim function with dimmer basic element

No

Response value luminosity

10–1000 lx

Suitable for C-load

Yes

Diameter reach on floor

14 m

Remote operation

Yes

HVAC-control

No

Constant light control

Yes

Substation input

No

RAL-number (similar)

9010

With signal unit

No

Control current

30 mA

Teach-function for response value luminosity

No

Networkable

Yes

Forced switch off

No

Scan angle

360 °

With connection cable

No

Degree of protection (IP)

IP20

With alarm function

No

Transparent

No

Animal zone

No

Surface finishing

Glossy

Detection angle horizontal

0–360 °

Min. switch-on time

10 s

Max. duty cycle

30 min

Suitable for wall mounting

No

Response value luminosity adjustable

Yes

Optimum mounting height

2.5 m

Number of switching zones

136

With DALI interface

Yes

IFTTT support available

No

Forced switch on

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Compatible with Casambi

No

Background monitoring

No

With acoustic sensor

No

Movement sensor/presence detector technology

Passive infrared

Min. starting current

0 A

Min. depth of built-in installation box

0 mm

Sensor type

Passive infrared

Suitable for ceiling mounting

Yes

Anti-bacterial treatment

No

Country of origin

Estonia

HS Code

8536.50

• EAN 3606480467448
• SAP 1000498216
• Code 8306426
