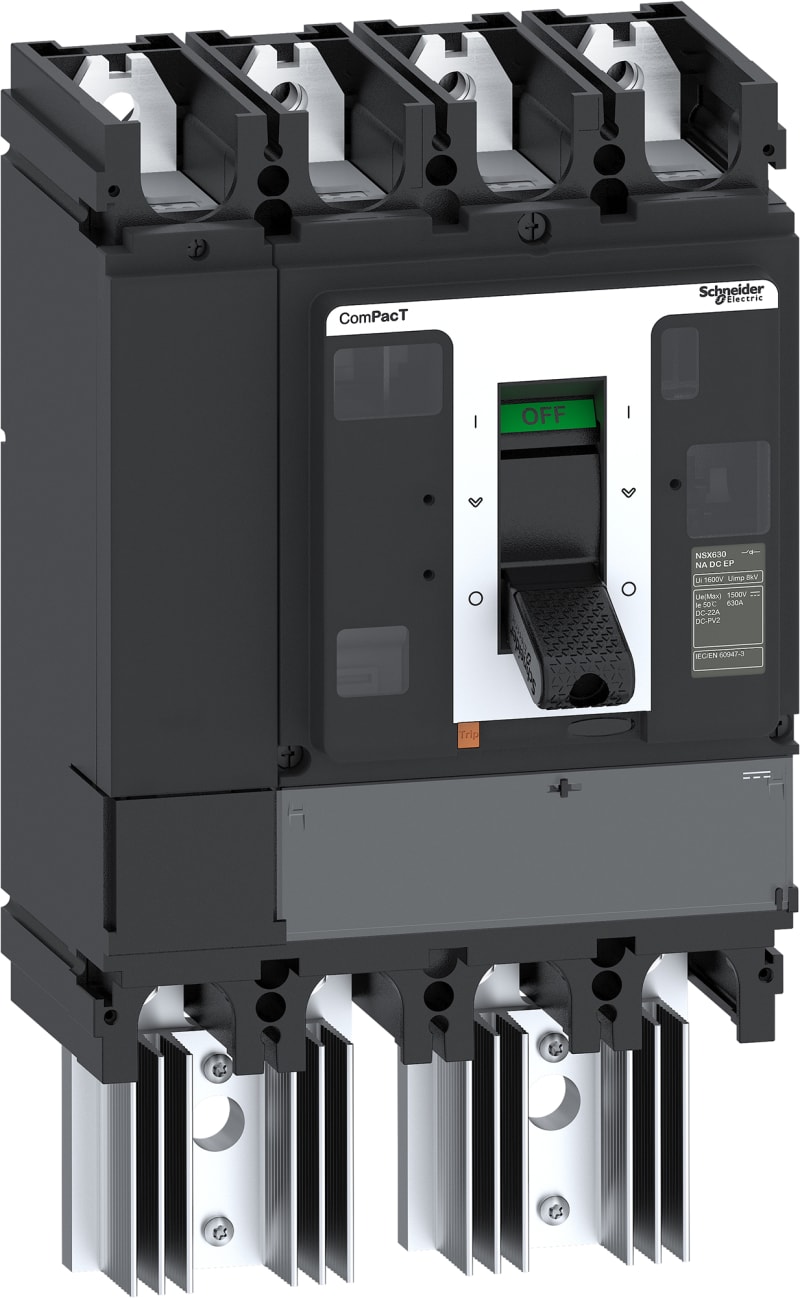

Schneider Electric Switch disconnector ComPacT NSX630NA DC EP, 4 poles, fixed, 400A rating, 1500V C634400D3S
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C634400D3S Load-break switch NSX630 NA DC EP 4P 400A - 1500V DC.
Technical Specifications
- Manufacturer part number (MPN)
- C634400D3S
- EAN / GTIN
- 3606481988706
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Rated current
- 400 A
- Number of poles
- 4P
- Range
- ComPacT
- Product name
- ComPacT NSX DC EP
- Device short name
- NSX 630 DC EP
- Product or component type
- Switch disconnector
- Device application
- Photovoltaic; Marine application
- Poles description
- 4P
- [Ith] conventional free air thermal current
- 400 A at 40 °C
- [Ie] rated operational current
- DC-22A: 400 A DC 1500 V; DC-PV2: 400 A DC 1500 V
- [Ue] rated operational voltage
- 1500 V DC
- Network type
- DC
- Suitability for isolation
- Yes conforming to EN/IEC 60947-3
- Utilisation category
- DC-22A; DC-PV2
- Breaking capacity code
- NA
- Contact position indicator
- Yes
- Visible break
- No
- mounting mode
- Fixed
- [Icw] rated short-time withstand current
- 7.56 kA during 1 s
- [Icm] rated short-circuit making capacity
- 7.56 kA switch-disconnector alone
- Control type
- Toggle
- [Ui] rated insulation voltage
- 1600 V DC
- [Uimp] rated impulse withstand voltage
- 8 kV
- Mounting support
- Backplate
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 45 mm
- Mechanical durability
- 8000 cycles
- Electrical durability
- 3000 cycles 1500 V DC In
- Width (W)
- 185 mm
- Height (H)
- 255 mm
- Depth (D)
- 110 mm
- Product weight
- 8.1 kg
- Standards
- EN/IEC 60947-1; EN/IEC 60947-3
- Product certifications
- CE; CCC
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Electrical shock protection class
- Class II
- Pollution degree
- 3 conforming to IEC 60664-1
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481988706
- SAP 1200722369
- Code 83837141
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric License upgrade, EcoStruxure EV Charging Expert, 15 charging stations, from static to dynamic charge management EVLMSESS2EDS
Schneider Electric
Schneider Electric Discrete input module X80 - 32 inputs - 48V DC current sink (logic positive) - severe BMXDDI3203H
Schneider Electric
Schneider Electric universal plug-in relay - Harmony RUM - 2 C/O - 24 V AC - 10 A RUMC21B7
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 3P, 63A, A type, instantaneous, 500MA, 230...415VAC A9V26363
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 2P, 63A, B-SI type, 30MA, double terminal A9Z61263
Schneider Electric
Load-break switch INS2500 4P
31341
Schneider Electric
Schneider Electric PLS box, polyester rear, opaque PC cover IP65 36X54X23CM NSYPLSC3654AG
Schneider Electric

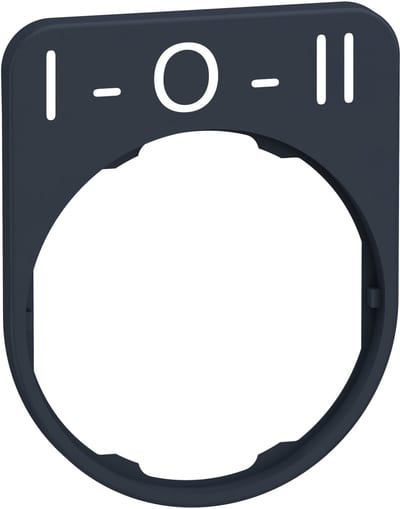

Sign flush in plastic with text (ZBYFP2186)
