Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 2P, 63A, B-SI type, 30MA, double terminal A9Z61263
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9Z61263 Residual current circuit breaker Acti9 iID 2P 63A 30mA B-SI RCCB.
Technical Specifications
- Manufacturer part number (MPN)
- A9Z61263
- EAN / GTIN
- 3606489502768
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 27 pcs
- Rated current
- 63 A
- Number of poles
- 2P
- Range
- Acti9
- Product name
- Acti9 iID
- Product or component type
- Residual current circuit breaker (RCCB)
- Device short name
- iID
- Device application
- Photovoltaic; Lift
- Poles description
- 2P
- Neutral position
- Left
- [In] rated current
- 63 A
- Network type
- AC
- Earth-leakage sensitivity
- 30 mA
- Earth-leakage protection time delay
- Instantaneous
- Earth-leakage protection class
- Type B-SI (Super Immunised)
- Quality labels
- VDE; NF; IMQ; KEMA
- Device location in system
- Outgoer; Group incomer
- Network frequency
- 50 Hz
- [Ue] rated operational voltage
- 230 V AC 50 Hz
- Residual current tripping technology
- Voltage independent
- Rated breaking and making capacity
- Idm 1500 A; Im 1500 A
- Rated conditional short-circuit current
- 10 kA
- [Ui] rated insulation voltage
- 250 V
- [Uimp] rated impulse withstand voltage
- 6 kV
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication; LED (green) for presence of voltage; Trip indicator
- mounting mode
- Clip-on
- Mounting support
- 35 mm DIN rail
- 9 mm pitches
- 8
- Height
- 88 mm
- Width
- 72 mm
- Depth
- 73 mm
- Product weight
- 350 g
- Colour
- White (RAL 9003)
- Mechanical durability
- 20000 cycles
- Electrical durability
- 15000 cycles
- Locking options description
- Padlocking device
- Connections - terminals
- Double terminal front 1…35 mm² rigid; Double terminal front 1…25 mm² flexible; Double terminal front 1…25 mm² flexible with ferrule; Double terminal back 1…25 mm² rigid; Double terminal back 1…16 mm² flexible; Double terminal back 1…16 mm² flexible with ferrule
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 3.5 N.m top or bottom
- Standards
- EN/IEC 61008-1; EN/IEC 61008-2-1; IEC/EN 62423
- Product certifications
- CCC; KC
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- IK degree of protection
- IK05
- Pollution degree
- 3
- Overvoltage category
- IV
- Electromagnetic compatibility
- 8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606489502768
- SAP 1200193739
- Code 82124710
Product Documentation
More from Schneider Electric
Schneider Electric
Load-break switch INS2500 4P
31341
Schneider Electric
Schneider Electric PLS box, polyester rear, opaque PC cover IP65 36X54X23CM NSYPLSC3654AG
Schneider Electric
Sign flush in plastic with text (ZBYFP2186)
Schneider Electric
Schneider Electric LED bulb with BA9S base - orange - 24 V AC/DC DL1CJ0245
Schneider Electric
Sign flush in plastic with text (ZBYFP2166)
Schneider Electric

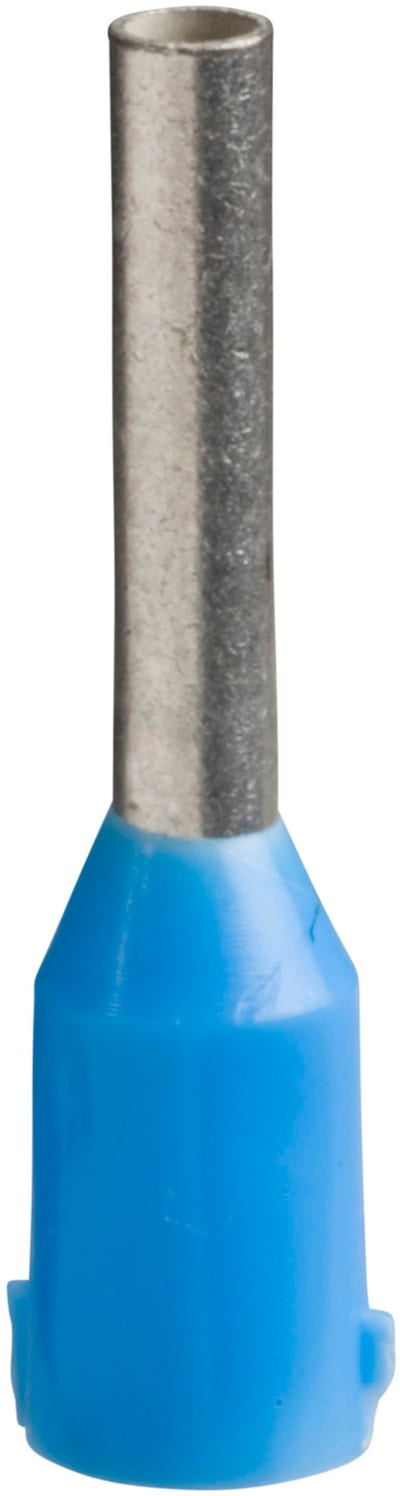

End ferrule 2,5 mm² norm DIN
DZ5CE025D
Schneider Electric

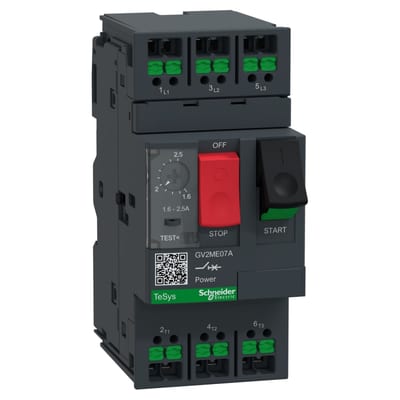

Schneider Electric Motor circuit breaker, TeSys Deca, 3P, AC-3/AC-3E, 1.6 to 2.5A, thermal magnetic, snap-in terminals, push button GV2ME07A
Schneider Electric

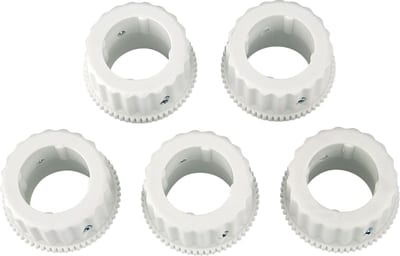

KNX V. Adapter VA 78 Danfoss
