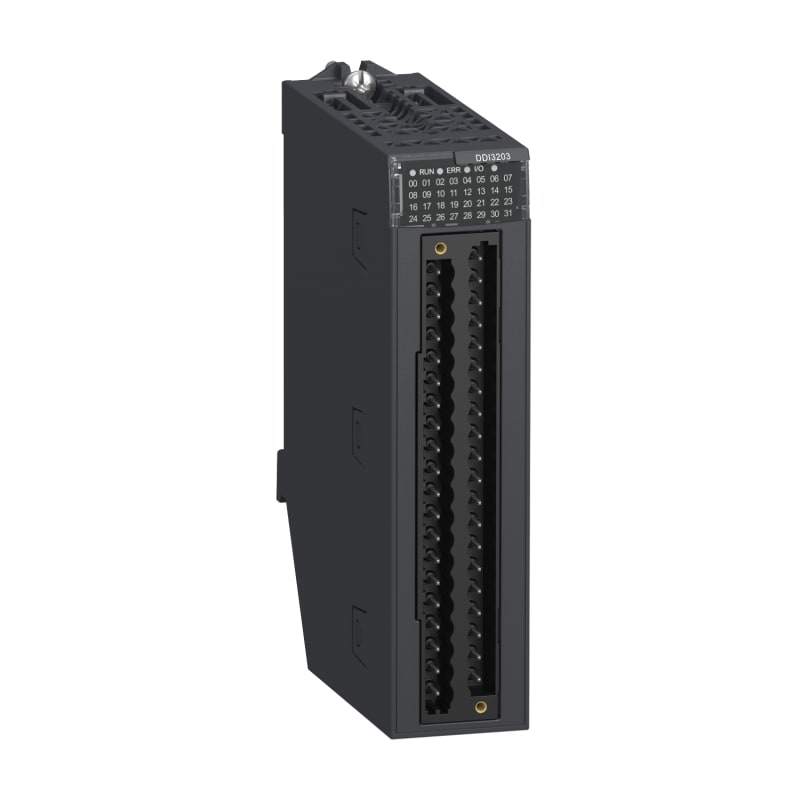

Schneider Electric Discrete input module X80 - 32 inputs - 48V DC current sink (logic positive) - severe BMXDDI3203H

Schneider Electric BMXDDI3203H X80 32-channel input module, 48VDC Sink Input. For rugged environments.

Manufacturer part number (MPN)

BMXDDI3203H

EAN / GTIN

3606481946737

Sales unit

pcs

Package quantity

10 pcs

Voltage

48 V DC

Range of product

Modicon X80

Product or component type

Discrete input module

Device application

Industrial application in severe environment

Discrete input number

32

Discrete input voltage

48 V DC for isolated

Discrete input logic

Current sink

Input wiring mode

2 or 3 wires

Discrete input current

2.3 mA at 48 V DC

Voltage state 1 guaranteed

> 30 V

Voltage state 0 guaranteed

<= 10 V

Current state 1 guaranteed

>= 2 mA

Current state 0 guaranteed

<= 1.5 mA

Input impedance

20960 Ohm

Insulation resistance

> 10 MOhm 500 V DC

DC typical response time

4 ms

DC maximum response time

7 ms

Paralleling of outputs

Yes

Typical current consumption

100 mA DC; 110 mA at 24 V DC

Current consumption

130 mA at 3.3 V DC; 125 mA at 24 V DC

Power dissipation in W

6 W

Isolation between channels and bus

1500 V for 1 minute

Hot swapping fallback

Yes

MTBF reliability

2500000 H

Voltage detection threshold

36 V DC sensor OK

Local signalling

1 LED (green) for module operating (RUN); 1 LED per channel (green) for channel diagnostic; 1 LED (red) for module error (ERR); 1 LED (red) for module I/O

Height

134.6 mm

Width

32 mm

Depth

86 mm

Product weight

0.138 kg

IP degree of protection

IP20

Protective treatment

Conformal coating

Marking

CE; UKCA; CULus; RCM; EAC

Product certifications

ATEX zone 2; IECEx zone 2; CCC Ex zone 2 (pending); CULus HazLoc

Standards

IEC 61131-2

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Dielectric strength

1500 V AC at 50/60 Hz 1 minute, primary/secondary; 1500 V AC at 50/60 Hz 1 minute, between group of channels

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Relative humidity

5…95 % at -25…70 °C without condensation

Operating altitude

0...2000 m; 2000...5000 m with derating

Pollution degree

2

Environmental characteristic

Gas resistant class Gx; Gas resistant class 3C4; Dust resistant class 3S4; Sand resistant class 3S4; Salt resistant level 2; Mold growth resistant class 3B2; Fungal spore resistant class 3B2

Vibration resistance

3 gn

Shock resistance

30 gn

Number of Units in Package 1

1

Number of Units in Package 2

10

Warranty (in months)

18

Supply voltage DC

48 V

Voltage type (supply voltage)

DC

Number of digital inputs

32

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

2.3 mA

Permitted voltage at input

38–60 V

Type of voltage (input voltage)

DC

Type of digital output

None

Permitted voltage at output

38–60 V

Type of output voltage

DC

Short-circuit protection, outputs available

No

Redundancy

No

Type of electric connection

Plug-in connection

Time delay at signal change

4–7 ms

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

Explosion safety category for dust

None

Country of origin

Indonesia

HS Code

8538.90
