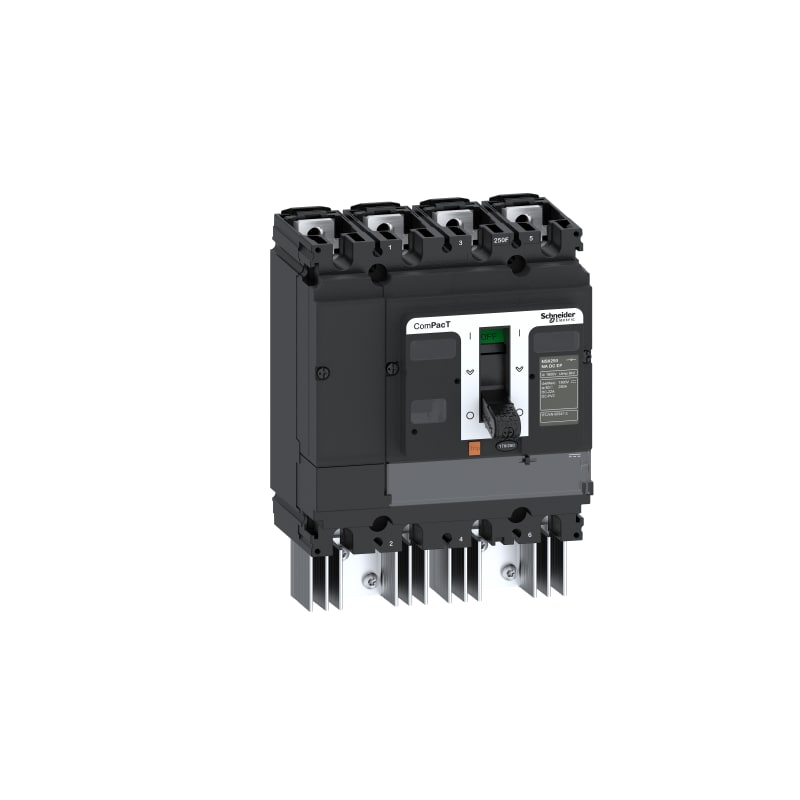

Schneider Electric Switch disconnector ComPacT NSX250NA DC EP, 4 poles, fixed, 200A rating, 1500V C254200D3S

Schneider Electric C254200D3S Load-break switch NSX250 NA DC EP 4P 200A - 1500V DC.

Manufacturer part number (MPN)

C254200D3S

EAN / GTIN

3606481988676

HS code

8536.90

Sales unit

pcs

Package quantity

4 pcs

Rated current

200 A

Number of poles

4P

Range

ComPacT

Product name

ComPacT NSX DC EP

Device short name

NSX250 DC EP

Product or component type

Switch disconnector

Device application

Photovoltaic; Marine application

Poles description

4P

[Ith] conventional free air thermal current

200 A at 40 °C

[Ie] rated operational current

DC-22A: 200 A DC 1500 V; DC-PV2: 200 A DC 1500 V

[Ue] rated operational voltage

1500 V DC

Network type

DC

Suitability for isolation

Yes conforming to EN/IEC 60947-3

Utilisation category

DC-22A; DC-PV2

Breaking capacity code

NA

Contact position indicator

Yes

Visible break

No

mounting mode

Fixed

[Icw] rated short-time withstand current

3.5 kA during 1 s

[Icm] rated short-circuit making capacity

3.5 kA switch-disconnector alone

Control type

Toggle

[Ui] rated insulation voltage

1600 V DC

[Uimp] rated impulse withstand voltage

8 kV

Mounting support

Backplate

Upside connection

Front

Downside connection

Front

Connection pitch

35 mm

Mechanical durability

10000 cycles

Electrical durability

4500 cycles 1500 V DC In

Width (W)

140 mm

Height (H)

161 mm

Depth (D)

86 mm

Product weight

2.8 kg

Standards

EN/IEC 60947-1; EN/IEC 60947-3

Product certifications

CE; CCC

IP degree of protection

IP40 conforming to IEC 60529

IK degree of protection

IK07 conforming to IEC 62262

Electrical shock protection class

Class II

Pollution degree

3 conforming to IEC 60664-1

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-50…85 °C

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481988676
• SAP 1200722366
• Code 83837176
