Schneider Electric SSRHP05 heat sink for Harmony solid-state relay, 0.5 °C/W
Pricing
Request a quote
We reply within 24 hours
Product Description

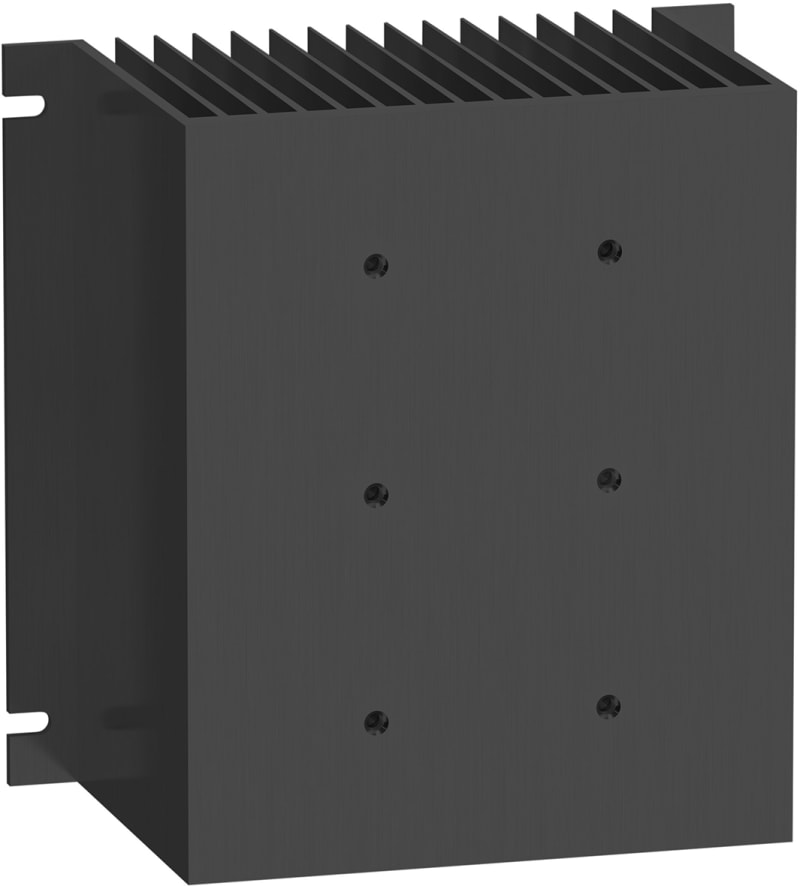

Schneider Electric SSRHP05 — panel-mounted heat sink for a Harmony solid-state relay, 0.5 °C/W thermal resistance. Black anodised aluminium body 152.4 × 152.4 × 88.9 mm with six UNC 8-32 mounting holes.
Technical Specifications
- Manufacturer part number (MPN)
- SSRHP05
- EAN / GTIN
- 3606480580222
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Range of product
- Harmony Solid State Relays
- Product or component type
- Heat sink
- Product compatibility
- 1 solid state relay SSR on panel
- Thermal resistance
- 0.5 °C/W
- Mounting support
- Panel
- Material
- Aluminium
- Surface finish
- Black anodized
- Surface and useful surface
- 4406 cm²
- Number of mounting holes
- 6 with UNC 8-32 thread
- Tightening torque
- 1.7…2.2 N.m
- Sale per indivisible quantity
- 1
- Width
- 152.4 mm
- Height
- 152.4 mm
- Depth
- 88.9 mm
- Product weight
- 1.440 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606480580222
- SAP 1000665050
- Code 8512570
Product Documentation
