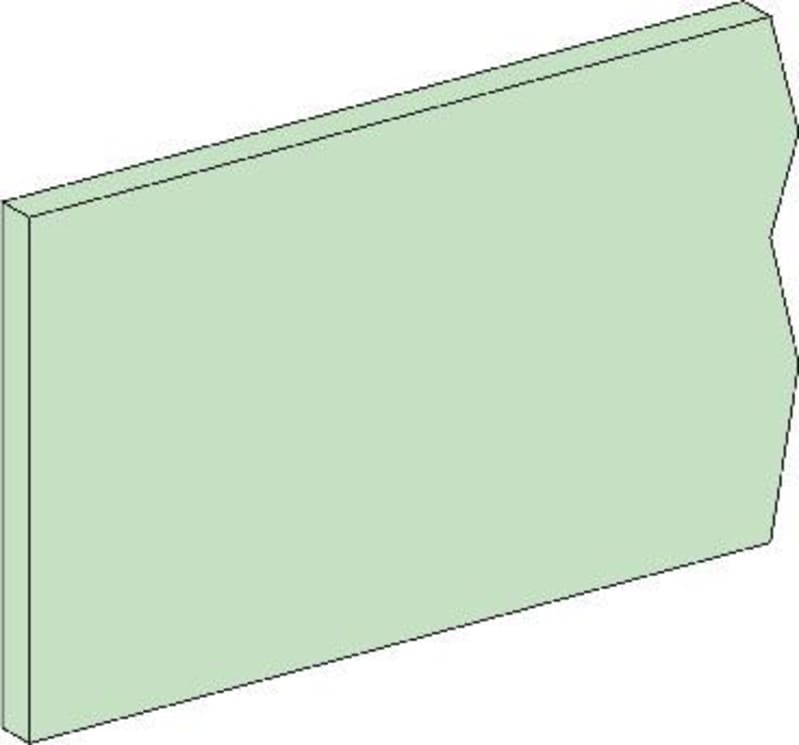

Schneider Electric Busbar, Linergy BS, plain busbar, 1880A, horizontal, flat bar, 120X10MM, L2000MM LVS04552

Schneider Electric LVS04552 Flat rail-LGY BS-for horizontal mounting-120x10mm length2000mm- PrismaSeT P.

Manufacturer part number (MPN)

LVS04552

EAN / GTIN

3606481870537

Sales unit

pcs

Dimensions

120x10 mm

Range

Linergy

Range of product

Linergy

Product or component type

Busbar

Product name

Linergy BS

Range compatibility

PrismaSeT PrismaSeT P enclosure

Busbar description

Flat bar

Quantity per set

Set of 1

Installation direction

Vertical, operating position: lateral; Horizontal, operating position: top; Horizontal, operating position: bottom

installation description

Cubicle - width 650 mm; Cubicle - width 650 + 150 mm; Cubicle duct - width 300 mm; Cubicle duct - width 400 mm

[Ie] rated operational current

1880 A at 35 °C

[Icw] rated short-time withstand current

60 kA (1 s) for 2 supports (horizontal position); 85 kA (1 s) for 3 supports (horizontal position); 40 kA (1 s) (horizontal position); 85 kA (1 s) for 2 supports (horizontal position); 50 kA (1 s) (horizontal position)

Permissible current

1880 A at 35 °C: <= IP31; 1670 A at 35 °C: IP31

Busbar cross section

120 x 10 mm

Length

2000 mm

Width

120 mm

Depth

10 mm

Product weight

21.9 kg

Colour

Natural

Type of busbar connection

Without hole

Standards

IEC 61439-2; IEC 61439-1

Product certifications

ASTA

Number of Units in Package 1

1

Number of Units in Package 2

18

Warranty (in months)

18

Model

Flat

Height

10 mm

Flexible

No

Surface protection

Untreated

Rated current In

3760 A

Country of origin

Italy

HS Code

7407.29
