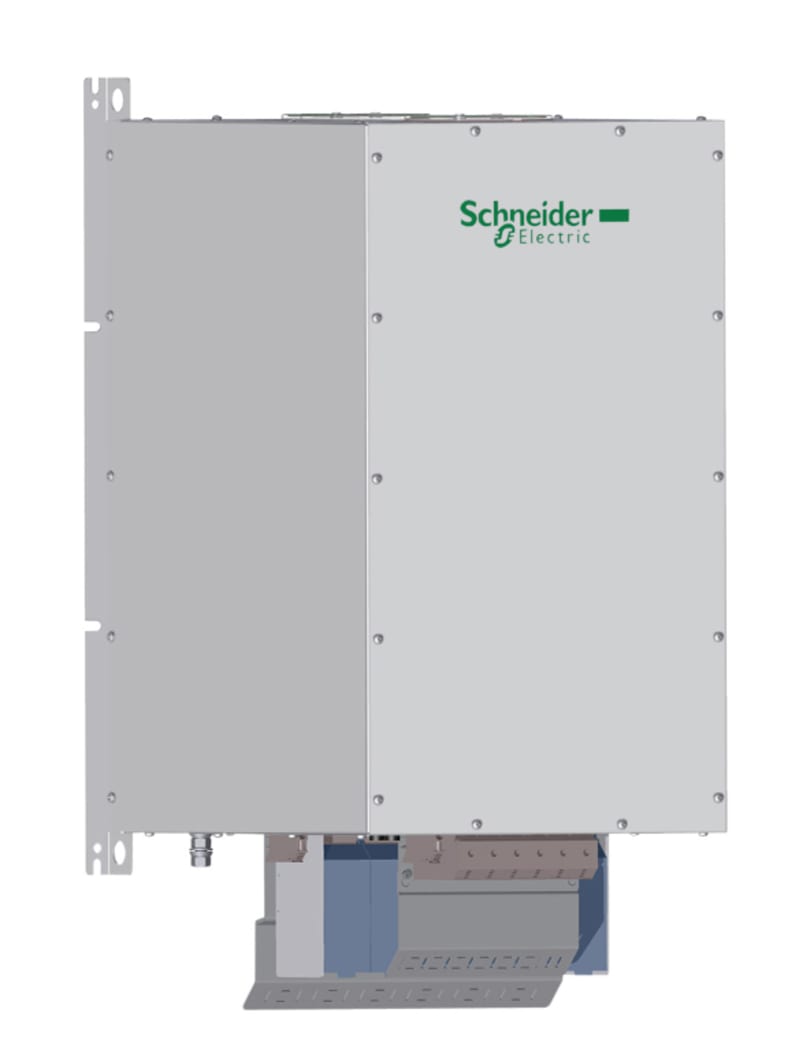

Passiva filter 450A 460V 60Hz 5%THD

Schneider Electric VW3A46176 passive filter - 450 A - 460 V - 60 Hz - for variable speed drive.

Manufacturer part number (MPN)

VW3A46176

EAN / GTIN

3606480652745

HS code

8504.40

Sales unit

pcs

Voltage

460 V

Frequency

60 Hz

Product or component type

Passive filter

Product specific application

Reduction of current harmonics

Range compatibility

Altivar 61; Altivar Process ATV600; Altivar 71; Altivar Process ATV900

[Us] rated supply voltage

480 V +/- 10 %

Supply frequency

60 Hz +/- 2 %

Quantity per drive

2 filters per drive for variable speed drive ATV61H motor: 280 kW/450 hp; 2 filters per drive for variable speed drive ATV71H motor: 280 kW/450 hp; 2 filters per drive for variable speed drive ATV61Q motor: 280 kW/450 hp; 3 filters per drive for variable speed drive ATV61H motor: 560 kW/800 hp; 3 filters per drive for variable speed drive ATV61Q motor: 560 kW/800 hp; 2 filters per drive for variable speed drive ATV71H motor: 250 kW/400 hp; 1 filter per drive for variable speed drive ATV61Q motor: 220 kW/350 hp; 1 filter per drive for variable speed drive ATV71Q motor: 220 kW/350 hp; 2 filters per drive for variable speed drive ATV61H motor: 250 kW/400 hp; 1 filter per drive for variable speed drive ATV630 wall mount, motor: 250 kW/400 hp; 1 filter per drive for variable speed drive ATV930 wall mount, motor: 250 kW/400 hp

[In] rated current

450 A for output; 436 A for input

Network number of phases

3 phases

THDI

5 % for variable speed drive ATV61H motor: 280 kW/450 hp; 5 % for variable speed drive ATV71H motor: 280 kW/450 hp; 5 % for variable speed drive ATV61Q motor: 280 kW/450 hp; 5 % for variable speed drive ATV61H motor: 560 kW/800 hp; 5 % for variable speed drive ATV61Q motor: 560 kW/800 hp; 5 % for variable speed drive ATV71H motor: 250 kW/400 hp; 5 % for variable speed drive ATV61Q motor: 220 kW/350 hp; 5 % for variable speed drive ATV71Q motor: 220 kW/350 hp; 5 % for variable speed drive ATV61H motor: 250 kW/400 hp; 5 % for variable speed drive ATV630 motor: 250 kW/400 hp; 5 % for variable speed drive ATV930 motor: 250 kW/400 hp

Max current

1.5 x nominal current (duration = 60 s)

Efficiency

98 %

Thermal losses

1852 W

Cos phi

1 (150 % of line current); 0.85 (75 % of line current); 0.99 (100 % of line current)

Electrical connection

A, B terminal, connection capacity: 2.5 mm²; X1-1...X2-3 terminal, connection capacity: 25...300 mm²

Electrical insulation class

Class F

Product weight

272 kg

IP degree of protection

IP20; IP55 (enclosure mounting)

Vibration resistance

2 mm peak to peak (f= 5…13.2 Hz) conforming to IEC 60068-2-6; 0.7 gn (f= 13.2…150 Hz) conforming to IEC 60068-2-6

Relative humidity

5…85 % without condensation

Ambient air temperature for operation

45…60 °C (with current derating 3 % per °C); 5…45 °C (without current derating)

Ambient air temperature for storage

-25…55 °C storage in original packaging; -25…65 °C during transport

Operating altitude

1000...4000 m with current derating 5 % per 1000 m

Standards

G5/4 engineering recommendation; IEC 61000-3-2; IEC 61000-2-4; IEC 61000-3-12; IEC 61000-3-4; IEC 61000-2-2

Warranty (in months)

18

HS Code

8504.40

• EAN 3606480652745
• SAP 1200722463
• Code 83837229
