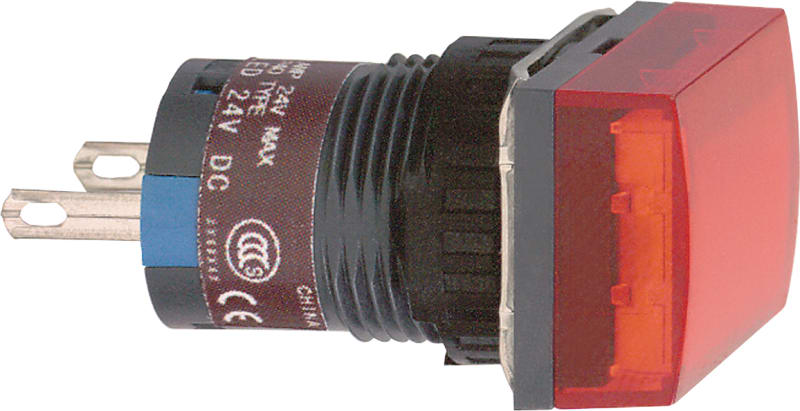

Schneider Electric Monolithic pilot light, Harmony XB6E, rectangular 16mm IP65 red, integral LED 24VDCPOLARISED connector XB6EDV4BP

Schneider Electric XB6EDV4BP Control device 16mm, complete units.

Manufacturer part number (MPN)

XB6EDV4BP

EAN / GTIN

3389110630305

HS code

8539.52

Sales unit

pcs

Package quantity

5 pcs

Voltage

24 V

Range of product

Harmony XB6E

Product or component type

Monolithic pilot light

Device short name

XB6E

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

5

Shape of signaling unit head

Rectangular

Cap/operator or lens colour

Red

Light source

Integral LED

Light block supply

Direct

[Us] rated supply voltage

24 V DC polarised

Product weight

0.006 kg

Overvoltage category

II conforming to IEC 60536

Operating position

Any position

Marking

CE

Connections - terminals

Insulated faston, connection size: 2.8 x 0.5 mm; Solder terminal, clamping capacity: <= 0.75 mm² 19 AWG; Fast connector socket

Tightening torque

0.6…1 N.m

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

2.5 kV conforming to IEC 60947-1

Signalling type

Steady

Current consumption

10 mA

Service life

30000 h

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-10…55 °C

IP degree of protection

IP65 conforming to IEC 60529

Standards

UL 508; CSA C22.2 No 14; JIS C8201-5-1; JIS C 852; IEC 60947-1; IEC 60947-5-1; JIS C8201-1

Product certifications

CCC; cURus

Vibration resistance

1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6

Shock resistance

10 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Warranty (in months)

18

HS Code

8539.52

• EAN 3389110630305
• SAP 1000021764
• Code 8190170
