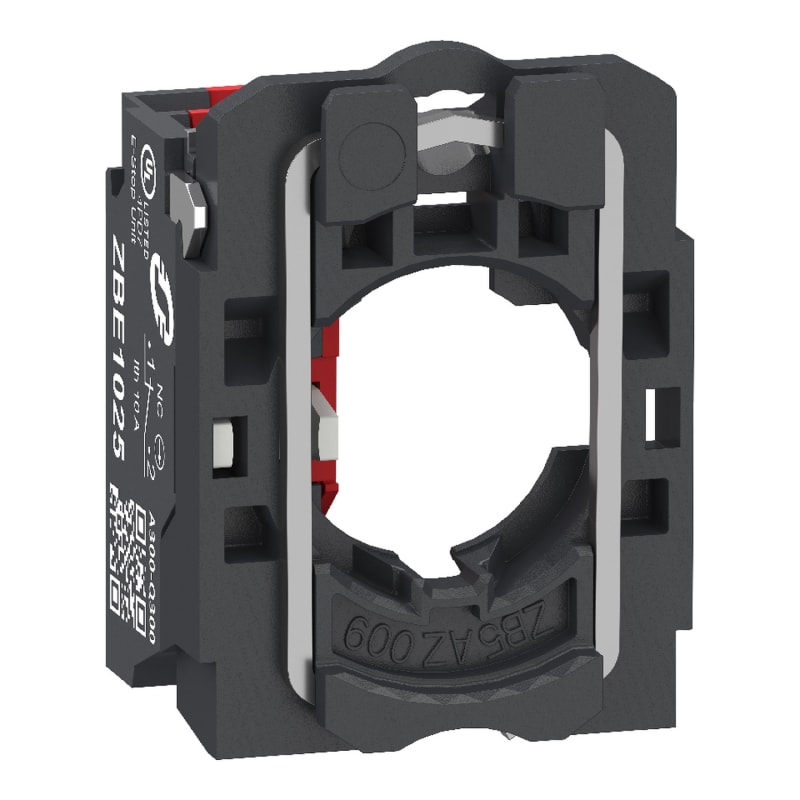

Schneider Electric Complete body contact assembly, Harmony XB5, single contact, with fixing collar, plastic, 1NC, compact push in terminals ZB5AZ1025

Schneider Electric ZB5AZ1025 Contact Body in plastic consisting of 1xNC connector with push-in spring terminals.

Manufacturer part number (MPN)

ZB5AZ1025

EAN / GTIN

3389119037730

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Complete body/contact assembly

Device short name

ZB5

Fixing collar material

Plastic

Sale per indivisible quantity

1

Head type

Standard

Contacts type and composition

1 NC

Contact operation

Slow-break

Contact block type

Single

Connections - terminals

Push-in, = 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1

CAD overall width

46.2 mm

CAD overall height

27.6 mm

CAD overall depth

30 mm

Terminals description ISO n°1

(11-12)NC

Product weight

0.011 kg

Device composition

Fixing collar; Body

Contacts usage

Standard contacts

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1.217 mm (NC changing electrical state); 4.3 mm (total travel)

Operating force

2.25 N NC changing electrical state

Mechanical durability

10000000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

10 A cartridge fuse type gG conforming to IEC 60947-5-1

[Ith] conventional free air thermal current

10 A conforming to IEC 60947-5-1

[Ui] rated insulation voltage

300 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 60947-1; IEC 60947-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 60947-1; UL 60947-5-1; UL 60947-5-5; UL 1059; UL 486E; CSA C22.2 No 60947-1; CSA C22.2 No 60947-5-1; CSA C22.2 No 158; CSA C22.2 No 65; IACS E10

Product certifications

EAC; IECEE CB Scheme; CCC; UL; CSA

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27; 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

250

Country of origin

FR

Warranty (in months)

18

HS Code

8536.50
