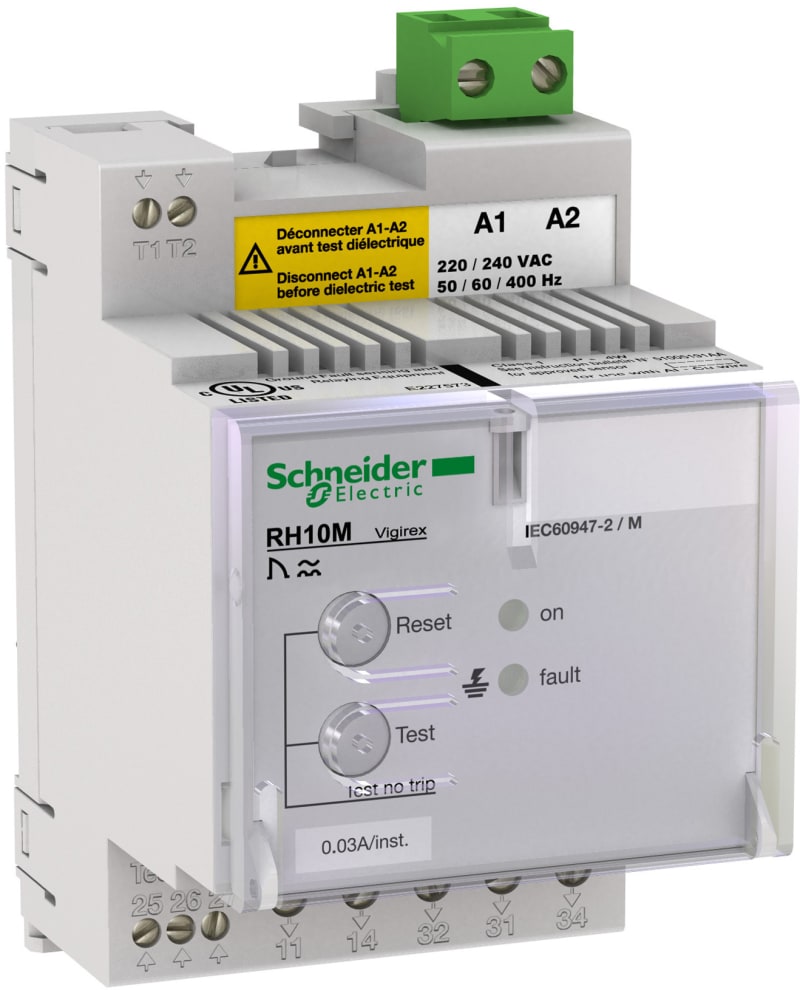

Jf.relay RH10M 380/415VAC 30MA
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 56140 RH10M 440/525V AC 50/60HZ SEUIL 0.1 A IN.
Technical Specifications
- Manufacturer part number (MPN)
- 56140
- EAN / GTIN
- 3303430561408
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 380/415 V AC
- Operating voltage AC 50 Hz
- 380–415 V
- Operating voltage AC 60 Hz
- 380–415 V
- External power supply required
- Yes
- Supply voltage AC 50 Hz
- 380–415 V
- Supply voltage AC 60 Hz
- 380–415 V
- Current measuring range
- 0.015–60 mA
- Rated switch current
- 8 A
- Rated operating frequency
- 50–400 Hz
- Voltage measuring range
- 0–1000 V
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Screw connection
- Voltage type for actuating
- AC
- With detachable clamps
- No
- Function
- For AC-current system
- Response value amperage 1
- 30 mA
- Response value amperage 2
- 0–30 mA
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 0.04 s
- Indication of difference current
- No
- Error registration possible
- No
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Width
- 54 mm
- Height
- 97 mm
- Depth
- 74 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303430561408
- SAP 1000284746
- Code 831015
Product Documentation
More from Schneider Electric
Schneider Electric
UL Type 1 kit for ATV320 B
VW3A95819
Schneider Electric
NW 32 H1 3P Withdrawable
48312
Schneider Electric
Schneider Electric Complete body/contact assembly and light block, Harmony XB5, plastic, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC ZB5AW0B15
Schneider Electric
Schneider Electric universal plug-in relay - Harmony RUM - 3 C/O - 110 V DC - 10 A RUMC31FD
Schneider Electric
Modular frame 16X8 (NSYCSH168)
Schneider Electric
Sensor Plug 630A MTZ1/MTZ2
LV833091
Schneider Electric

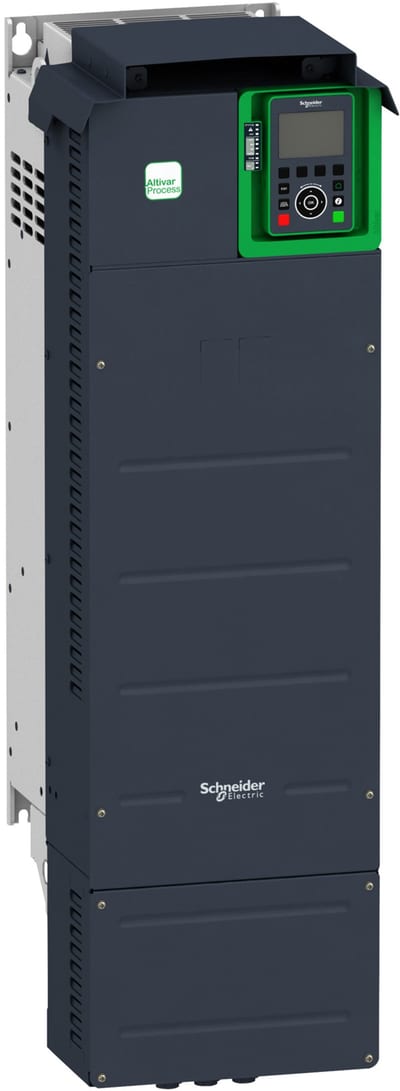

Schneider Electric variable speed drive, ATV930, 55kW, 400/480V, with braking unit, IP21 ATV930D55N4
Schneider Electric

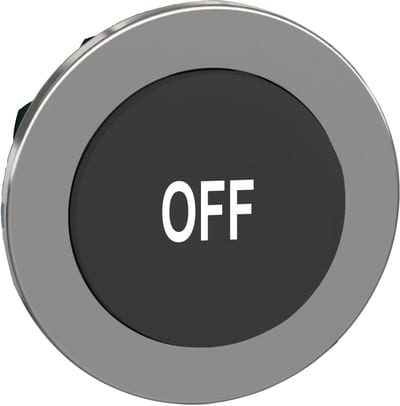

Push-button flush black with text (ZB4FL235)
