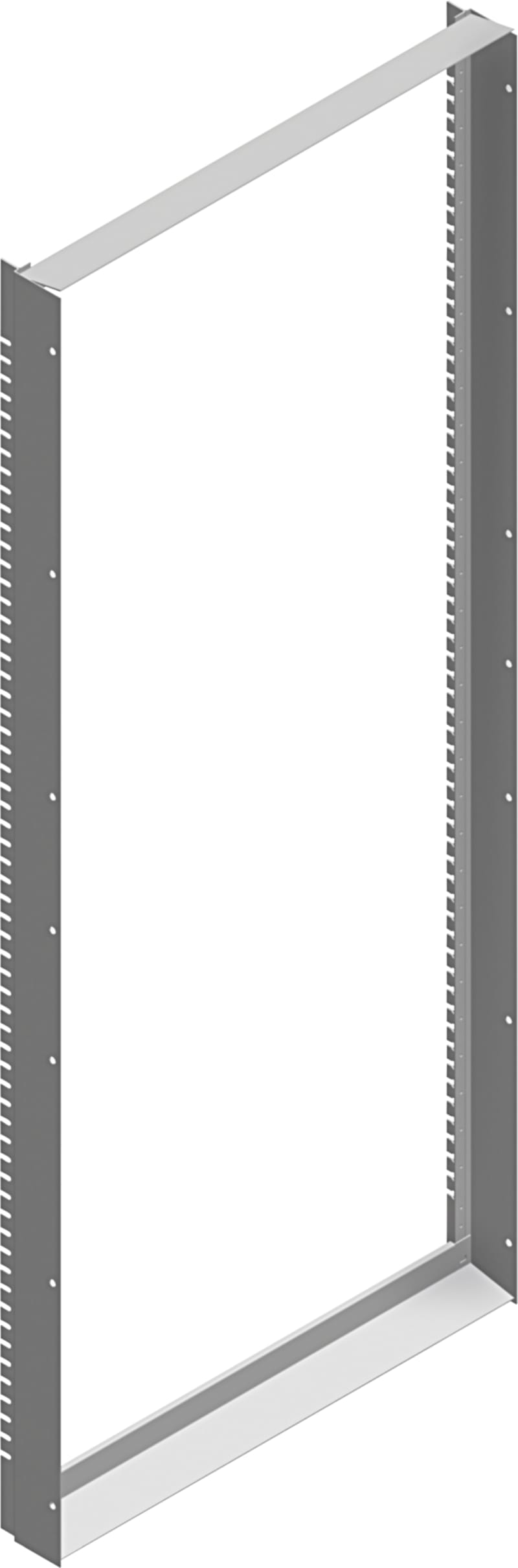

Modular frame 16X8 (NSYCSH168)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCSH168 Modular Frame 16X8.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCSH168
- EAN / GTIN
- 3606480063787
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose
- Product or component type
- Coupling kit
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT SM; PanelSeT SF
- Device composition
- fixing elements; 2 horizontal crossbars; 2 vertical uprights
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Grey (RAL 7035)
- Surface finish
- Epoxy-polyester powder
- Fixing mode
- By fixing element
- Total number of 18 mm modules
- 324
- Height
- Real: 1505 mm; Nominal: 1600 mm
- Width
- Real: 702 mm
- Depth
- Real : 100 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.500 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 158.500 cm
- Package 1 Weight
- 7.098 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 20
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 177.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 800 mm
- Suitable for enclosure building height
- 1600 mm
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480063787
- SAP 1000090353
- Code 8846752
Product Documentation
More from Schneider Electric
Schneider Electric
Sensor Plug 630A MTZ1/MTZ2
LV833091
Schneider Electric
Schneider Electric variable speed drive, ATV930, 55kW, 400/480V, with braking unit, IP21 ATV930D55N4
Schneider Electric
Push-button flush black with text (ZB4FL235)
Schneider Electric

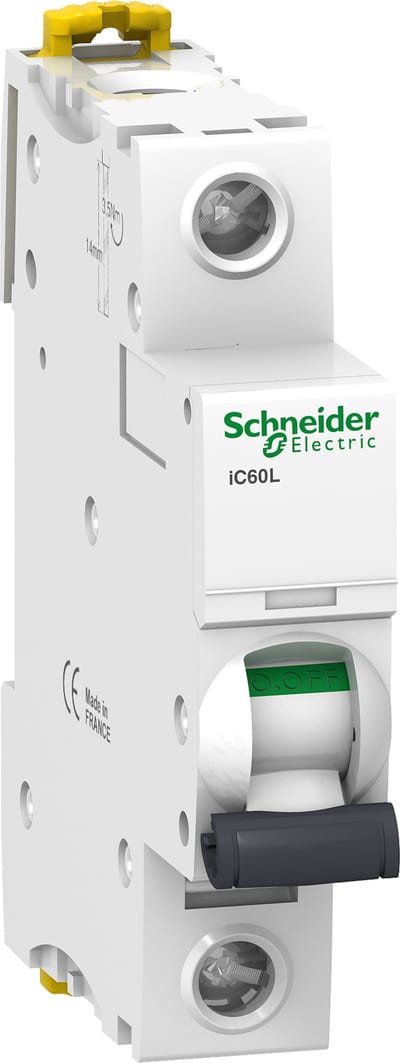

Schneider Electric A9F93132 ACTI9 IC60L Miniature Circuit Breaker 1P 32 A, Curve B
