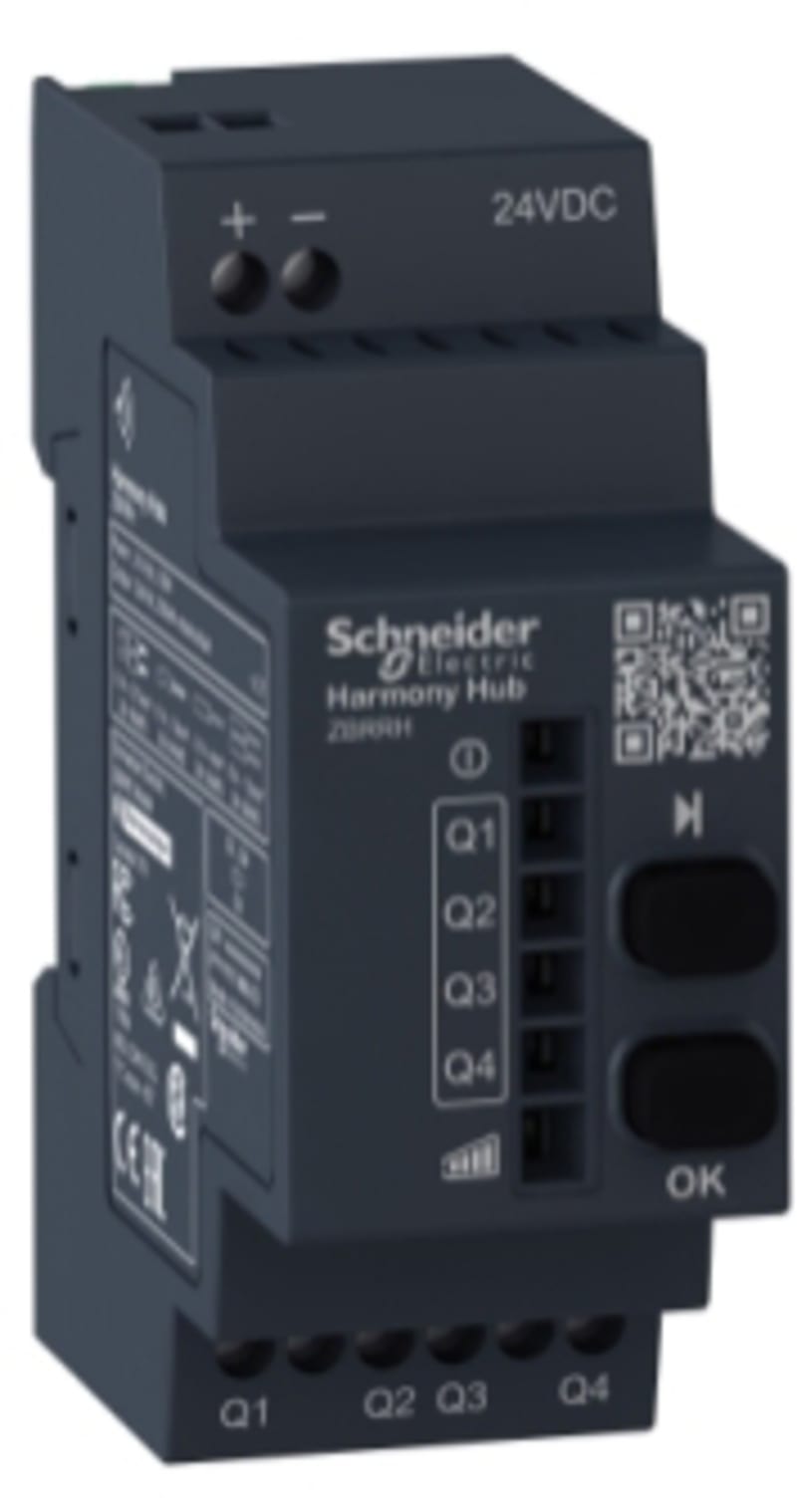

Schneider Electric ZBRRH Wireless Output Module 4x PNP for Harmony Hub

Schneider Electric ZBRRH Wireless output module with 4x PNP outputs at 200 mA/24 VDC for connection to Harmony Hub.

Manufacturer part number (MPN)

ZBRRH EAN / GTIN: 3606481477071 Sales unit: pcs Package quantity: 64 pcs Range of product: Harmony Product or component type: Wireless receiver Device short name: ZBRRH Product specific application: Interface to Harmony hub Function of module: Bi-stable Reset time: 2 ms time delay Transmission frequency: 2405 MHz Antenna type: Omnidirectional Antenna gain: 0 dBi emission class: 5M00G7W Output type: Transistor PNP Output contacts: 4 PNP Time delay range: 0.5 s (tolerance: - 15...15 %) Maximum switching current: 0.2 mA DC minimum switching current: 10 mA at 5 V DC [Us] rated supply voltage: 24 V DC - 15...20 % Maximum voltage drop: <2 V DC at 2 A Communication port protocol: Zigbee green power at 2.4 GHz conforming to IEEE 802.15.4 Maximum sensing distance: 100 m in free field; 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure; 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna Response time: < 30 ms after transmitter clicks Channels utilisation: 1 Harmony Hub per receiver Utilisation category: DC-13 conforming to IEC 60947-5-1 Maximum power consumption in VA: 20 VA DC Maximum power consumption in W: 20 W DC Breaking capacity: 4.8 W (per output) Short-circuit protection: 0.4 A fuse type fast blow Operating position: Any position without derating Electrical connection: 1 conductor cable 0.14…2.5 mm² - 26 AWG...14 AWG - solid - without cable end conforming to IEC 60947-1; 2 conductors cable 0.14…1.5 mm² - 26 AWG...16 AWG - solid - without cable end conforming to IEC 60947-1; 1 conductor cable 0.14…4 mm² - 26 AWG...12 AWG - flexible - with cable end conforming to IEC 60947-1; 2 conductors cable 0.14…1.5 mm² - 26 AWG...16 AWG - flexible - with cable end conforming to IEC 60947-1 Housing material: Polycarbonate Status LED: 1 LED green for power ON; 1 LED green and yellow for reception signal; 4 LEDs green for relay ON Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715; Mounting plate Rated short-duration power frequency withstand voltage: 1 kV 50 Hz conforming to IEC 60947-5-1 [Uimp] rated impulse withstand voltage: 0.8 kV Surge withstand: 0.5 kV differential mode conforming to IEC 61000-4-5; 1 kV common mode conforming to IEC 61000-4-5 Number of channels: 1 Modulation Technique: O-QPSK Bandwidth: 5 MHz Width: 36 mm Height: 108 mm Depth: 75 mm Product weight: 0.13 kg Tightening torque: 0.5…1 N.m conforming to IEC 60947-1 Standards: IEC 60947-5-1 Radio agreement: RSS; SRRC; ANATEL; ARIB T66; FCC; ICASA Product certifications: CCC; CSA; GOST; C-Tick; UL Marking: CE Ambient air temperature for storage: -40…70 °C Relative humidity: 90 % at -20…55 °C, without condensation conforming to ETSI EN 300 440-1 Vibration resistance: +/- 7.5 mm (f= 5…14 Hz) conforming to IEC 60068-2-6; 2 gn (f= 8…150 Hz) conforming to IEC 60068-2-6 Shock resistance: 10 gn (duration = 16 ms) for 6000 shocks conforming to IEC 60068-2-27 IP degree of protection: IP20 (casing) conforming to IEC 60529; IP20 (terminals) Pollution degree: 2 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Insulation resistance: > 500 MOhm at 500 V DC conforming to NF C 20-030 [Ui] rated insulation voltage: 60 V conforming to IEC 60664-1 Electromagnetic compatibility: Immunity for industrial environments conforming to IEC 61000-6-2; Conducted and radiated emissions class B conforming to CISPR 22; Electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4; Conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6; Radiated emission conforming to ETSI EN 300 440-1; Conducted emission conforming to EN 300-489-1; Conducted emission conforming to ETSI EN 300 489-3; Radiated emission conforming to ETSI EN 300 440-2; Electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5; Immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11 Number of Units in Package 1: 1 Number of Units in Package 2: 64 Country of origin: ID Warranty (in months): 18 Accessory: Yes Spare part: No
