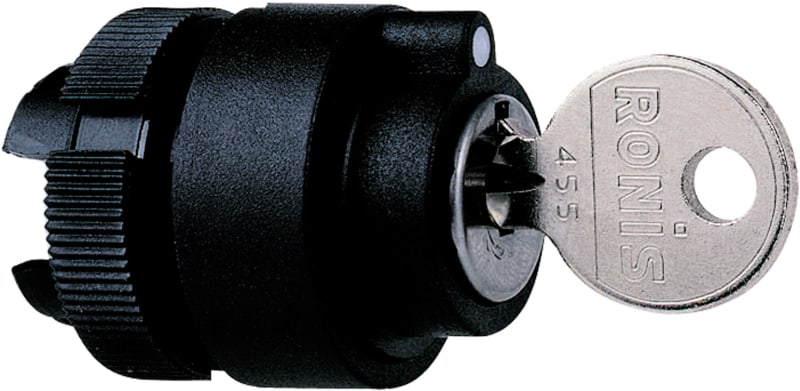

Schneider Electric ZA2BG5 Harmony XAC Key Selector Switch Head 3-Position Stay Put

Schneider Electric ZA2BG5 is a three-position key selector switch head from the Harmony XAC range, with stay-put action and key withdrawal permitted in both the left and right positions. It fits a 22.5 mm mounting hole with an IP65 front seal and IK08 impact rating, and operates from -25 to 70 °C. The plastic front ring is black and the assembly is intended for XACA control station bases.

Manufacturer part number (MPN)

ZA2BG5

EAN / GTIN

3389110645330

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XAC

Product or component type

Selector switch

Component name

ZA2

Product compatibility

XACA

Product weight

0.042 kg

Cap/operator or lens colour

Black

Marking

Unmarked

Mounting location

Front of enclosure

Sale per indivisible quantity

1

Standards

IEC 60947-5-1; CSA C22.2 No 14; IEC 60204-32; UL 508

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

50

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Colour control element

Black

Switching function latching

No

HS Code

8538.90
