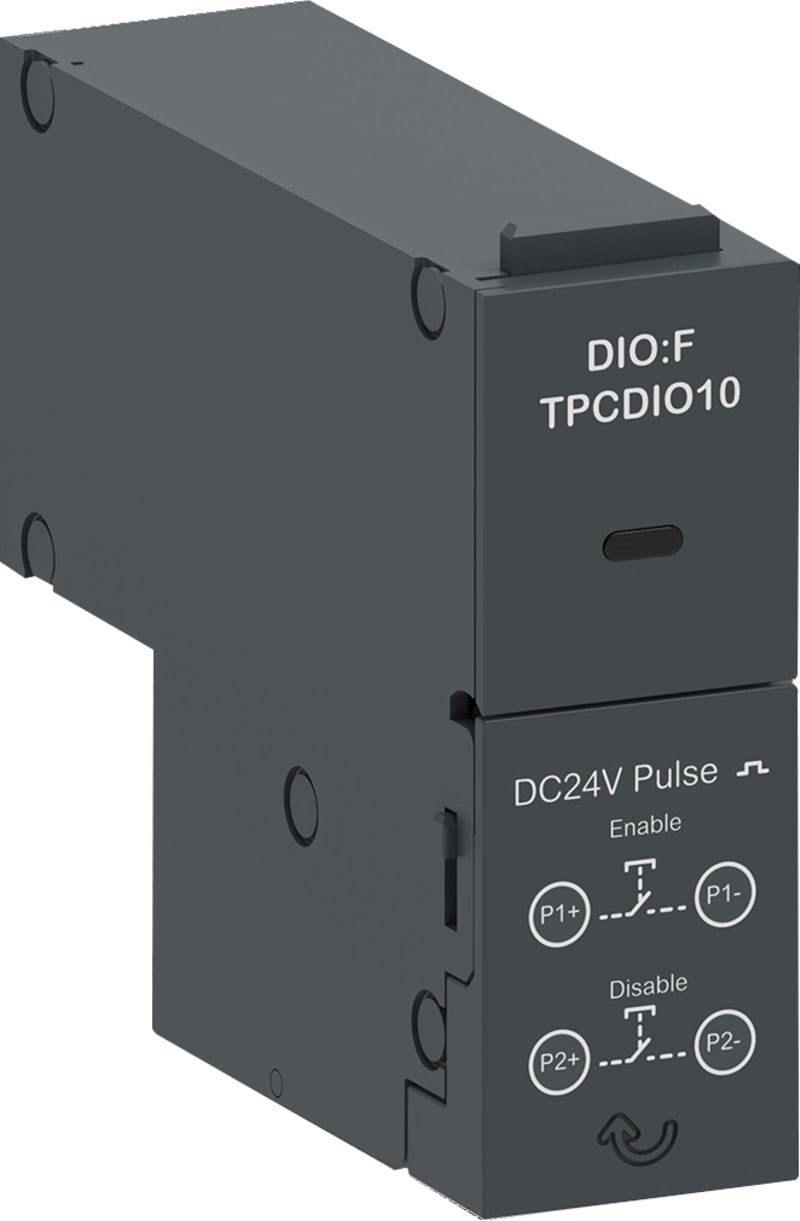

Schneider Electric function module, TransferPacT, Fire protection,24VDC pulse, input signal TPCDIO10
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric TPCDIO10 Function Module-TransferPacT-for switch-off of ATS(OFF) at fire-24VDC-10mA-pulse-input signal.
Technical Specifications
- Manufacturer part number (MPN)
- TPCDIO10
- EAN / GTIN
- 3606481066015
- Sales unit
- pcs
- Package quantity
- 20 pcs
- Range of product
- TransferPacT
- Product or component type
- I/O module
- Device application
- Signalling
- Auxiliary contact composition
- 2 NO
- Signalling function
- Fire protection (transfer to off position)
- Auxiliary connection terminal
- Screw clamp terminal 0.05…2.6 mm²
- mounting mode
- Plug-in
- Mounting position
- Left-bottom
- Maximum input current
- 10 mA 24 V DC +/- 20 %
- [Ui] rated insulation voltage
- 30 V DC
- Tightening torque
- 0.6 N.m +/- 0.1 N.m
- Height
- 56.5 mm
- Width
- 20 mm
- Depth
- 69 mm
- Product weight
- 40 g
- Accessory / separate part category
- Signalling accessory
- IP degree of protection
- IP20
- Pollution degree
- 3
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- CN
- Warranty (in months)
- 18
Cross References
- EAN 3606481066015
- SAP 1200586045
- Code 82956215
Product Documentation
More from Schneider Electric
Schneider Electric
Door cable compartment PrismaSeTG CABINET-IP30 15MOD
LVS08185
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB4, metal, orange flush mounted, 30mm, universal LED, plain lens, 1NO + 1NC, 230V AC XB4FW35M5
Schneider Electric
Jf.relay RH10M 380/415VAC 30MA
56140
Schneider Electric
UL Type 1 kit for ATV320 B
VW3A95819
Schneider Electric
NW 32 H1 3P Withdrawable
48312
Schneider Electric

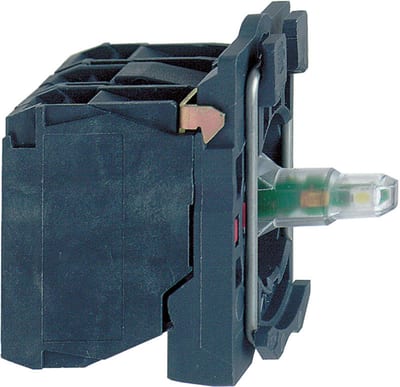

Schneider Electric Complete body/contact assembly and light block, Harmony XB5, plastic, universal LED, body/fixing collar, 1NO + 1NC, 24V AC DC ZB5AW0B15
Schneider Electric

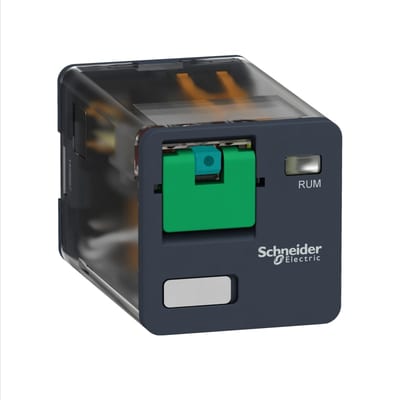

Schneider Electric universal plug-in relay - Harmony RUM - 3 C/O - 110 V DC - 10 A RUMC31FD
Schneider Electric

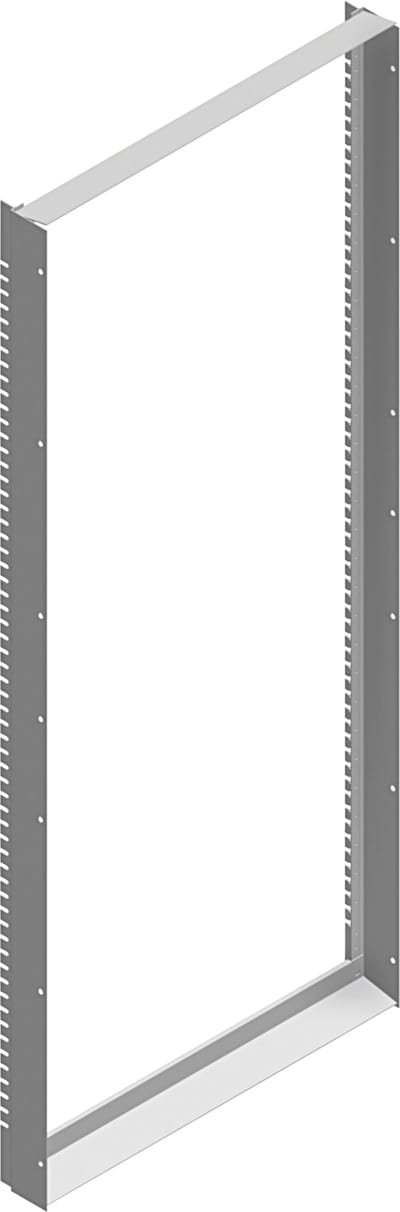

Modular frame 16X8 (NSYCSH168)
