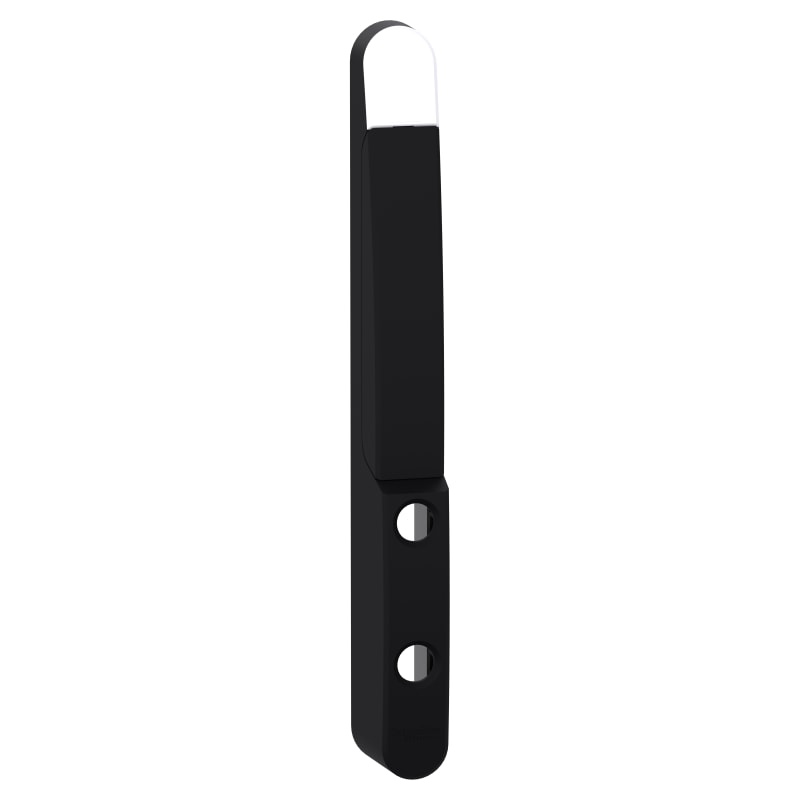

Schneider Electric NSYSFNHD3 PanelSeT SFN/SM Double Insert Door Handle Two Locks

Schneider Electric NSYSFNHD3 is a double insert door handle for the PanelSeT SFN and SM enclosure ranges, prepared to accept two locks for AND or OR functions. It mounts directly on the enclosure door and includes the fixing elements needed for installation. The handle body is polyamide 6 with 30% fibreglass reinforcement and a polycarbonate label frame.

Manufacturer part number (MPN)

NSYSFNHD3

EAN / GTIN

3606486377918

Sales unit

pcs

Package quantity

40 pcs

Range

PanelSeT

Product or component type

Handle

Accessory / separate part category

Locking accessory

Accessory / separate part type

Handle

Device application

Multi-purpose

Mounting support

Direct mounting on door

Range compatibility

PanelSeT PanelSeT SFN

Device composition

1 double insert handle; fixing elements; elements for AND and OR functions

Quantity per set

Set of 1

Material

Handle: polyamide 6 with 30 % fibre glass; Label frame: polycarbonate

Number of Units in Package 1

1

Number of Units in Package 2

40

Warranty (in months)

18

Padlock locking

No

Toggle

Yes

Type of handle

Wing knob

Type of closure

None

Espagnolette locking (3-point locking)

No

Country of origin

France

HS Code

7326.90

• EAN 3606486377918
• SAP 1200697939
• Code 83799752
