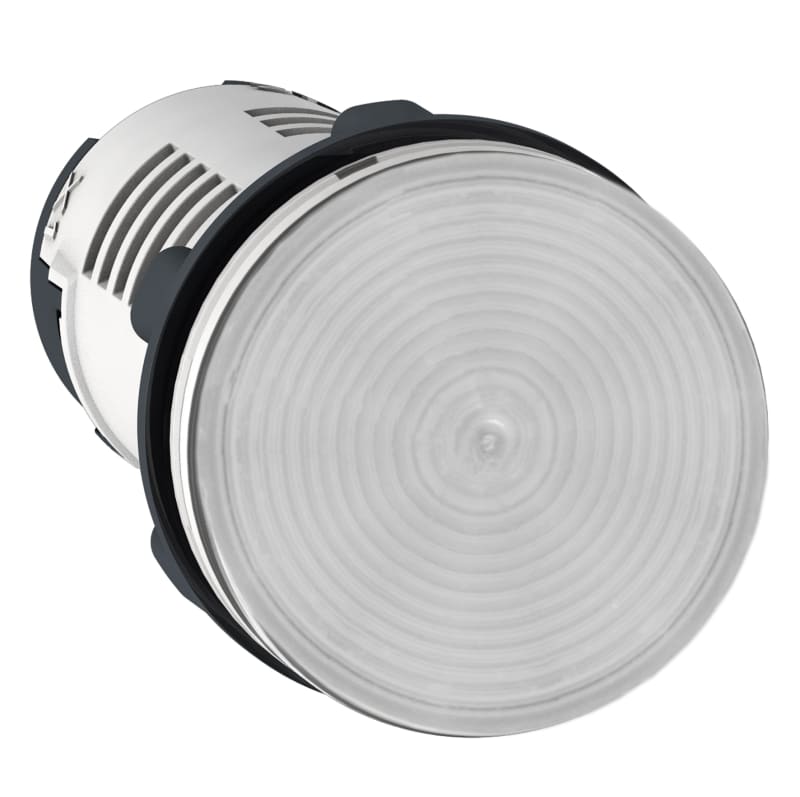

Schneider Electric Monolithic pilot light, Harmony XB7, plastic, clear, 22mm, integral LED, 230...240V AC XB7EV07MP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB7EV07MP Indicator lamp 230VAC LED IP65.
Technical Specifications
- Manufacturer part number (MPN)
- XB7EV07MP
- EAN / GTIN
- 3389119041249
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230 V AC
- IP rating
- IP65
- Range of product
- Harmony XB7
- Product or component type
- Pilot light
- Device short name
- XB7
- Mounting diameter
- 22 mm
- Sale per indivisible quantity
- 10
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Clear
- Light source
- LED
- Bulb base
- Integral LED
- [Us] rated supply voltage
- 230...240 V AC 50/60 Hz
- Device presentation
- Monolithic product
- Height
- 29 mm
- Width
- 29 mm
- Depth
- 54 mm
- Terminals description ISO n°1
- (X1-X2)PL
- Product weight
- 0.02 kg
- Device mounting
- Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1
- Fixing center
- >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
- Fixing mode
- Fixing nut beneath head: 2…2.4 N.m
- Connections - terminals
- Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1
- Tightening torque
- 0.8…1.2 N.m conforming to IEC 60947-1
- Shape of screw head
- Cross compatible with JIS No 1 screwdriver; Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver
- [Ui] rated insulation voltage
- 250 V (pollution degree 3) conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 6 kV conforming to IEC 60947-1
- Signalling type
- Steady
- Supply voltage limits
- 195…264 V AC
- Current consumption
- 16...20 mA
- Service life
- 70000 h at rated voltage and 25 °C
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…55 °C
- Overvoltage category
- Class II conforming to IEC 60536
- IP degree of protection
- IP20 (rear face) conforming to IEC 60529; IP65 (front face) conforming to IEC 60529
- Enclosure Type
- UL type 4/12
- Standards
- JIS C8201-5-1; CSA C22.2 No 14; IEC 60947-1; UL 508; IEC 60947-5-1; JIS C8201-1
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Electromagnetic compatibility
- Disturbing field emission class B conforming to IEC 55011
- Warranty (in months)
- 18
