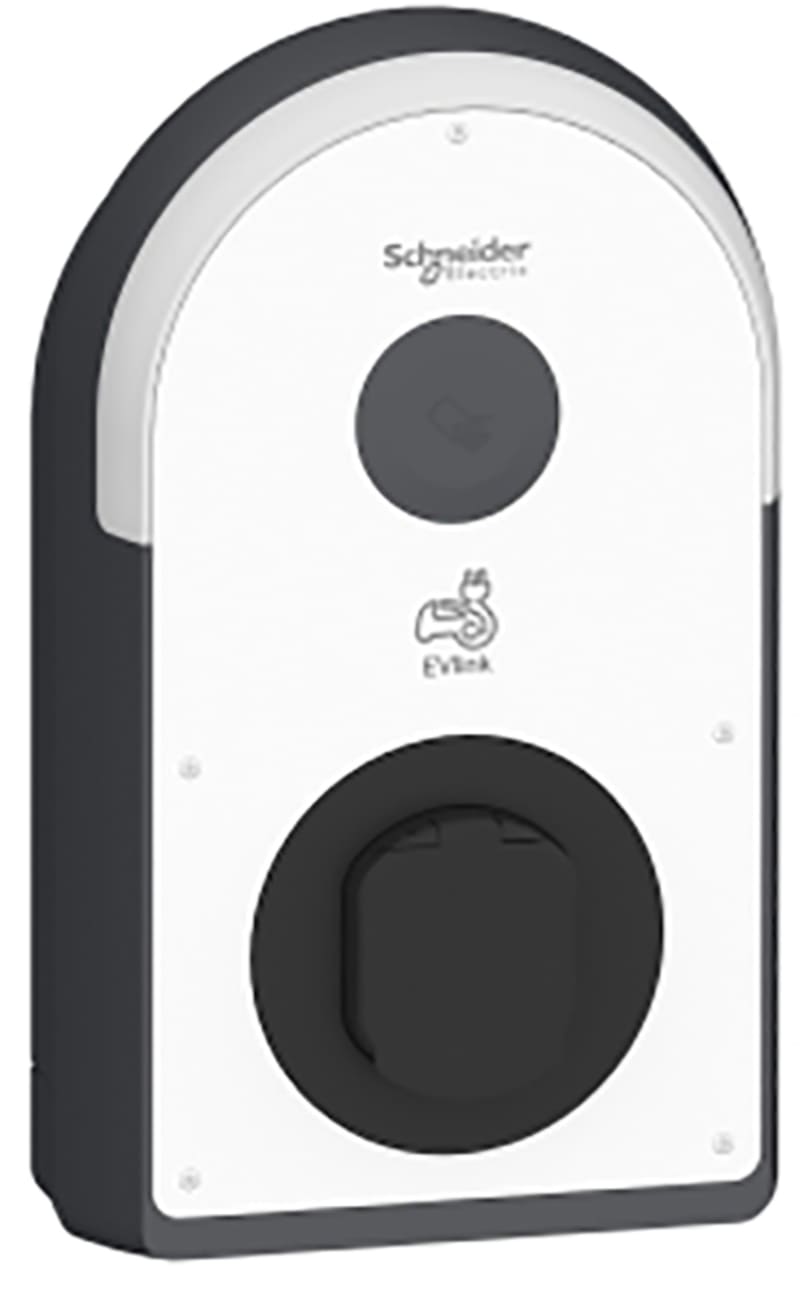

Schneider Electric Charging station, EVlink Pro AC Metal, 22kW, 32A, 3P+N, T2S socket-outlet, RCD B-EV, MNx aux., MID meter EVB3S22N40MR

Schneider Electric EVB3S22N40MR EVlink Pro AC, 22kW, T2S, MID, for metalladere.

Manufacturer part number (MPN)

EVB3S22N40MR

EAN / GTIN

3606482213173

Sales unit

pcs

Package quantity

2 pcs

Range

EVlink

Product name

EVlink Pro AC Metal

Product or component type

Charging station

Device short name

EVB3

Directives

2014/32/EU - measuring instruments directive (MID)

Communication network type

Ethernet; Bluetooth; 3G/4G modem optional; Modbus TCP

Connector type

2 RJ45 for Ethernet LAN connection

Communication port protocol

OCPP 1.6

Communication service

JSON smart charging for OCPP 1.6

Operating mode

Clustered architecture; Standalone

Function available

Diagnosis capabilities; Charge detail records; Load management

Range compatibility

EVlink EcoStruxure EV Charging Expert; EcoStruxure EcoStruxure EV Advisor

Type of installation

Indoor; Outdoor

Provided equipment

1 residual current device (RCD); 1 MNx auxiliary contact; 1 energy meter integrated; 1 MID meter integrated; 1 badge

Accuracy class of energy meter

Class 1

Protection device type

Residual current device (RCD)type B-EV (Electric Vehicle)

Poles description

3P + N for power circuit

Mounting mode

Wall-mounted (kit enclosure); Floor-standing (kit enclosure)

Mounting support

Kit enclosure, to be ordered separately

cable entry

Bottom entry; Top entry; Rear entry

[Us] rated supply voltage

380...415 V AC 50/60 Hz

Nominal output power

22 kW 32 A 380...415 V

Socket number

1

Output type

Front side T2 with shutter socket-outlet / silver plated contacts

Access control system

Badge RFID conforming to ISO/IEC 14443 A and B; Badge RFID conforming to ISO/IEC 15693; Badge NFC; Free access

RFID compatible technology

MIFARE Classic; MIFARE Ultralight; MIFARE Plus

NFC frequency

13.56 MHz

NFC tag type

Type 1; Type 2; Type 4; Type 5

Earthing system

TT; TN-S; TN-C-S; IT (single phase network only allowed, 400V 3 phases network forbidden)

Condition of use

3x230VAC (ph-ph) distribution forbidden

Number of inputs

3

Input type

Binary for power limitation closing contact; Binary for delayed charging closing contact; Binary for vehicle detection closing contact

Control type

can be controlled by remote

Local signalling

1 green LED light strip, function: available; 1 blue LED light strip, function: charging; 1 red LED light strip, function: fault indication

Standards

EN/IEC 61851-1:ed. 3; EN/IEC 62196-1:ed. 2; EN/IEC 62196-2:ed. 1; EN 61000-6-2:2019; EN 61000-6-3:2007; EN 61000-6-3:2011/A1; IEC 60884-1; NF C 61314; ISO 15118

Product certifications

EV Ready; CE

Operating altitude

2000 m without derating

Height

529 mm

Width

317 mm

Depth

153 mm

Product weight

7.2 kg

Colour

Front face: white (RAL 9003); Housing: dark grey (RAL 7016); Back part: black (RAL 9005)

IP degree of protection

IP55

IK degree of protection

IK10

Ambient air temperature for operation

-30…50 °C

Ambient air temperature for storage

-40…80 °C

Relative humidity

5…95 %

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

28.000 cm

Package 1 Width

35.500 cm

Package 1 Length

57.500 cm

Package 1 Weight

8.578 kg

Unit Type of Package 2

P06

Number of Units in Package 2

4

Package 2 Height

72.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

42.000 kg

Country of origin

FR

HS Code

8536.20
