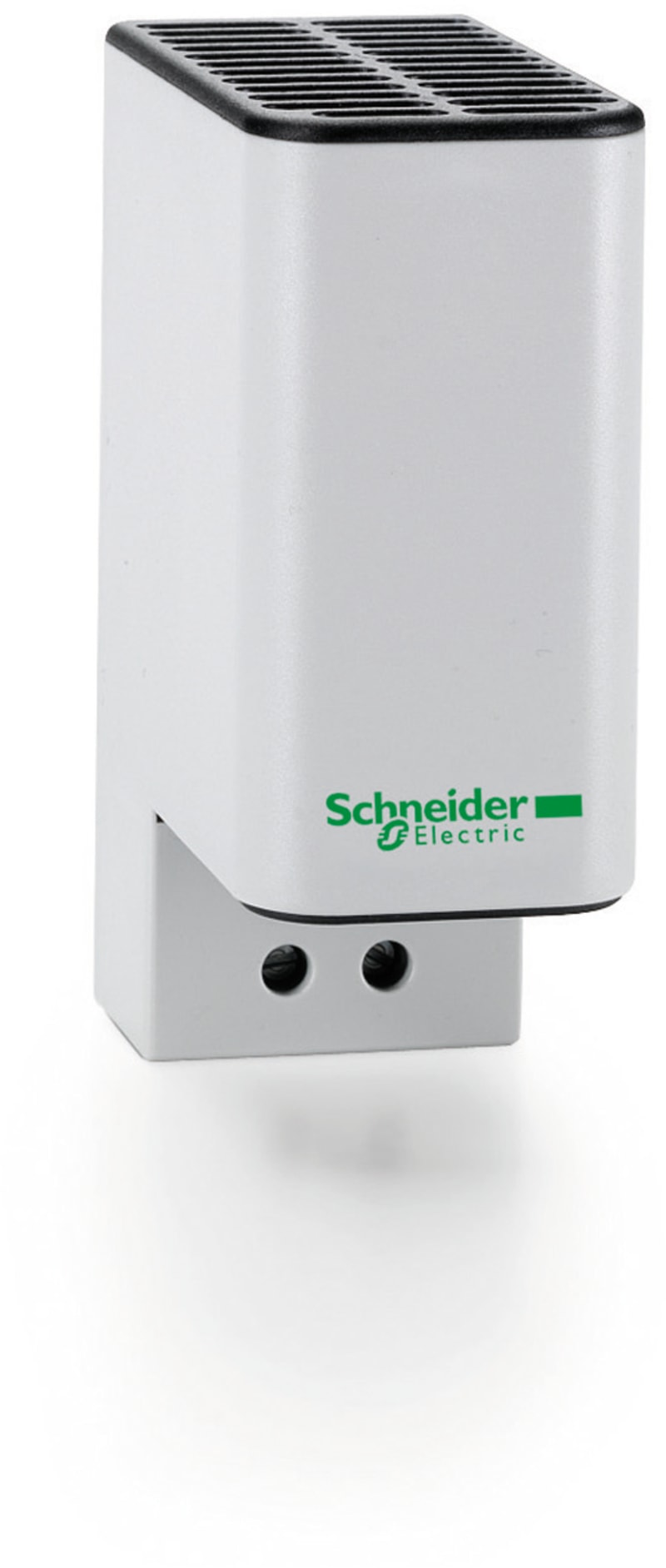

Schneider Electric ClimaSys PTC heating resistance 10W, 12-24V insulate NSYCR10WU1C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR10WU1C Heating element 10W 12-36V DC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR10WU1C
- EAN / GTIN
- 3606480152245
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 12-36 V
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 10 W
- Input voltage
- 12...24 V AC/DC 50/60 Hz
- Electrical connection
- 2 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Electrical insulation class
- Class II
- Product certifications
- VDE
- Material
- Body: extruded aluminium; Cover: plastic
- Height
- External: 98 mm
- Width
- External: 38 mm
- Depth
- External : 75 mm
- Condition of use
- Air sealed enclosure; Heaters must be installed with a thermal controller; Electrical protection is needed
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Country of origin
- DE
- Warranty (in months)
- 18
- Voltage type
- DC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 10 W
- Operating voltage DC
- 12–24 V
- Continuous heating power at 10 °C
- 10 W
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152245
- SAP 1000089006
- Code 8881542
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Trip unit MicroLogic Vigi 4.2, ComPacT NSX160/250, 3 poles, electronic basic and earth leakage protections, 160A rating C1634V160
Schneider Electric
Auxiliary contactat ATS-kilde in and kilde II
TPSAUX32
Schneider Electric
TERMINALS-4P-2X35MM2-LINERGY DP(Polyblock) (LVS04156)
Schneider Electric
Socket with switch 32A 2PJ 230V IP
83192
Schneider Electric
Schneider Electric PratiKa wander socket - straight - 16 A - 3P + N + E - 380...415 V AC - IP67 PKY16M735
Schneider Electric
Schneider Electric Power Cord, C19 to C20, 0.6M AP9892
Schneider Electric
FMP Sense Edition (FFS00702606NO)
Schneider Electric
End ferrule 2,5 mm² long
DZ5CE0253
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCR10WU1C?
- NSYCR10WU1C can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCR10WU1C.
- What is the HS code for NSYCR10WU1C?
- The customs tariff (HS) code for NSYCR10WU1C is 8516.29.
- Who manufactures NSYCR10WU1C?
- NSYCR10WU1C is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCR10WU1C?
- Yes — the NSYCR10WU1C datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCR10WU1C?
- The minimum order quantity is 1.
- Is NSYCR10WU1C available?
- Yes — NSYCR10WU1C is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
